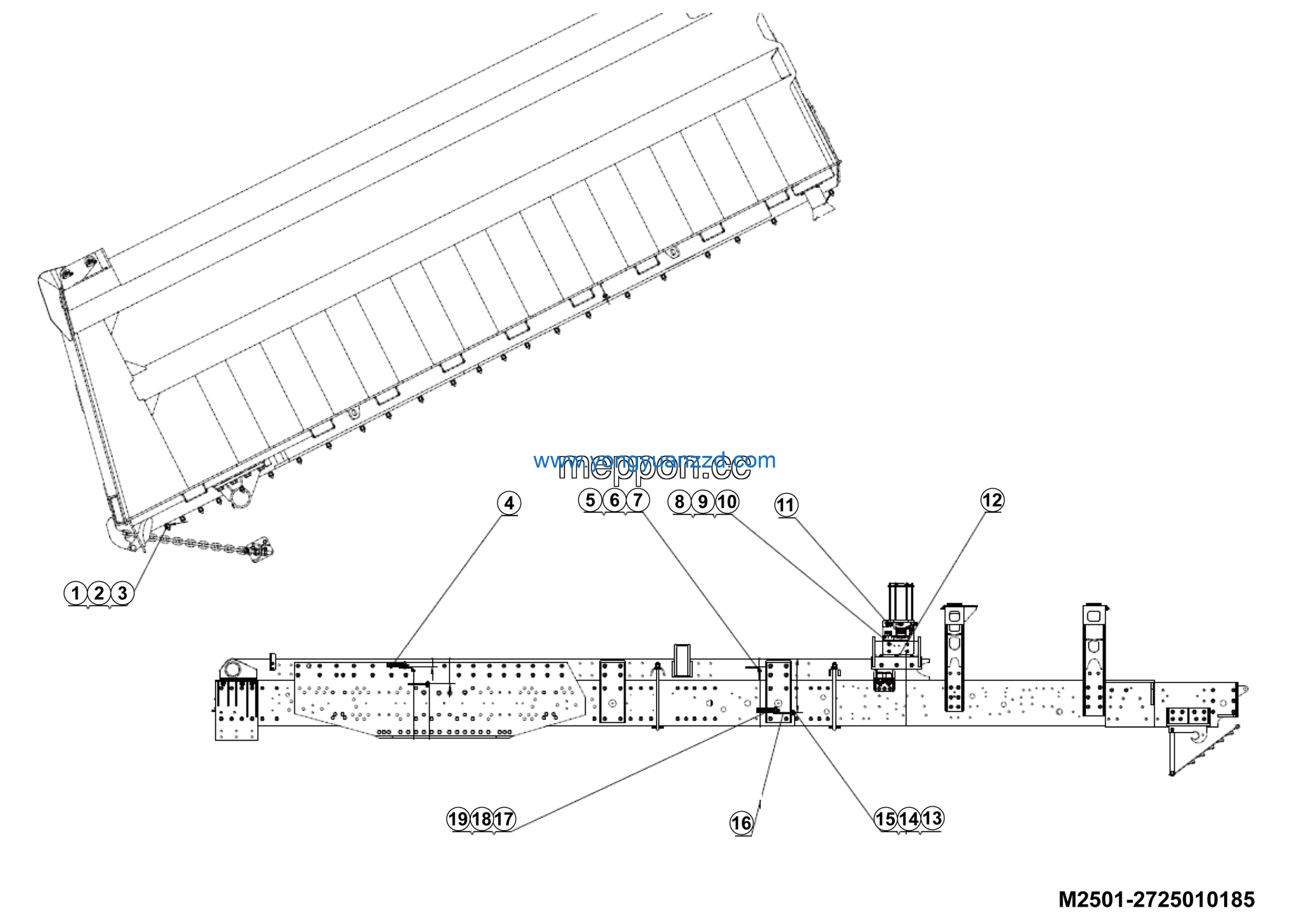

LGMG Off-Highway Dump Truck 2024 – Centralized lubrication system assy – M2501-2725010185
Category: 2024 > Off-Highway Dump Truck > CMT96 > C0960WG08
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 2 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 4 |
| 3 | Pump mounting plate | 27250101081 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-10.9 | 4011000763 | 5 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 7 | Plate | 27250101032 | 2 |
| 8 | Nut GB6185.1-M6EpZn-8 | 4013010117 | 4 |
| 9 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 10 | Bolt GB5782-M6*55EpZn-8.8 | 4011010517 | 4 |
| 11 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 23 |
| 12 | Washer GB97.1-8EpZn-300HV | 4015000072 | 23 |
| 13 | Cable tie HS-J117 | 4130704969 | 23 |
| 14 | Progressive centralized lubrication system for 28 lubrication points | 4120711966-001 | 1 |
| 15 | Washer GB97.1-8-300HV | 4015000315 | 4 |
| 16 | Plate | 27250101281 | 2 |
| 17 | Bolt GB5783-M8*20-8.8 | 4011000723 | 4 |
| 18 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 19 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
