LGMG Off-Highway Dump Truck 2024 – Chassis elec sys – K2000-2720017353.S1A
Category: 2024 > Off-Highway Dump Truck > MT106 > M106HW3A0M380

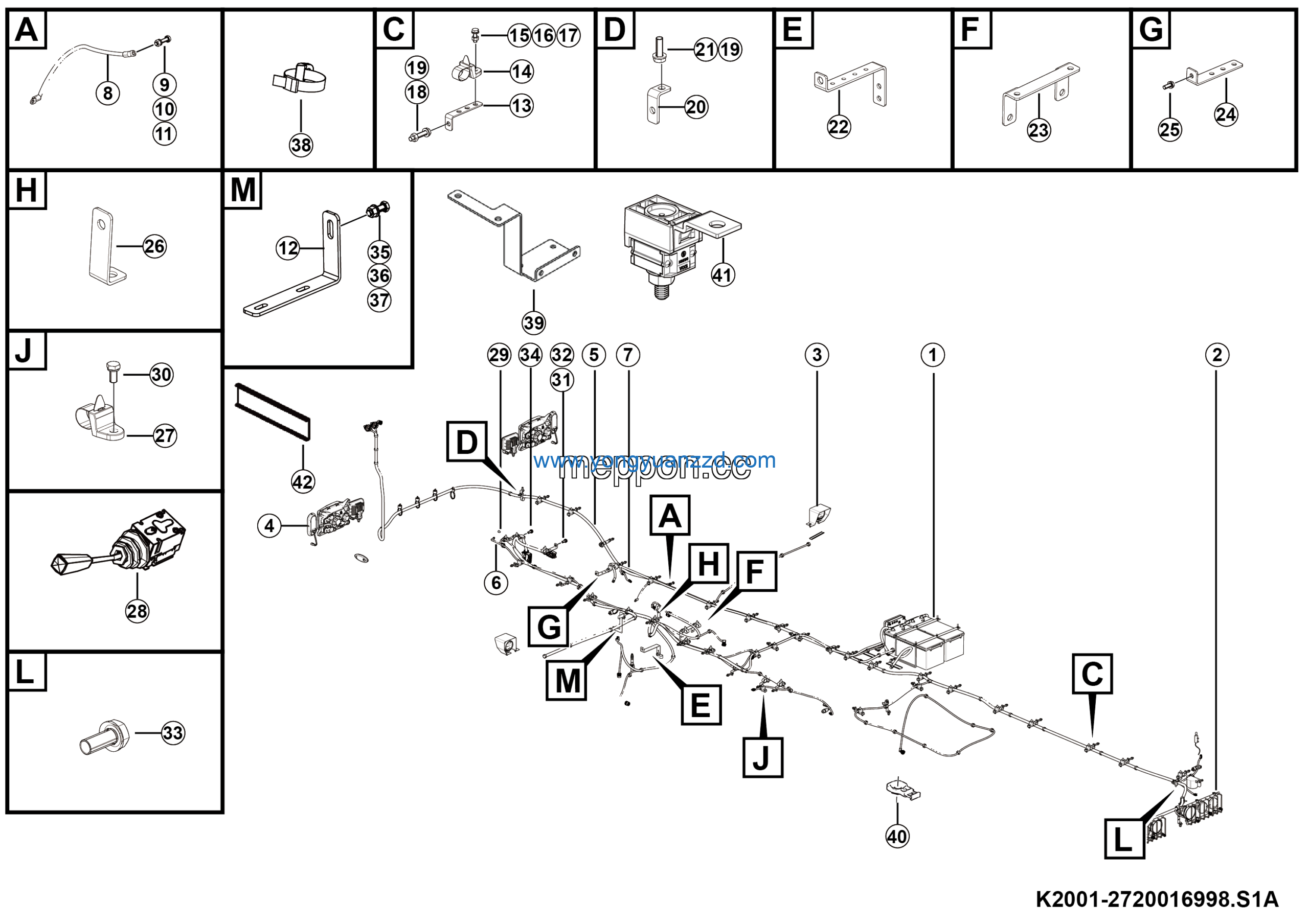

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB862.2-10-65Mn | 4015010586 | 4 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 91 |
| 3 | Plate | 27030144401 | 1 |
| 4 | Holder | 27200147051 | 40 |
| 5 | Cable tie HS-J117 | 4130704969 | 32 |
| 6 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 6 |
| 7 | Washer GB97.1-8EpZn-300HV | 4015000072 | 7 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 9 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 21 |
| 10 | Washer GB97.1-10EpZn-300HV | 4015000162 | 88 |
| 11 | Battery box elec module | 27200173541 | 1 |
| 12 | Holder | 27200142321 | 1 |
| 13 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 11 |
| 14 | Plate | 27110113212 | 1 |
| 15 | Bracket99 | 27200145242 | 1 |
| 16 | Plate | 27340111291 | 2 |
| 17 | Bolt GB5783-M8*20-8.8 | 4011000723 | 1 |
| 18 | Plate | 27200149451 | 1 |
| 19 | Cable tie 14400342 | 4130703098 | 18 |
| 20 | Exhaust brake switch | 4130000701 | 1 |
| 21 | Nylon cap nut M8 | 4130705735 | 2 |
| 22 | System | 27200147141 | 1 |
| 23 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 4 |
| 24 | Bolt GB5783-M6*20EpZn-8.8 | 4011000101 | 1 |
| 25 | Washer GB96.1-6EpZn-300HV | 4015000198 | 1 |
| 26 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 12 |
| 27 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 42 |
| 28 | Bolt GB5783-M12*60EpZn-8.8 | 4011000284 | 1 |
| 29 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 30 | Nut GB6170-M12EpZn-8 | 4013000011 | 1 |
| 31 | Nylon large tie strap HS-J118 | 4130705870 | 1 |
| 32 | Generator power cord bracket 190*183*154 | 27200173781 | 1 |
| 33 | Electrical module in the middle of the chassis | 27200147161 | 1 |
| 34 | Clip spring 14400370 | 4130703099 | 1 |
| 35 | Fuse holder SBM-BT-100A | 4130712751 | 1 |
| 36 | Cable protector | 27140108701 | 1 |
| 37 | System | 27200152221 | 1 |
| 38 | Frame harness | 27200174181 | 1 |
| 39 | Generator power cable p25-8*8*5500-1.8 | 27200174171 | 1 |
| 40 | LINE | 2720014737-004 | 1 |
| 41 | LINE | 2720014752-004 | 1 |
| 42 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 1 |
