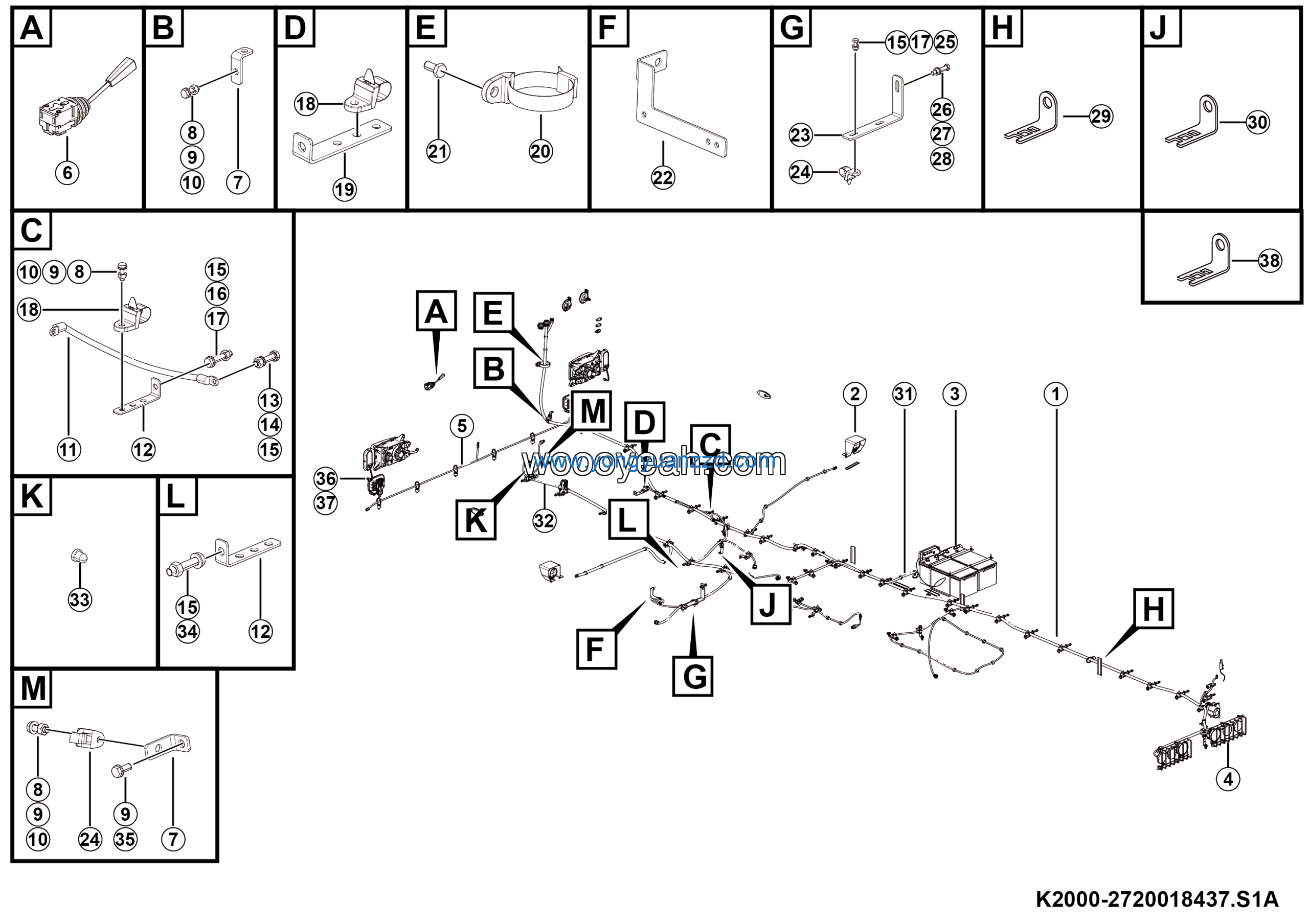

LGMG Off-Highway Dump Truck 2024 – Chassis elec sys – K2000-2720018437.S1A
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HY3A0M038
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 34 |
| 2 | START MOTOR GROUNDING WIRE | 2720014816-001 | 1 |
| 3 | Holder | 27200147051 | 28 |
| 4 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 1 |
| 5 | Washer GB862.2-10-65Mn | 4015010586 | 2 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 46 |
| 7 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 25 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 46 |
| 9 | Cable tie HS-J117 | 4130704969 | 27 |
| 10 | Engine fixing bracket 150*30*35 | 27200167061 | 1 |
| 11 | Frame harness | 27200184381 | 1 |
| 12 | Nylon large tie strap HS-J118 | 4130705870 | 1 |
| 13 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 14 | Fuel filter harness bracket 161*125*53 | 27200175342 | 1 |
| 15 | Plate | 27030144401 | 1 |
| 16 | Cable tie 14400342 | 4130703098 | 6 |
| 17 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 11 |
| 18 | Bolt GB5782-M12*60EpZn-8.8 | 4011000260 | 1 |
| 19 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 20 | Nut GB6170-M12EpZn-10 | 4013000150 | 1 |
| 21 | 90 ° dip plastic bracket 47.4 * 33.4 * 2.3 | 27340119441 | 1 |
| 22 | Electrical module in the middle of the chassis | 2720014716-001 | 1 |
| 23 | 90 ° dip plastic bracket 47.4 * 33.4 * 2.3 | 2734011944-001 | 16 |
| 24 | Starter motor wire P95-10*10*4200-2.5 | 27200177951 | 1 |
| 25 | Generator power cable p25-8*8*5300-1.8 | 27200176161 | 1 |
| 26 | Nylon cap nut M8 | 4130705735 | 1 |
| 27 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 8 |
| 28 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 29 | Fuse holder SBM-BT-100A | 4130712751 | 1 |
| 30 | Fuse ATS-20A | 4130000378 | 1 |
| 31 | 90 ° dip plastic bracket 47.4 * 33.4 * 2.3 | 27340119541 | 1 |
| 32 | Battery box elec module | 27200158481 | 1 |
| 33 | System | 27200147141 | 1 |
| 34 | System | 27200152221 | 1 |
| 35 | Exhaust brake switch | 4130000701 | 1 |
| 36 | Holder | 27200142321 | 1 |
| 37 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 30 |
| 38 | Washer GB97.1-8EpZn-300HV | 4015000072 | 33 |
