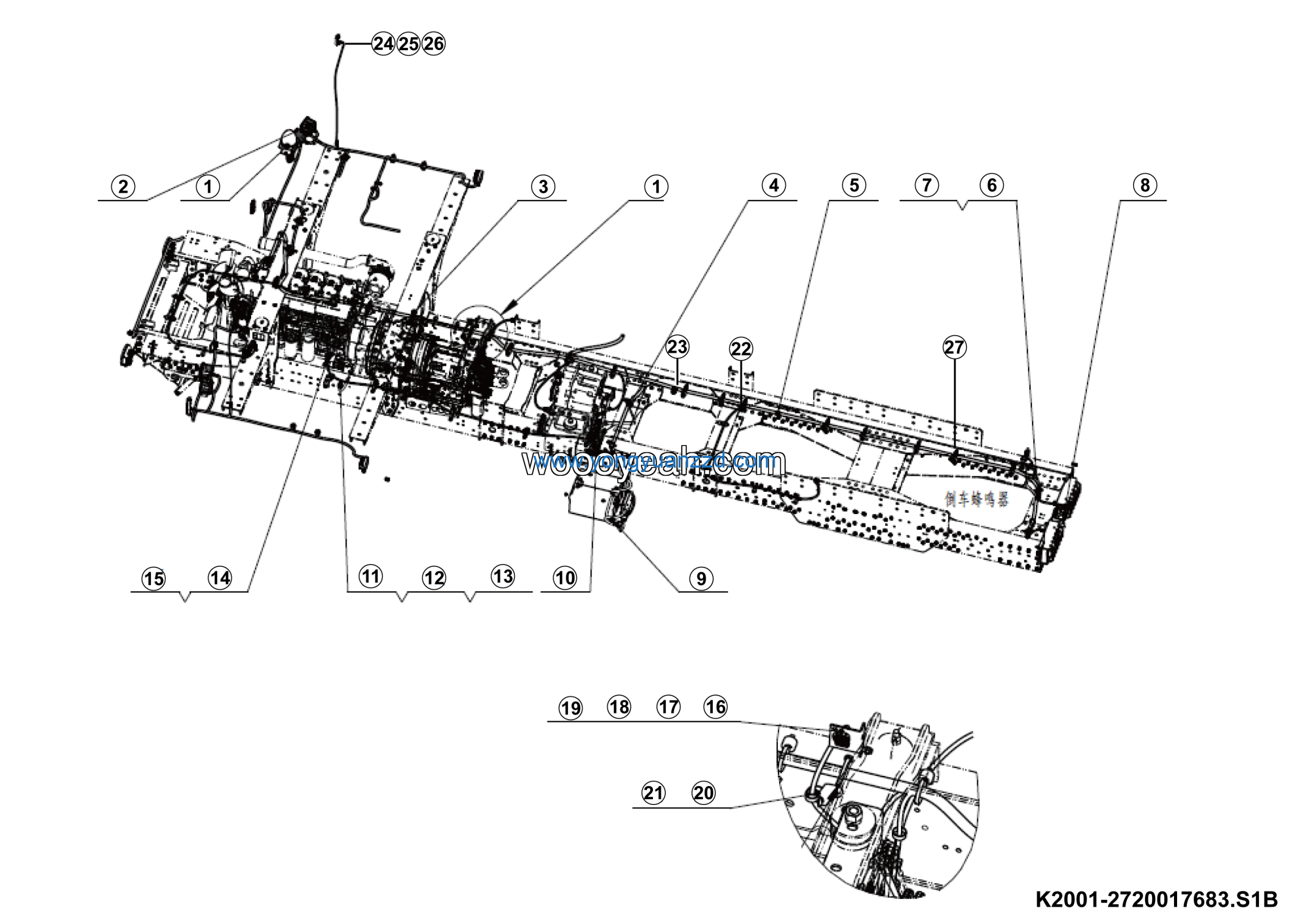

LGMG Off-Highway Dump Truck 2024 – Chassis elec sys – K2001-2720017683.S1B
Category: 2024 > Off-Highway Dump Truck > CMT66A > C066AW3E0A005
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | MIDDLE CHASSIS ELECTRICAL MODULE | 2720014036-001 | 1 |
| 2 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 3 | Washer GB862.2-10-65Mn | 4015010586 | 2 |
| 4 | WIRE P70*550 | 2720011146-001 | 1 |
| 5 | Battery wire P70*3900 | 2720010655-029 | 1 |
| 6 | Red battery cable sheath | 26370002451 | 1 |
| 7 | Plate | 27200153941 | 1 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 9 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 10 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 1 |
| 11 | Caution light | 27130135651 | 1 |
| 12 | Cable tie 14400342 | 4130703098 | 2 |
| 13 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 2 |
| 14 | Harness fixing point assy M10*35 | 2720015422-002 | 1 |
| 15 | Harness fixing point assy M10*35 | 2720015422-001 | 2 |
| 16 | Plate | 27200153201 | 1 |
| 17 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 18 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 19 | Harness fixing point assy m10*45 | 27200154241 | 5 |
| 20 | Plate | 27200140321 | 1 |
| 21 | Harness fixing point assy m10*35 | 27200154221 | 12 |
| 22 | System | 27200145871 | 2 |
| 23 | Frame harness | 27200176521 | 1 |
| 24 | Nut GB6170-M10EpZn-8 | 4013000007 | 5 |
| 25 | System | 27200144171 | 3 |
| 26 | Tail signal module | 27200166341 | 1 |
| 27 | Battery box elec module | 27200175571 | 1 |
