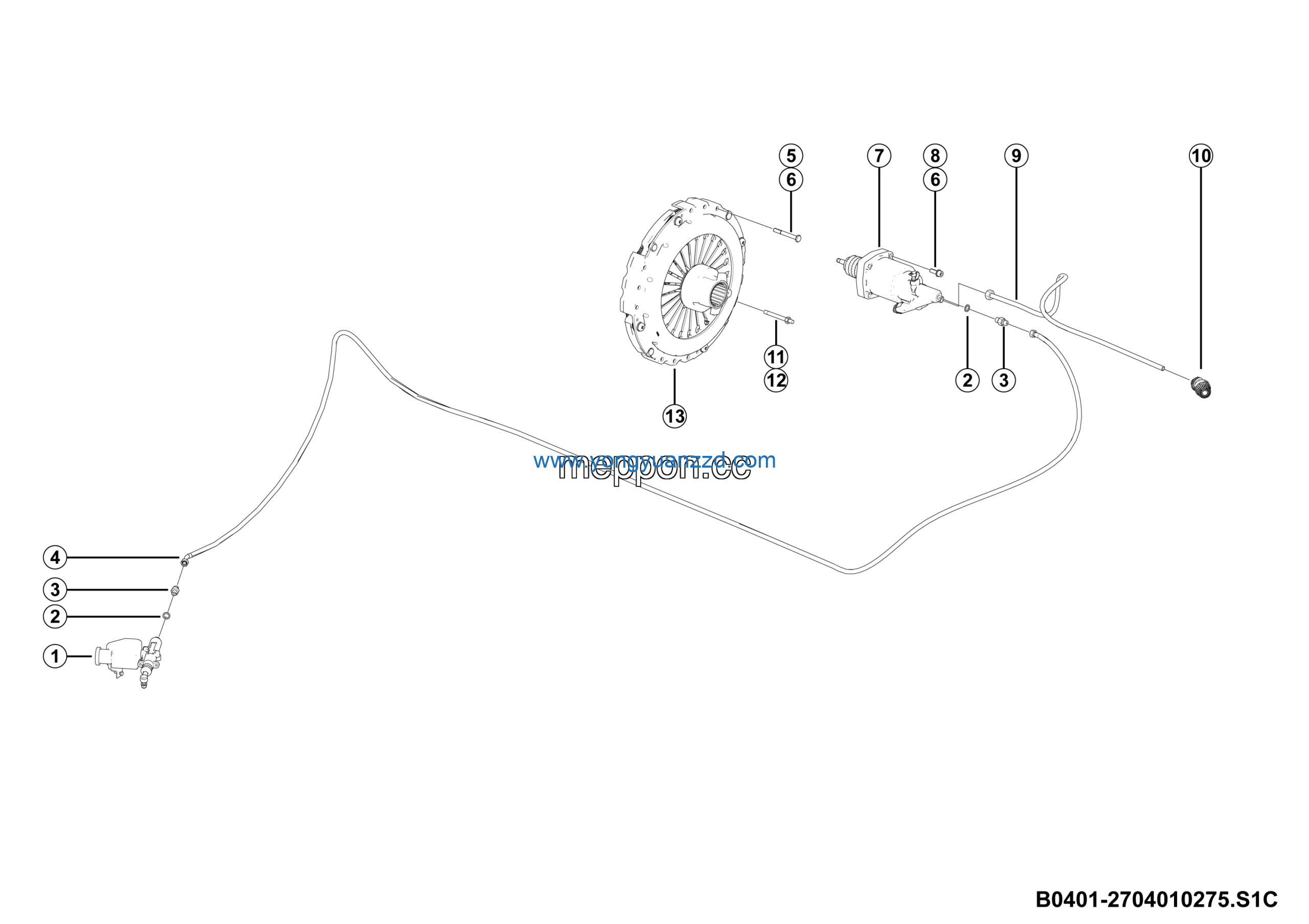

LGMG Off-Highway Dump Truck 2024 – Clutch assembly ceramic 430 involute spline – B0401-2704010275.S1C
Category: 2024 > Off-Highway Dump Truck > MT96L > M096LW4A0M053
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Breathing cap | 4120001137 | 1 |
| 2 | STUD GB899-M10*90EpZn-8.8 | 4012000005 | 2 |
| 3 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 4 | Clutch assy (Involute spline) 2500N.m 260 | 4110707108 | 1 |
| 5 | Clutch main pump | 4120000140 | 1 |
| 6 | Washer JB982-14 | 4015000121 | 2 |
| 7 | Joint | 27040101651 | 2 |
| 8 | SINGLE 45 DEGREE ELBOW HOSE | 2704010271-002 | 1 |
| 9 | Bolt GB5782-M10*85EpZn-8.8 | 4011010016 | 10 |
| 10 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 11 | Clutch cylinder | 4120001136 | 1 |
| 12 | Screw GB70.1-M10*30EpZn-8.8 | 4014000134 | 4 |
| 13 | HOSE ASSEMBLY | 2704010162-001 | 1 |
