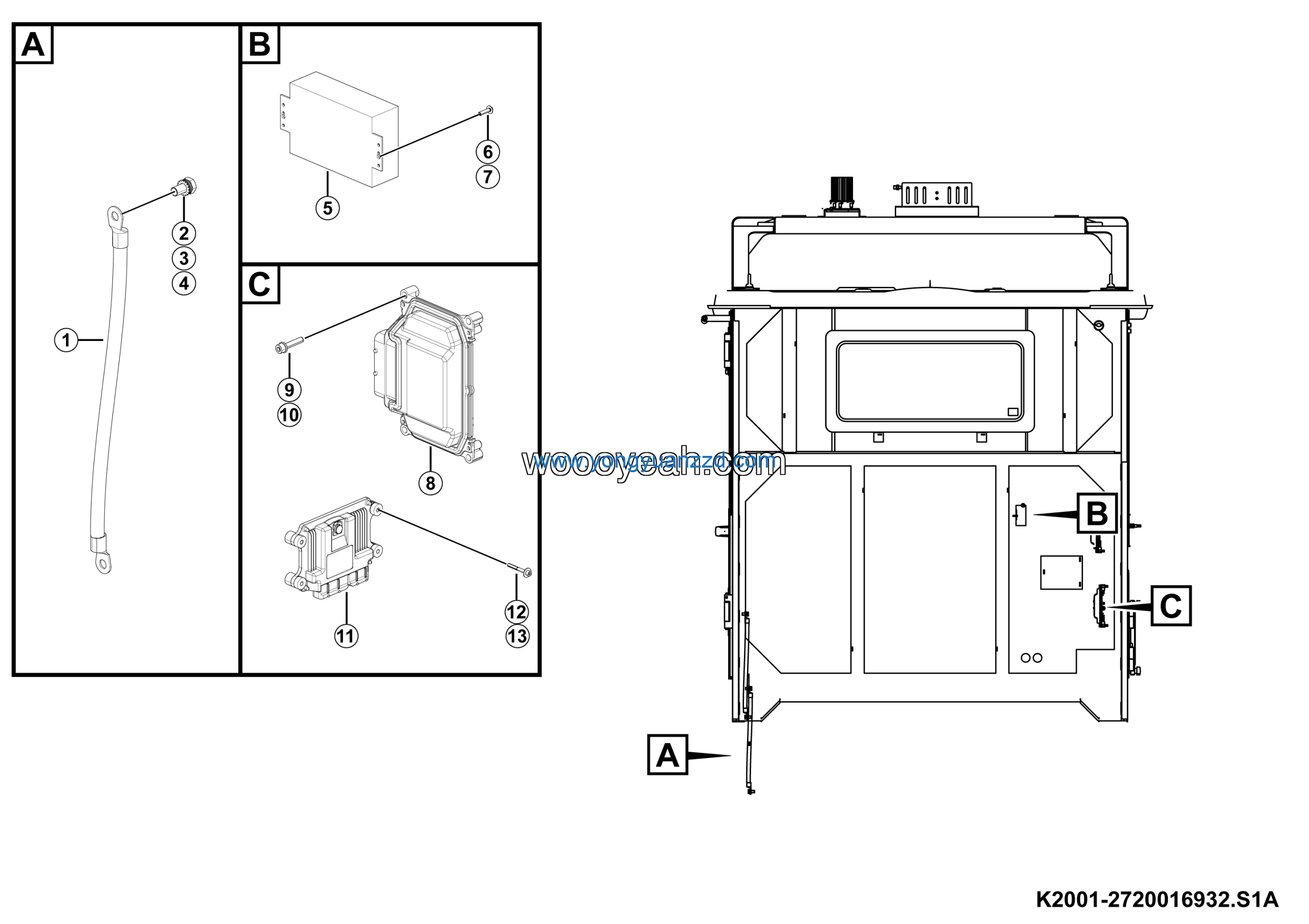

LGMG Off-Highway Dump Truck 2024 – Control assy – K2001-2720016932.S1A
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A304
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 2 | Vehicle Controller VECU | 4130704605 | 1 |
| 3 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 4 | Screw GB70.1-M6*50EpZn-8.8 | 4014010019 | 4 |
| 5 | Earthing wire P50-10*10*600-1.8 | 2734011570-013 | 1 |
| 6 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 7 | Double sack wedge lock washer HF10 | 4190708409 | 2 |
| 8 | Washer GB862.2-10-65Mn | 4015010586 | 2 |
| 9 | AE64-FDT TBOX | 4130712887 | 1 |
| 10 | Screw GB818-M4*16EpZn-4.8 | 4014000087 | 2 |
| 11 | Washer GB97.1-4EpZn-300HV | 4015000135 | 2 |
| 12 | Gear shift controller 223623006 | 4130712615 | 1 |
| 13 | Screw GB70.1-M6*30EpZn-10.9 | 4014000153 | 4 |
