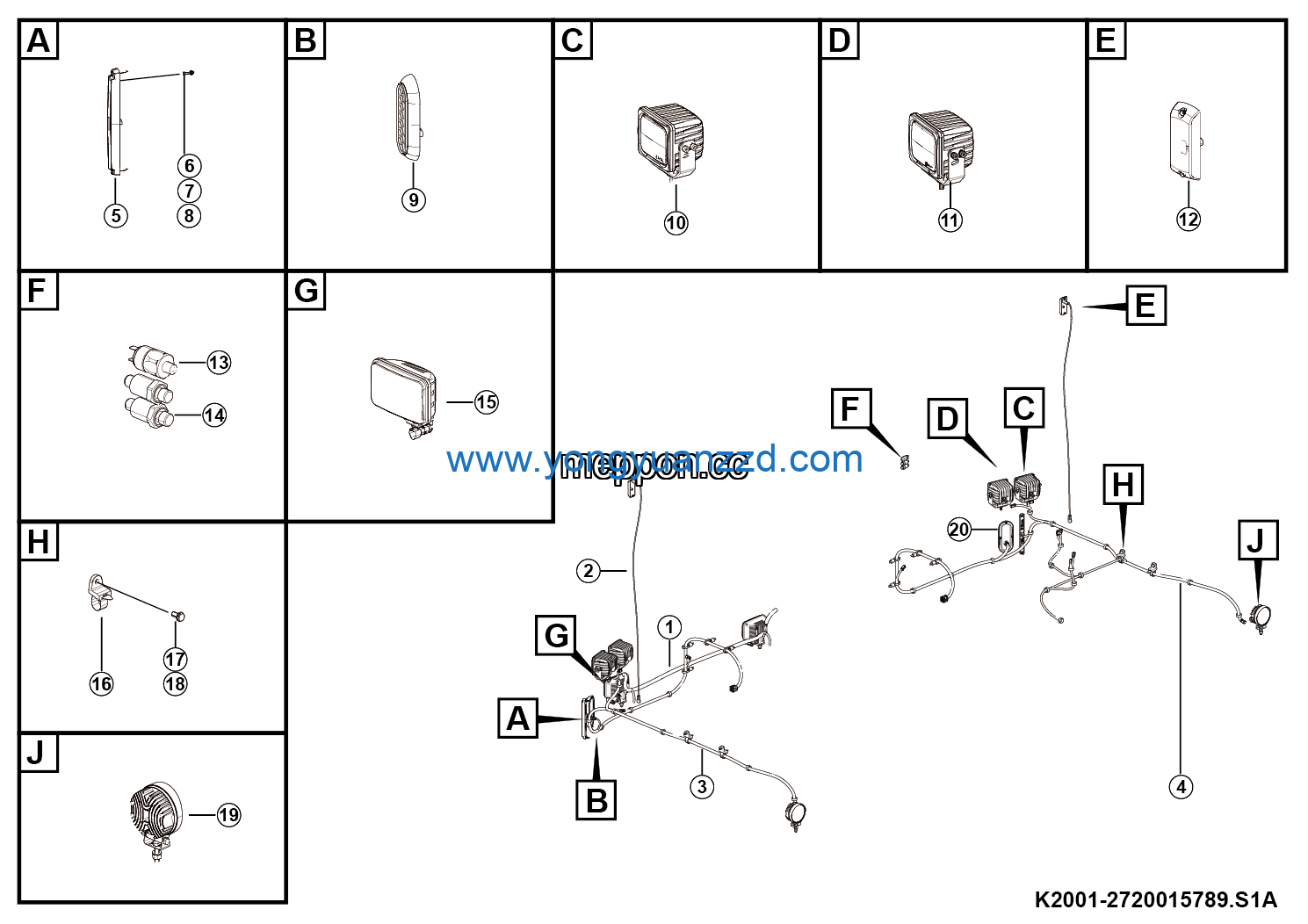

LGMG Off-Highway Dump Truck 2024 – Cover electrical module – K2001-2720015789.S1A
Category: 2024 > Off-Highway Dump Truck > CMT106F > C1060W4E0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Floodlamp work lamp WK-55HL（3312040210） | 4130001152 | 2 |
| 2 | Spotlamp work lamp WK-55HL（3312040131） | 4130001153 | 2 |
| 3 | SMG-011 Side marker lamp 3112040324 | 4130001148 | 2 |
| 4 | Stop lamp switch YK209KLA | 4130000492 | 1 |
| 5 | Air pressure sensor YG2221SLN | 4130000990 | 2 |
| 6 | LED Fog lamp SM6053（three pin plug） | 4130000921 | 2 |
| 7 | Cable tie 14400342 | 4130703098 | 4 |
| 8 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 4 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 10 | LED Floodlamp SM6272 | 4130000610 | 2 |
| 11 | Cmt fog lamp | 27200106591 | 1 |
| 12 | Fagging | 27130123361 | 2 |
| 13 | Wire | 27200107861 | 2 |
| 14 | Left platform harness | 27200157941 | 1 |
| 15 | Right platform harness | 27200157951 | 1 |
| 16 | Daytime running lamp | 4130001212 | 2 |
| 17 | Bolt GB5783-M4*20EpZn-8.8 | 4011000615 | 16 |
| 18 | Washer GB97.1-4EpZn-300HV | 4015000135 | 16 |
| 19 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 16 |
| 20 | Third generation turn signal DI-621 | 4130705210 | 2 |
