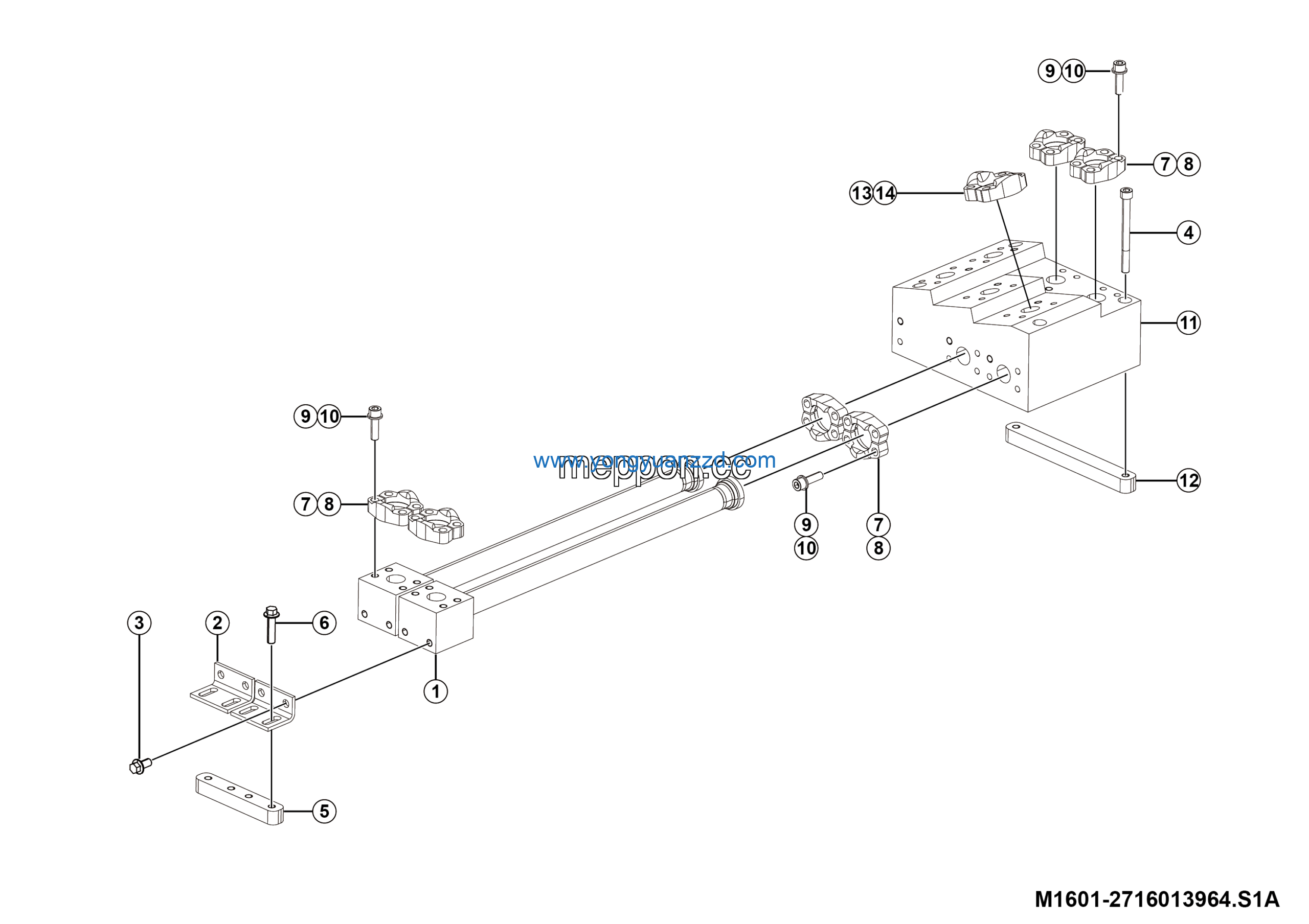

LGMG Off-Highway Dump Truck 2024 – Diversion valve block assembly – M1601-2716013964.S1A
Category: 2024 > Off-Highway Dump Truck > AT40 > A0400W3M0A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 48 |
| 2 | Transition block 255*210*115 | 27160139652 | 1 |
| 3 | Silk plate 2*m10*230*25*20 | 27160139661 | 1 |
| 4 | Split flange LGB117-312551 | 4041000027 | 6 |
| 5 | O-ring GB3452.1-37.5*3.55G | 4030000029 | 6 |
| 6 | Steel pipe assembly | 27160127081 | 2 |
| 7 | Bracket 1 | 27160127111 | 2 |
| 8 | Bolt GB16674.1-M10*20flZnyc-8.8-480 | 4011010993 | 4 |
| 9 | Screw gb70.1-m10*130epzn-10.9 | 4014000148 | 4 |
| 10 | Silk plate m10*43*33*43 | 27160140161 | 1 |
| 11 | Bolt GB16674.1-M10*40flZnyc-8.8-480 | 4011011086 | 4 |
| 12 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 6 |
| 13 | Split flange LGB117-310491 | 4041000026 | 6 |
| 14 | Screw GB70.1-M10*35flZnyc-10.9-480 | 4014010288 | 48 |
