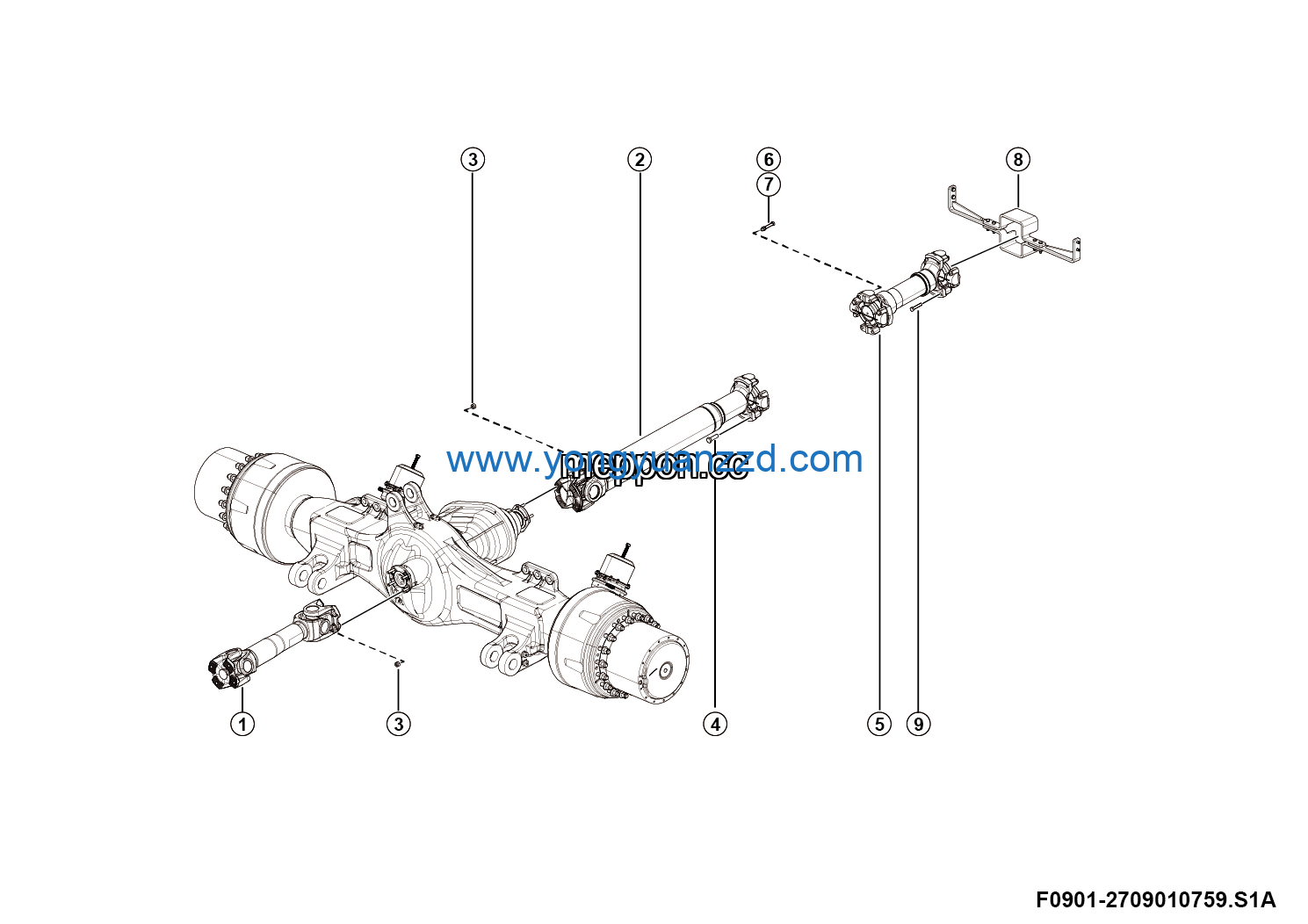

LGMG Off-Highway Dump Truck 2024 – Drive shaft installation – F0901-2709010759.S1A
Category: 2024 > Off-Highway Dump Truck > RT100 > R1000W3A2A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | RR transmission shaft LG09-HCDZ-745 | 4110706790 | 1 |
| 2 | RR drive shaft assy LG09-HCDZ-1190 (1880) | 4110707280 | 1 |
| 3 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 12 |
| 4 | Bolt 5/8-18*2（Allison AT6620 output flange） | 4110706658 | 8 |
| 5 | FR transmission shaft LG09-QCDZ-505-9C | 4110706584 | 1 |
| 6 | Bolt GB5786-M12*1.5*75flZnyc-12.9-480 | 4011011693 | 4 |
| 7 | Nut GB6185.2-M12*1.5flZnyc-12-480 | 4013010260 | 4 |
| 8 | Drive shaft protection installation | 27090107651 | 1 |
| 9 | Bolt GB5783-M12*60flZnyc-12.9-480 | 4011011681 | 4 |
