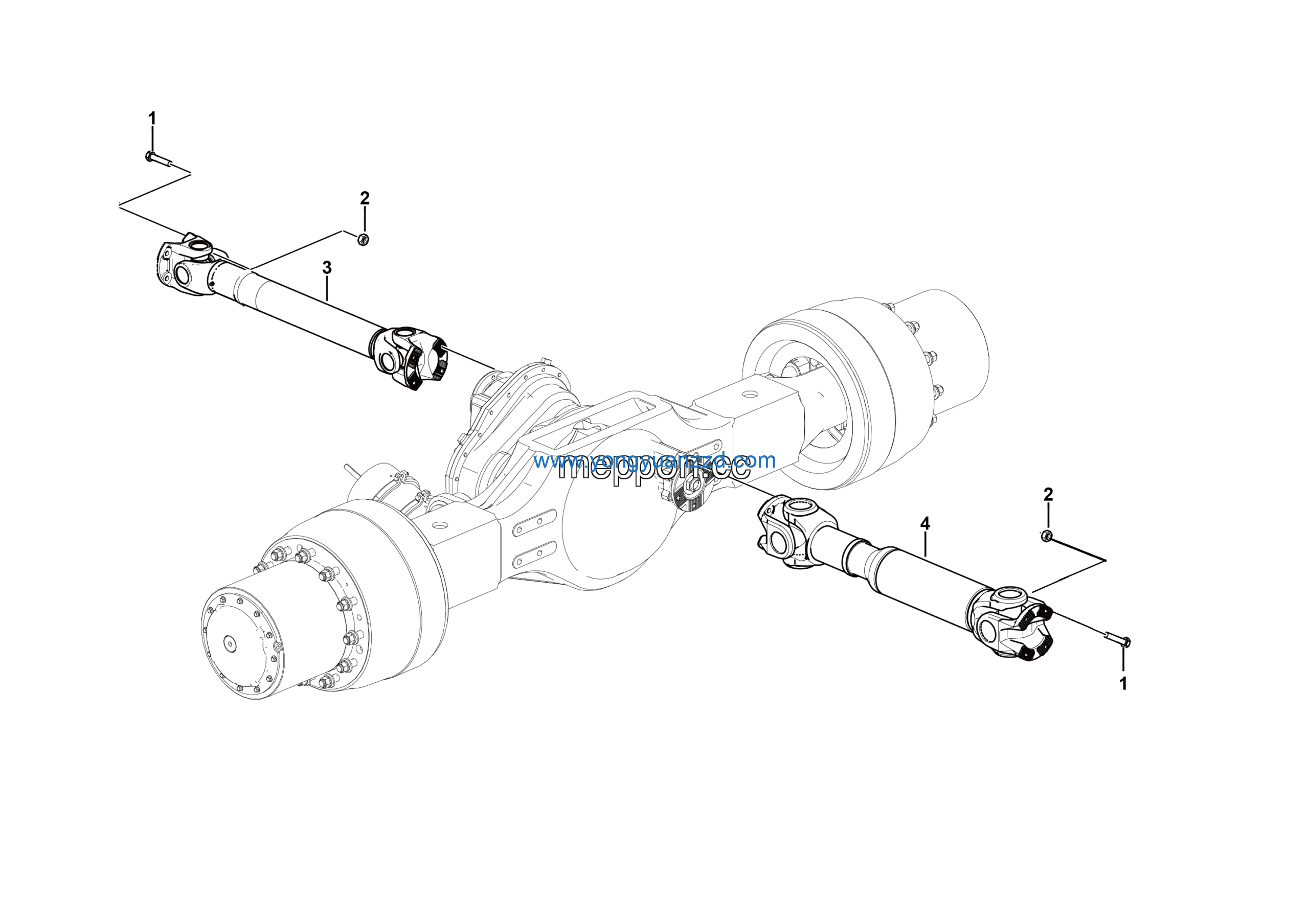

LGMG Off-Highway Dump Truck 2024 – Drive shaft mounting assy – F0901-2709010584
Category: 2024 > Off-Highway Dump Truck > MT86H > M086HWG28
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5785-M14*1.5*55flZnyc-12.9-480 | 4011011613 | 8 |
| 2 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 16 |
| 3 | FR transmission shaft 2200NM-1700 | 4110703253 | 1 |
| 4 | RR trabsmission shaft | 4110000186 | 1 |
