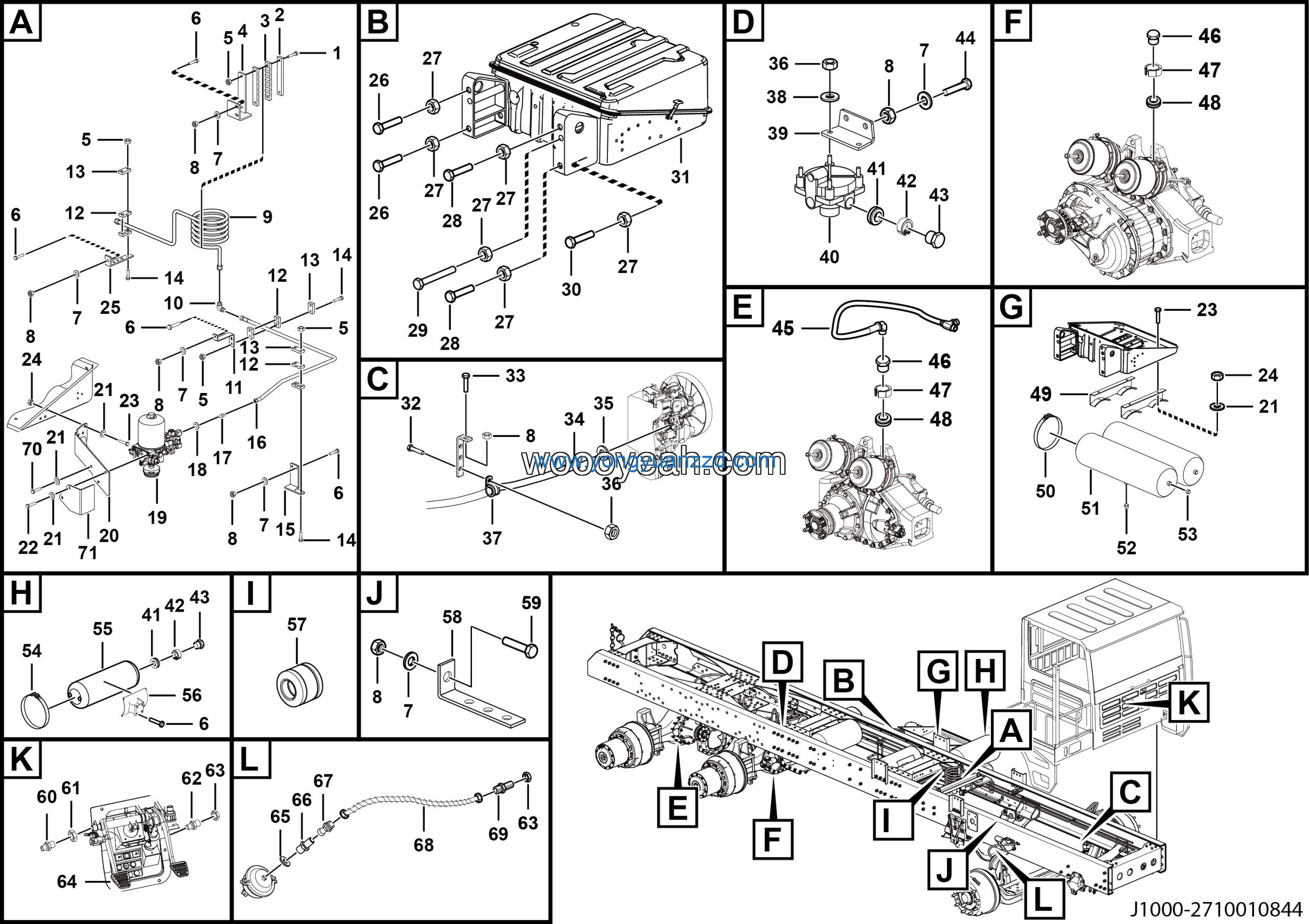

LGMG Off-Highway Dump Truck 2024 – Driving brake assy – J1000-2710010844
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500WA06
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | M22-M22 Rectangular joint | 27100105931 | 1 |
| 2 | Frame | 27100106051 | 1 |
| 3 | Rubber fixed chunk | 27100104181 | 6 |
| 4 | Fixed plate | 27100104191 | 3 |
| 5 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 6 |
| 6 | Bracket | 27100105772 | 1 |
| 7 | Pipe assembly | 27100106092 | 1 |
| 8 | M22-m22 rectangular connector | 27100100691 | 1 |
| 9 | Washer JB982-22 | 4015000092 | 1 |
| 10 | Air Handling unit | 4120001086 | 1 |
| 11 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 12 | Plate | 27100107051 | 1 |
| 13 | Washer GB97.1-12EpZn-300HV | 4015000168 | 10 |
| 14 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 3 |
| 15 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 7 |
| 16 | Nut GB6170-M12EpZn-8 | 4013000011 | 7 |
| 17 | Steel tube support | 27100105871 | 2 |
| 18 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 2 |
| 19 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 8 |
| 20 | Bolt GB5783-M16*50EpZn-10.9 | 4011000742 | 2 |
| 21 | Bolt GB5782-M16*200EpZn-10.9 | 4011010020 | 2 |
| 22 | Platen | 27100105742 | 1 |
| 23 | Bolt GB5783-M16*40EpZn-10.9 | 4011000545 | 2 |
| 24 | Battery box assy | 4190002306 | 1 |
| 25 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 1 |
| 26 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 27 | Wired hose | 27100107751 | 1 |
| 28 | Washer | 27010100552 | 1 |
| 29 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 30 | Clamp | 27100107611 | 1 |
| 31 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 32 | Plate | 27100106031 | 1 |
| 33 | Rubber clip | 27100105751 | 2 |
| 34 | Relay valve | 4120000137 | 1 |
| 35 | Clip spring NG8 | 4120000196 | 1 |
| 36 | Elastic element NG8 | 4120000197 | 1 |
| 37 | Nut seat NG8 | 4120000194 | 1 |
| 38 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 2 |
| 39 | Air brake pipe assy | 4120000941 | 1 |
| 40 | Nut seat NG12 | 4120000190 | 14 |
| 41 | Elastic element NG12 | 4120000193 | 14 |
| 42 | Clip spring NG12 | 4120000192 | 14 |
| 43 | Plate | 27100104461 | 2 |
| 44 | Plate | 27100105811 | 1 |
| 45 | Hose clamp φ246-φ250 | 4120000177 | 4 |
| 46 | Air reservoir 40L | 4120000359 | 2 |
| 47 | Drain valve | 4120000200 | 3 |
| 48 | Plug NG12-M22*1.5 | 4120000201 | 2 |
| 49 | Hose clamp φ275-φ280 | 4120000178 | 2 |
| 50 | Air reservoir 30L（275） | 4120000142 | 1 |
| 51 | Frame | 27100105961 | 1 |
| 52 | Fagging | 27140108681 | 1 |
| 53 | Bracket 1 | 27100103561 | 4 |
| 54 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 55 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 56 | Straight bulkhead joint NG6/2-M16*1.5 | 4120000233 | 2 |
| 57 | Thin nut M16*1.5 | 4120000234 | 2 |
| 58 | M14-NPT1/8 bulkhead union | 27100106211 | 1 |
| 59 | Nut M18 | 4120000230 | 5 |
| 60 | Foot brake valve | 4120000133 | 1 |
| 61 | Washer JB982-16 | 4015000141 | 2 |
| 62 | CONNECTOR | 27100100661 | 2 |
| 63 | Combination joint LGB143-01810 | 4041001063 | 2 |
| 64 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 65 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 66 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 11 |
| 67 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 2 |
| 68 | Guard plate | 27100107411 | 1 |
| 69 | Washer GB97.1-10EpZn-300HV | 4015000162 | 15 |
| 70 | Nut GB6170-M10EpZn-8 | 4013000007 | 11 |
| 71 | Pipe assembly | 27100106081 | 1 |
