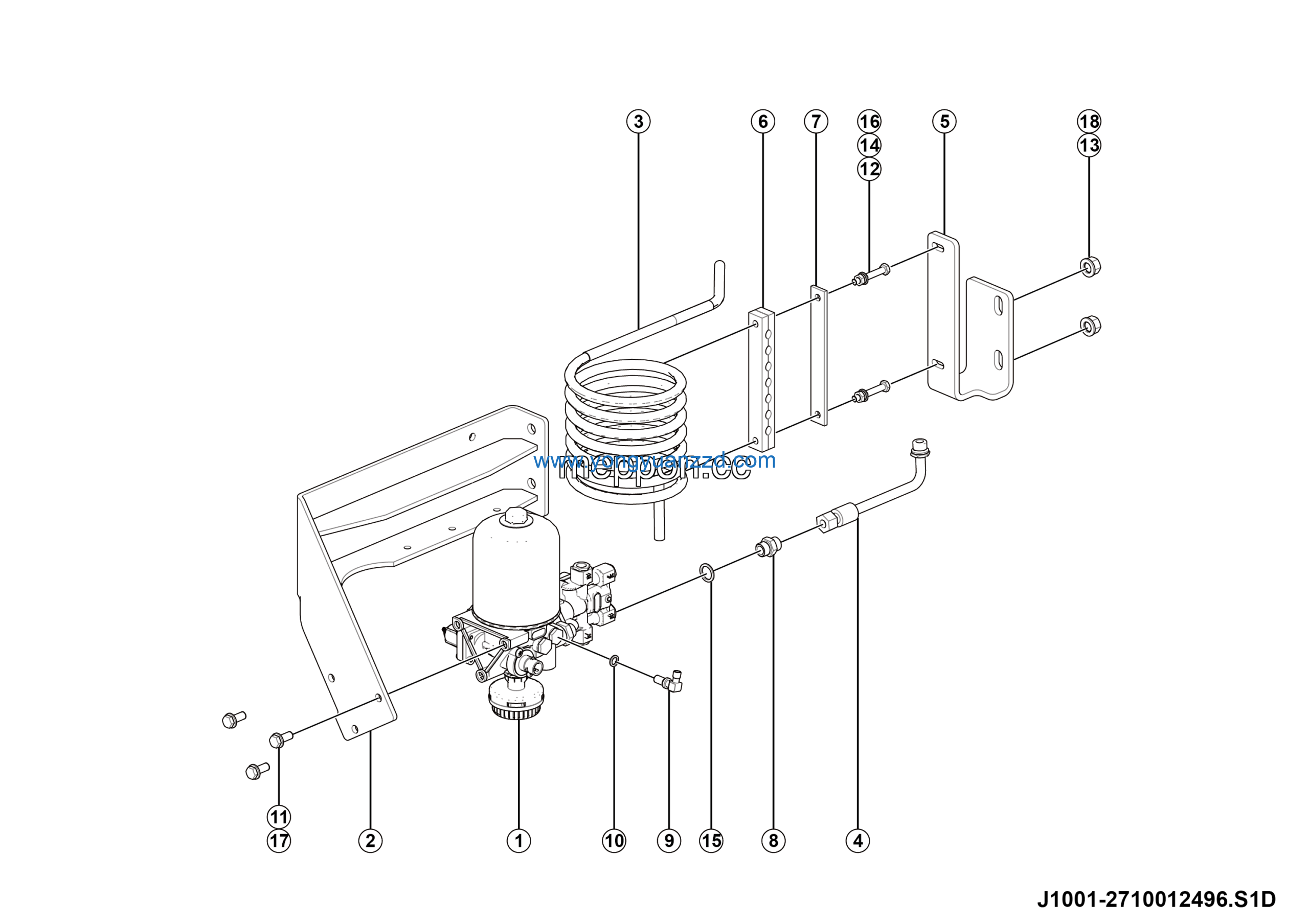

LGMG Off-Highway Dump Truck 2024 – Dryer assy – J1001-2710012496.S1D
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M418
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer JB982-12 | 4015000327 | 1 |
| 2 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 3 |
| 3 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 4 | Nut GB6170-M16EpZn-8 | 4013000016 | 2 |
| 5 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 6 | Washer JB982-22 | 4015000092 | 1 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 9 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 10 | Air Handling unit | 4120001482 | 1 |
| 11 | Plate | 27100120971 | 1 |
| 12 | Spiral steel pipe | 27100124971 | 1 |
| 13 | Steel braided hose-220 (high resilience) | 27100131041 | 1 |
| 14 | Plate | 27100120931 | 1 |
| 15 | Rubber clip | 27100108841 | 2 |
| 16 | Plate | 27100108872 | 1 |
| 17 | M22-m22 rectangular connector | 27100100691 | 1 |
| 18 | Joint m12-m12 | 27100104301 | 1 |
