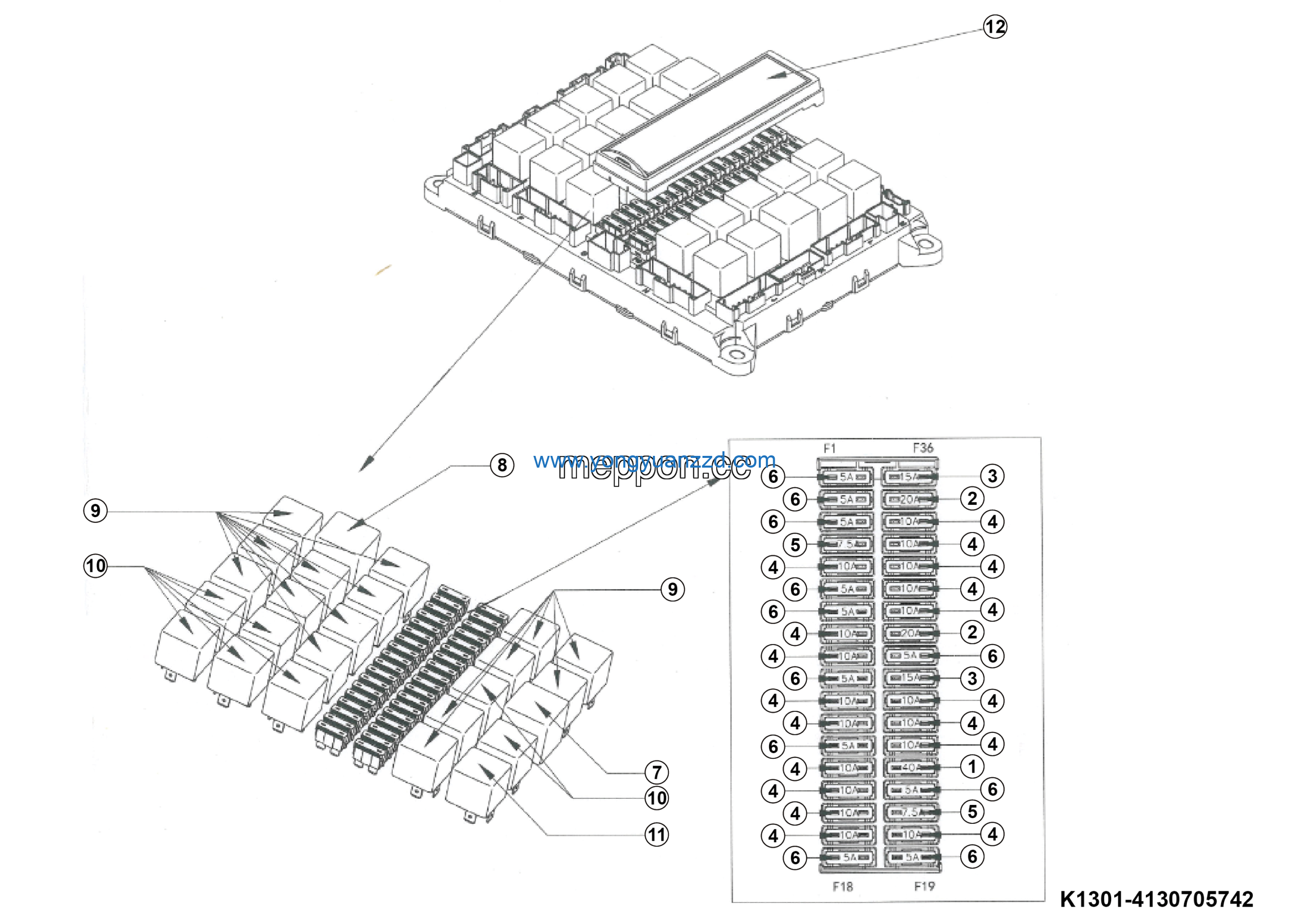

LGMG Off-Highway Dump Truck 2024 – Elec box kzh-24v-002a (10161) – K1301-4130705742
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M405
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Relay HHZ024-1Z1GD2-60 | 4130001017 | 7 |
| 2 | Normally open relay hhz 024-1h1gd2-60-cc | 4130704494 | 1 |
| 3 | Fuse cover kzh24v002a | 4130712874 | 1 |
| 4 | Fuse ANS-40A | 4130000391 | 2 |
| 5 | Fuse ATS-20A | 4130000378 | 3 |
| 6 | Fuse ATS-15A | 4130000377 | 3 |
| 7 | Fuse ATS-10A | 4130000376 | 20 |
| 8 | Fuse ats-7.5a | 4130705751 | 3 |
| 9 | Fuse ATS-5A | 4130000375 | 12 |
| 10 | Wiper Intermittent Controller H35017-M | 4130001013 | 1 |
| 11 | Flasher HHZ H35018-F | 4130001014 | 1 |
| 12 | Normally open relay HHZ 024-1H1GD2-60 | 4130001016 | 15 |
