LGMG Off-Highway Dump Truck 2024 – Elec drive elec sys – K3401-2734012219.S1B
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1000Y3A0A104

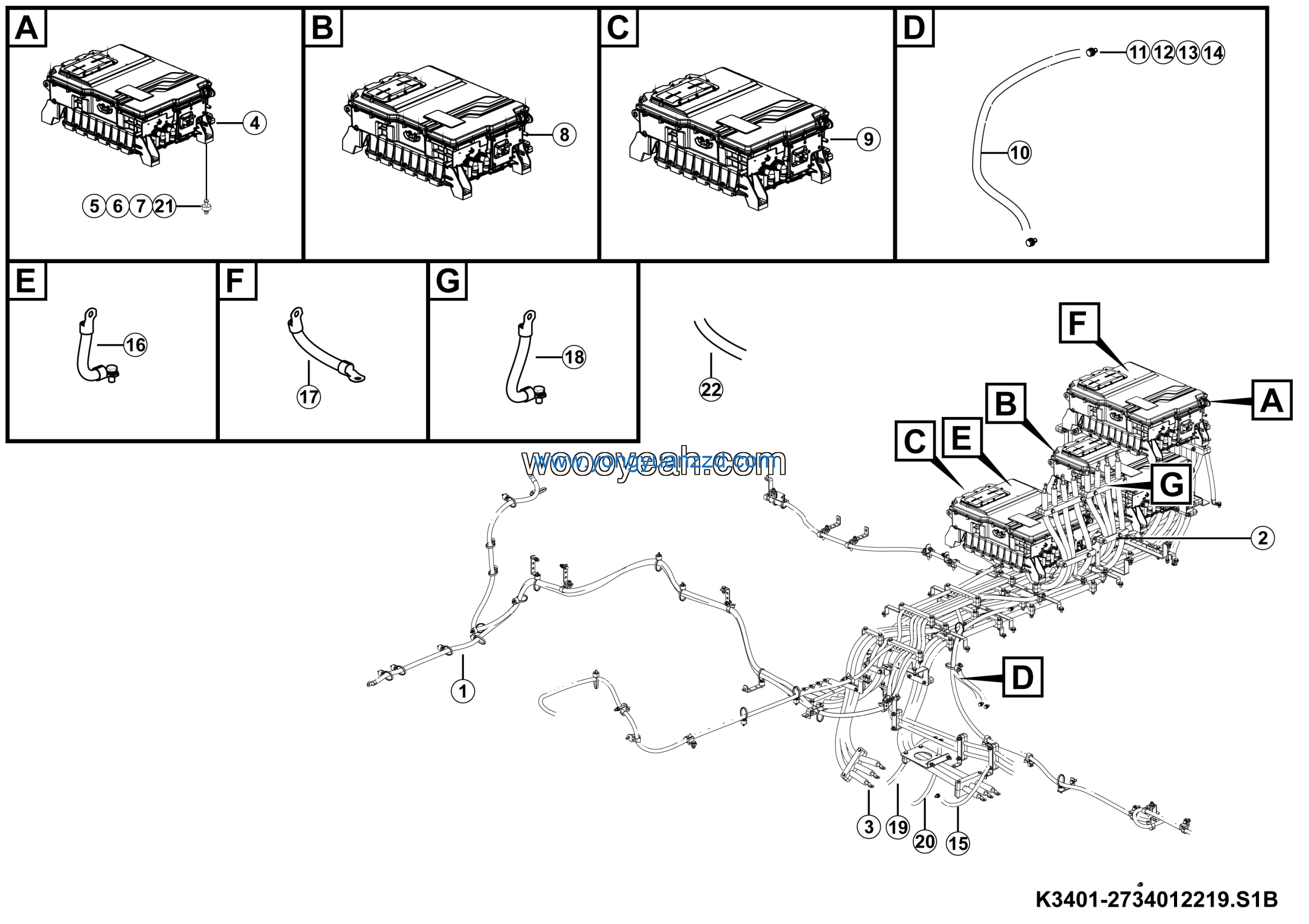

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Ground wire bzw-50*350 | 2762000155-245 | 1 |
| 2 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 11 |
| 3 | Double sack wedge lock washer HF10 | 4190708409 | 11 |
| 4 | Washer GB97.1-10EpZn-300HV | 4015000162 | 11 |
| 5 | Washer GB862.2-10-65Mn | 4015010586 | 11 |
| 6 | Ground wire p25-10*10*550 | 2734012166-004 | 1 |
| 7 | Ground wire p50-10*10*190-1.8 | 2734011659-030 | 1 |
| 8 | Ground wire p50-10*10*190-1.8 | 2734011659-029 | 1 |
| 9 | Ground wire p50-10*10*300-1.8 | 2734011599-014 | 1 |
| 10 | Ground wire p50-10*10*450-1.8 | 2734011571-027 | 1 |
| 11 | Elec module for low power devices | 27340122141 | 1 |
| 12 | Ground wire p50-10*10*450-1.8 | 2734011571-026 | 1 |
| 13 | Controller shock-absorbing pad 40*13*15 | 27340123771 | 12 |
| 14 | Ground wire p95-10*10*900-1.8 | 2734012212-003 | 1 |
| 15 | Motor controller power supply sys | 27340122331 | 1 |
| 16 | Motors elec sys | 27340123041 | 1 |
| 17 | Generator controller ICMD10-561350BS-G | 4130706187 | 1 |
| 18 | Bolt GB5782-M10*60flZnyc-8.8-480 | 4011010734 | 12 |
| 19 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 20 |
| 20 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 8 |
| 21 | Main five in one controller ICMD10-561350BS-E | 4130706185 | 1 |
| 22 | Auxiliary five in one controller ICMD10-561350BS-F | 4130706186 | 1 |
