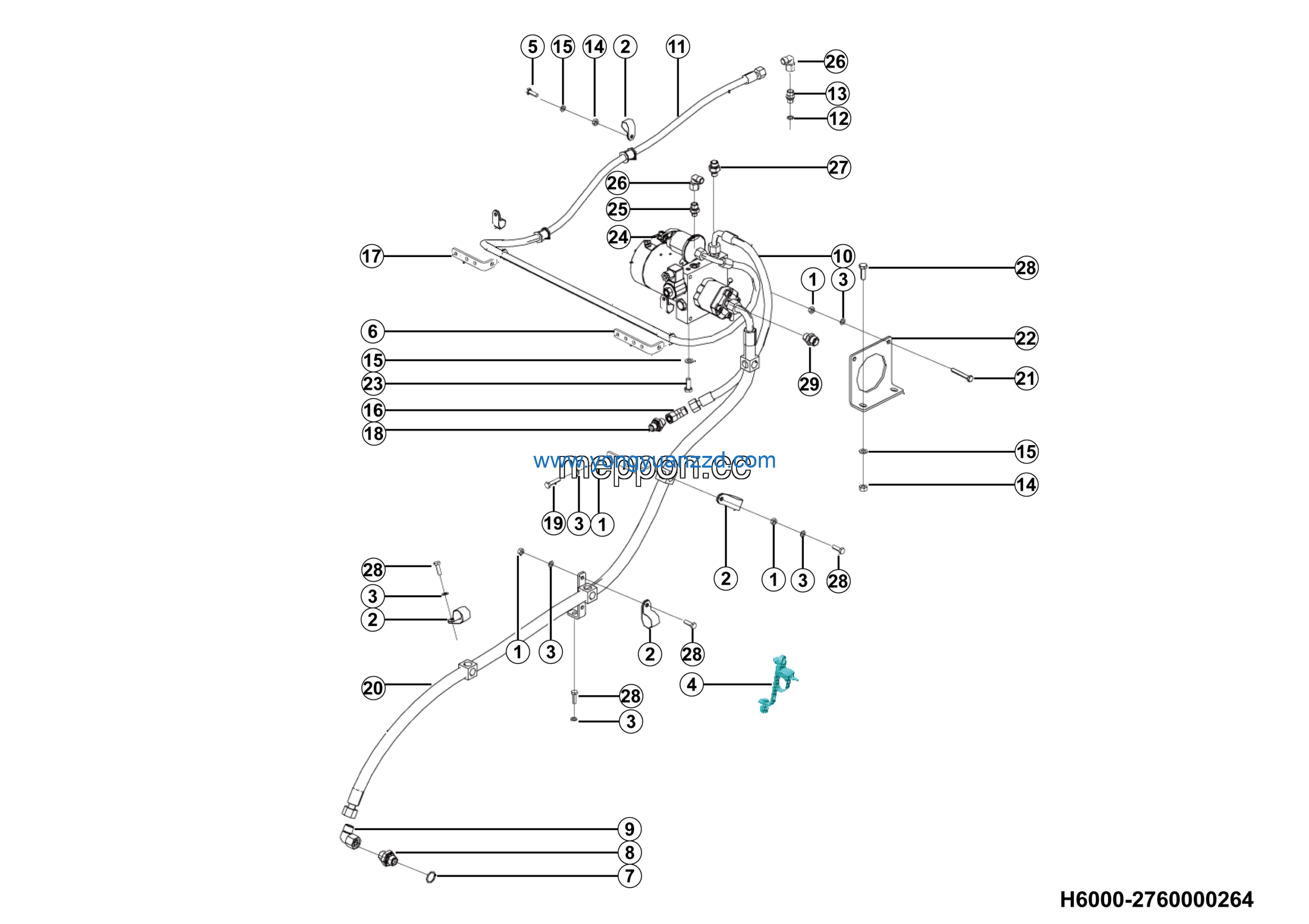

LGMG Off-Highway Dump Truck 2024 – Emergency steering assy – H6000-2760000264
Category: 2024 > Off-Highway Dump Truck > CMT96H > C096HW3E0A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose LGB165-005065 | 4041000851-004 | 1 |
| 2 | Hose F481CACF101005-1980 | 4120709003-002 | 1 |
| 3 | O-ring LGB168-11124 | 4041000767 | 1 |
| 4 | Column end 1CG-16-04 | 4120702912 | 1 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 9 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 7 | JOINT LGB143-11810 | 4041001464 | 1 |
| 8 | Bracket 90*30*40 | 27600002681 | 1 |
| 9 | Straight joint LGB155-01818 | 4041000111 | 1 |
| 10 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 11 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 12 | Hose F221FRCACF151508-1500 | 4120713095 | 1 |
| 13 | BOLT GB5783-M8*55EpZn-8.8 | 4011010609 | 2 |
| 14 | Plate | 27150112741 | 1 |
| 15 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 16 | Power unit | 4120702906 | 1 |
| 17 | Straight joint 1CB-16-04WD | 4120001369 | 1 |
| 18 | Combination joint LGB143-01608 | 4041001023 | 1 |
| 19 | Straight joint 1CB-18-04WD | 4120708214 | 1 |
| 20 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 9 |
| 21 | Straight joint 1CB-22-06WD | 4120005156 | 1 |
| 22 | Cable tie HS-J117 | 4130704969 | 5 |
| 23 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 24 | Bracket assy | 27600002671 | 1 |
| 25 | Bolt GB5782-M10*125EpZn-8.8 | 4011010193 | 1 |
| 26 | Bracket 200*50*90 | 27600002661 | 2 |
| 27 | O-ring GB3452.1-23.6*2.65G | 4030000097 | 1 |
| 28 | Straight joint LGB155-02222 | 4041000109 | 1 |
| 29 | Combination joint LGB143-02213 | 4041001156 | 1 |
