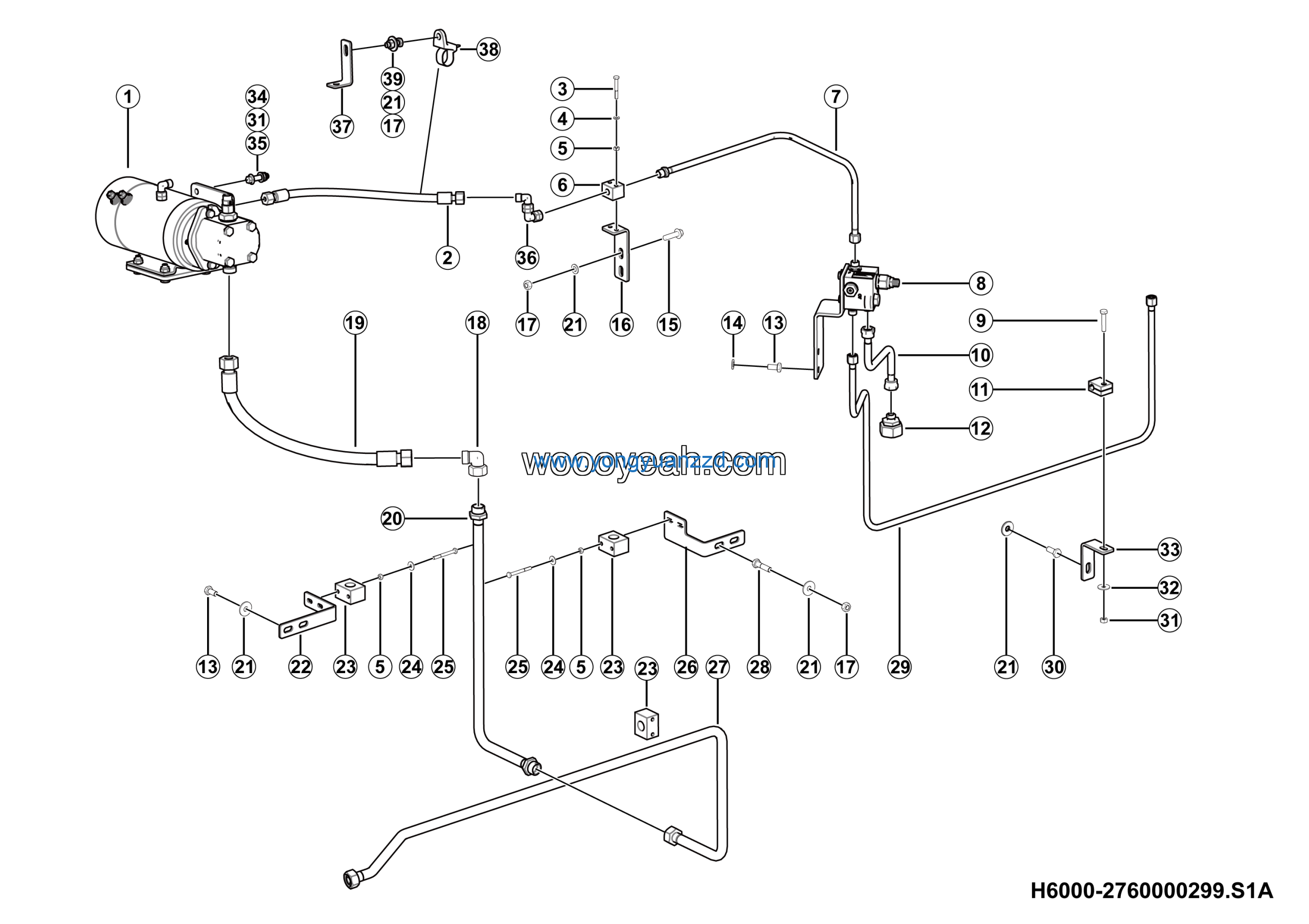

LGMG Off-Highway Dump Truck 2024 – Emergency steering assy – H6000-2760000299.S1A
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A305
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe weldment | 27600002921 | 1 |
| 2 | Single-pipe clamp 12 | 27600002361 | 2 |
| 3 | Reducing joint RED28/12LOMD | 4120712775 | 1 |
| 4 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 4 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 5 |
| 6 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 3 |
| 7 | Pipe clamp bracket 120*40*40 | 27600002331 | 1 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 9 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 10 | Hose F681CACA181810-500 | 4120713597 | 1 |
| 11 | Power unit installation | 27600002971 | 1 |
| 12 | Pipe weldment | 27600002951 | 1 |
| 13 | Washer GB96.1-10EpZn-300HV | 4015000197 | 9 |
| 14 | Bracket | 27600002891 | 1 |
| 15 | Tube clamp TLPG12-320 | 4120711325 | 4 |
| 16 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 17 | Bolt GB5782-M6*55EpZn-8.8 | 4011010517 | 4 |
| 18 | Bracket | 27600002911 | 1 |
| 19 | Pipe weldment | 27600002871 | 1 |
| 20 | Bolt GB5782-M10*40EpZn-8.8 | 4011000504 | 2 |
| 21 | Pipe weldment | 27600002861 | 1 |
| 22 | Hose F481CACA101005-480 | 4120713598 | 1 |
| 23 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 24 | Nut GB6170-M8-8 | 4013000162 | 2 |
| 25 | Washer GB96.1-8EpZn-300HV | 4015000256 | 2 |
| 26 | Bracket | 27600002881 | 2 |
| 27 | Bolt GB16674.1-M10*40EpZn-8.8 | 4011000163 | 2 |
| 28 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 29 | Combination joint LGB143-01608 | 4041001023 | 2 |
| 30 | L-bracket 90*55*4 | 27600002981 | 1 |
| 31 | Cable tie 14400342 | 4130703098 | 1 |
| 32 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 33 | Bolt GB5782-M6*45EpZn-8.8 | 4011000611 | 2 |
| 34 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 35 | Nut GB6170-M6EpZn-8 | 4013000028 | 6 |
| 36 | Tube clamp TLPG12-112 | 4120708226 | 1 |
| 37 | Relief valve oil inlet pipe weldment | 27600002341 | 1 |
| 38 | Relief valve installation | 27600002571 | 1 |
| 39 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 2 |
