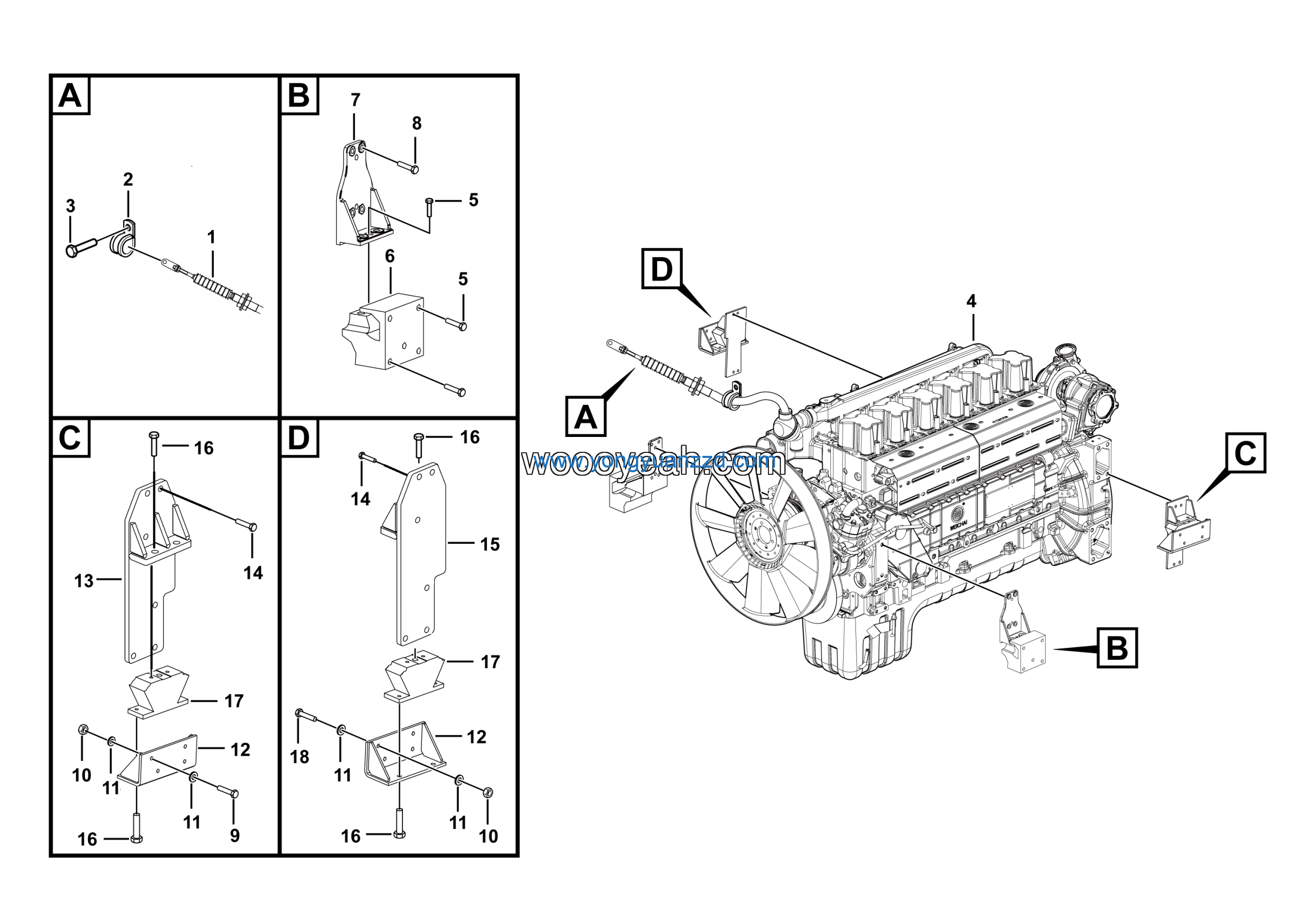

LGMG Off-Highway Dump Truck 2024 – Engine assy – A0104-2701010790-G1
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500WE18
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
| 2 | Washer GB97.1-14EpZn-300HV | 4015000177 | 16 |
| 3 | Seat | 27010111402 | 2 |
| 4 | Left leg supporting | 27010131451 | 1 |
| 5 | Bolt GB5786-M14*1.5*30flZnyc-12.9-480 | 4011010611 | 8 |
| 6 | Right leg supporting | 27010131461 | 1 |
| 7 | BOLT GB5786-M16*1.5*40flZnyc-12.9-480 | 4011010582 | 8 |
| 8 | RR engine mount cushion | 4110000296 | 2 |
| 9 | Bolt GB5783-M14*60flZnyc-12.9-480 | 4011010612 | 2 |
| 10 | Throttle cable assy | 4110001883 | 1 |
| 11 | Pipe clamp Ф13 | 27340100341 | 1 |
| 12 | Bolt GB5783-M8*12EpZn-8.8 | 4011000180 | 1 |
| 13 | Engine assy WP10.340 | 4110000826 | 1 |
| 14 | Bolt GB5786-M16*1.5*35flZnyc-12.9-480 | 4011010534 | 14 |
| 15 | Engine FR rubber pad | 4110000832 | 2 |
| 16 | Plate | 27010107821 | 2 |
| 17 | Bolt GB5783-M12*30flZnyc-12.9-480 | 4011010610 | 8 |
| 18 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 6 |
