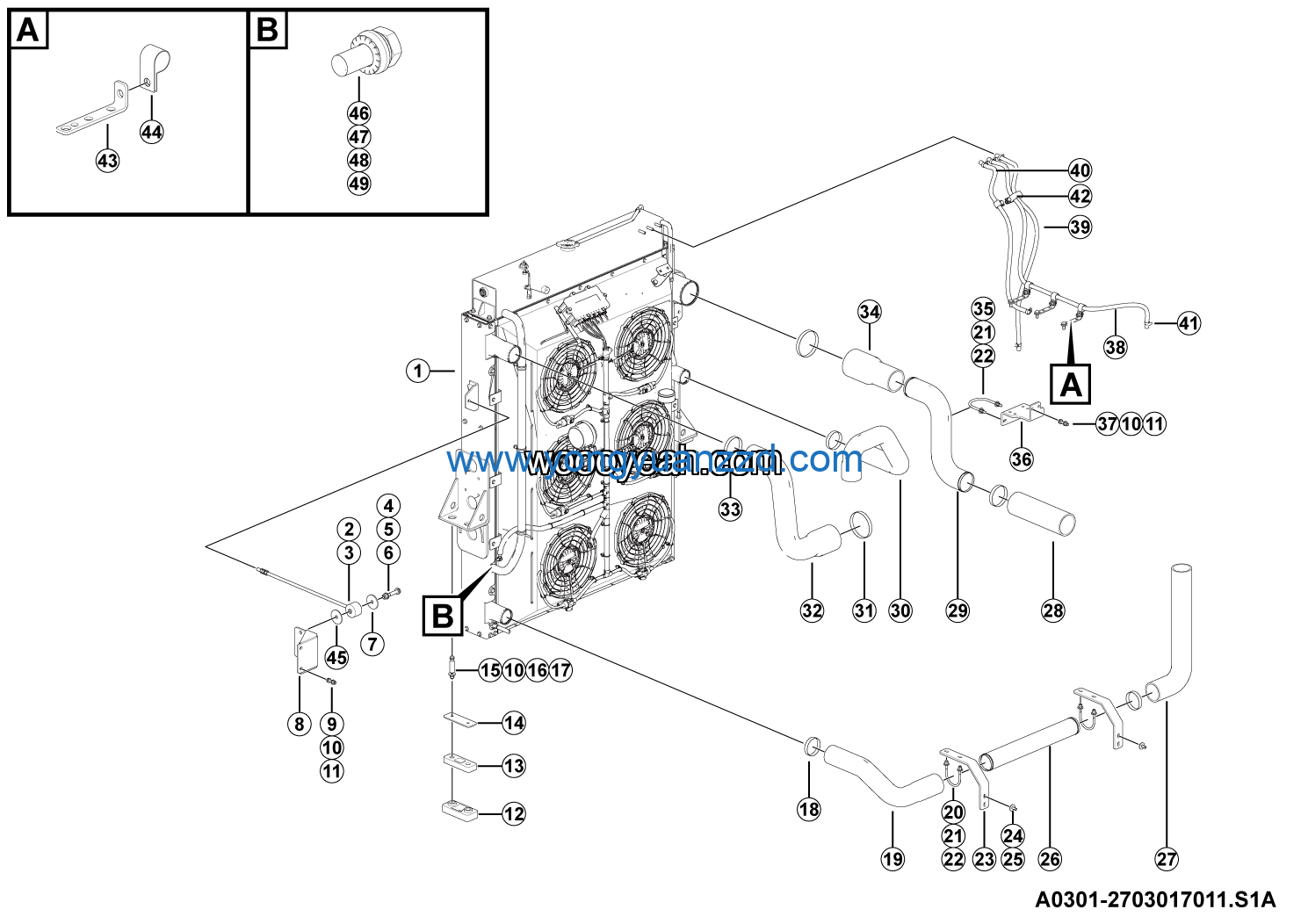

LGMG Off-Highway Dump Truck 2024 – Engine cooling assy – A0301-2703017011.S1A
Category: 2024 > Off-Highway Dump Truck > RTH100 > R1000Y3A0A110
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 27 |
| 2 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 11 |
| 3 | Radiator lwr shock block | 4110001443 | 2 |
| 4 | Radiator Upr Shock block | 4110001442 | 2 |
| 5 | Plate | 27030109021 | 2 |
| 6 | Bolt GB5782-M10*100flZnyc-12.9-480 | 4011011722 | 4 |
| 7 | Radiator absorber steel sheath | 4110001444 | 4 |
| 8 | Nut GB6185.1-M10flZnyc-12-480 | 4013010566 | 4 |
| 9 | Butterfly spring clamp φ70-φ92 | 4190708164 | 10 |
| 10 | Hose 70-76*7 | 27030168081 | 1 |
| 11 | Radiator and fan installation | 27030170102 | 1 |
| 12 | Luoshuan | 27030134111 | 2 |
| 13 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 6 |
| 14 | Nut GB6170-M8flznyc-8-480 | 4013010291 | 12 |
| 15 | Bracket 200*260*50 | 27030168131 | 2 |
| 16 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 12 |
| 17 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 8 |
| 18 | Pipe 76*1.5*550 | 27030156371 | 1 |
| 19 | Hose 76*7 | 27030168091 | 1 |
| 20 | Hose 89*7 | 27030168061 | 1 |
| 21 | Pipe 89*1.5 | 27030168111 | 1 |
| 22 | Radiator bar CG-600 | 4110705454 | 2 |
| 23 | Hose 65-73*7 | 27030168071 | 1 |
| 24 | Butterfly spring clamp φ108-φ130 | 4190708167 | 4 |
| 25 | Hose 80-102*7 | 27030168051 | 1 |
| 26 | Butterfly spring clamp φ84-φ105 | 4190708165 | 7 |
| 27 | Hose 89-112*7 | 27030168101 | 1 |
| 28 | U-bolt | 27030168171 | 1 |
| 29 | Bracket 130*140*161 | 27030170001 | 1 |
| 30 | Bolt GB5783-M10*45flZnyc-8.8-480 | 4011011046 | 2 |
| 31 | Hose 10*3.5*1510 | 27030158862 | 1 |
| 32 | Hose 10*3.5*1030 | 27030158881 | 1 |
| 33 | Nut GB6170-M12flZnyc-8-480 | 4013010295 | 6 |
| 34 | Hose 10*3.5*540 | 27030158891 | 1 |
| 35 | Hose clamp JB8870-D20 | 4017000010 | 6 |
| 36 | Double hole R-type clamp R-D28*2-M10 | 4190707979 | 1 |
| 37 | Plate | 27010113352 | 3 |
| 38 | Clamp R-D26-M10 | 4190707971 | 4 |
| 39 | Plate 65*15 | 27030169971 | 2 |
| 40 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 41 | Double sack wedge lock washer HF10 | 4190708409 | 1 |
| 42 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 43 | Washer GB862.2-10-65Mn | 4015010586 | 1 |
| 44 | Bolt gb5782-m14*90flznyc-12.9-480 | 4011011841 | 2 |
| 45 | Washer GB97.1-14flZnyc-300HV-480 | 4015010341 | 4 |
| 46 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 2 |
| 47 | Plate | 27030109731 | 2 |
| 48 | Bracket wldmt | 27030170301 | 2 |
| 49 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 4 |
