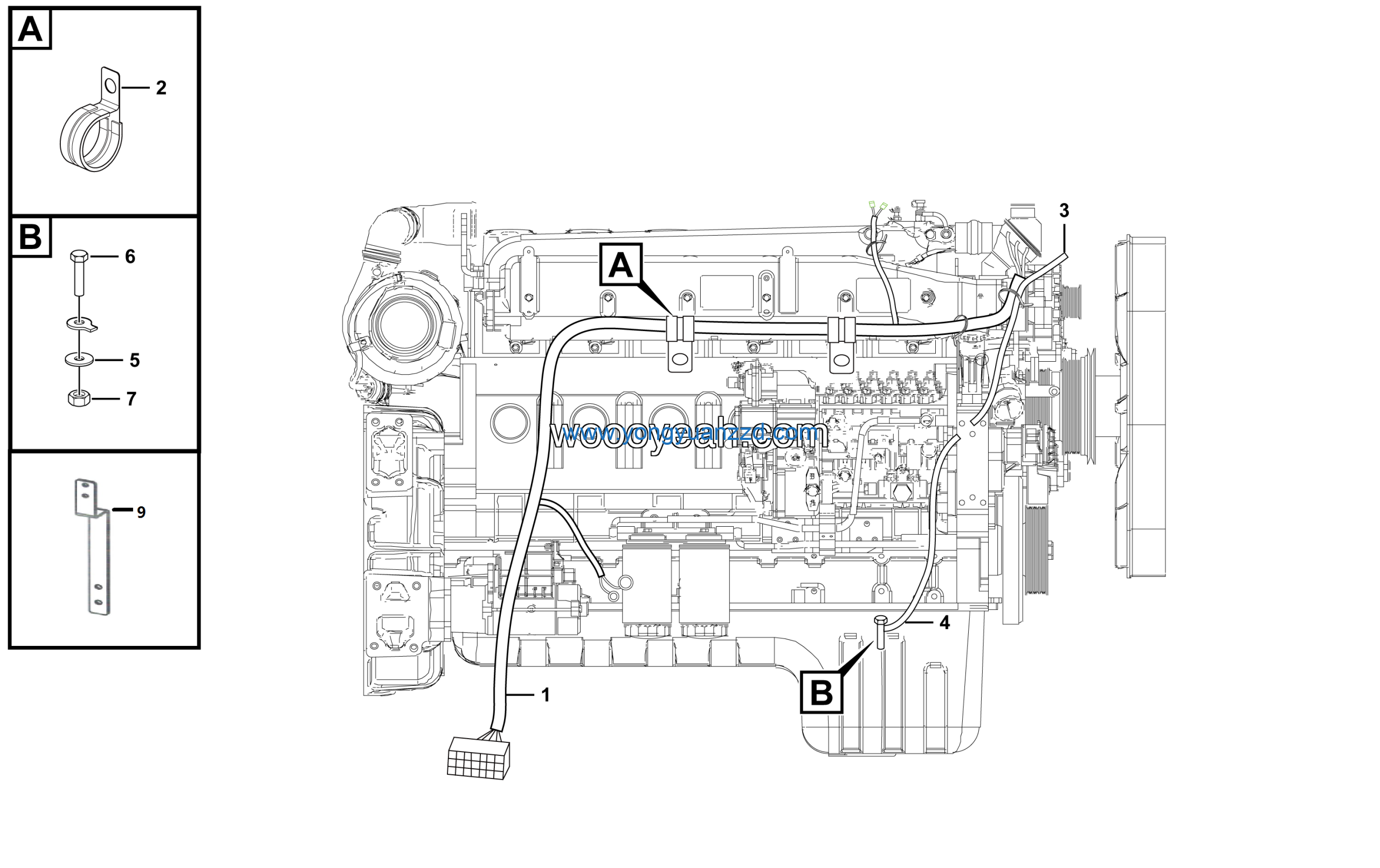

LGMG Off-Highway Dump Truck 2024 – Engine electric system assy – K3402-2734010005
Category: 2024 > Off-Highway Dump Truck > MT50 > M0500WA07
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Engine wiring harness | 27340100042 | 1 |
| 2 | Pipe clamp Ф13 | 27340100341 | 2 |
| 3 | Air conditioner compressor ground wire P2.0*400 | 27340100011 | 1 |
| 4 | Engine ground wire p70*300 | 27340100352 | 1 |
| 5 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 6 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 8 | Plate | 27200118951 | 1 |
