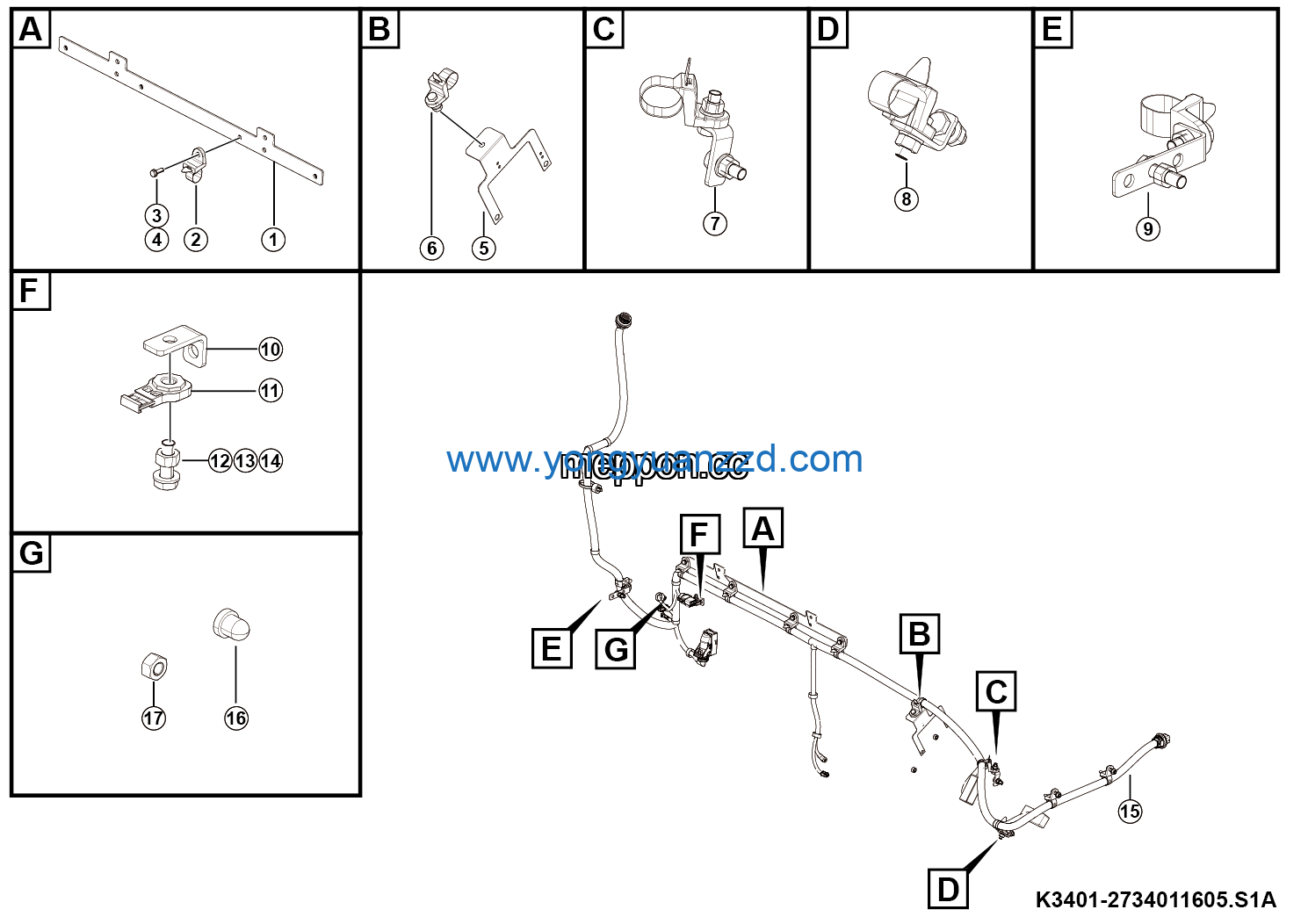

LGMG Off-Highway Dump Truck 2024 – Engine electrical system – K3401-2734011605.S1A
Category: 2024 > Off-Highway Dump Truck > CMT96 > C0960WG18
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Holder | 27200142321 | 1 |
| 2 | Clip spring 14400370 | 4130703099 | 1 |
| 3 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 4 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 5 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 6 | Engine harness | 27340116061 | 1 |
| 7 | Nylon cap nut M8 | 4130705735 | 1 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 9 | Holder | 27340103471 | 1 |
| 10 | Cable tie HS-J117 | 4130704969 | 4 |
| 11 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 12 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 13 | Plate | 27340101581 | 1 |
| 14 | System | 27200145871 | 3 |
| 15 | Wire harness fixed point assembly (M10 * 30 + battery cabinet bracket) | 2720014943-001 | 1 |
| 16 | Wire harness fixed point assembly (m10 * 30 + battery cabinet bracket) | 27200149431 | 1 |
| 17 | Harness fixing point assy M10*35 | 2720015422-004 | 1 |
