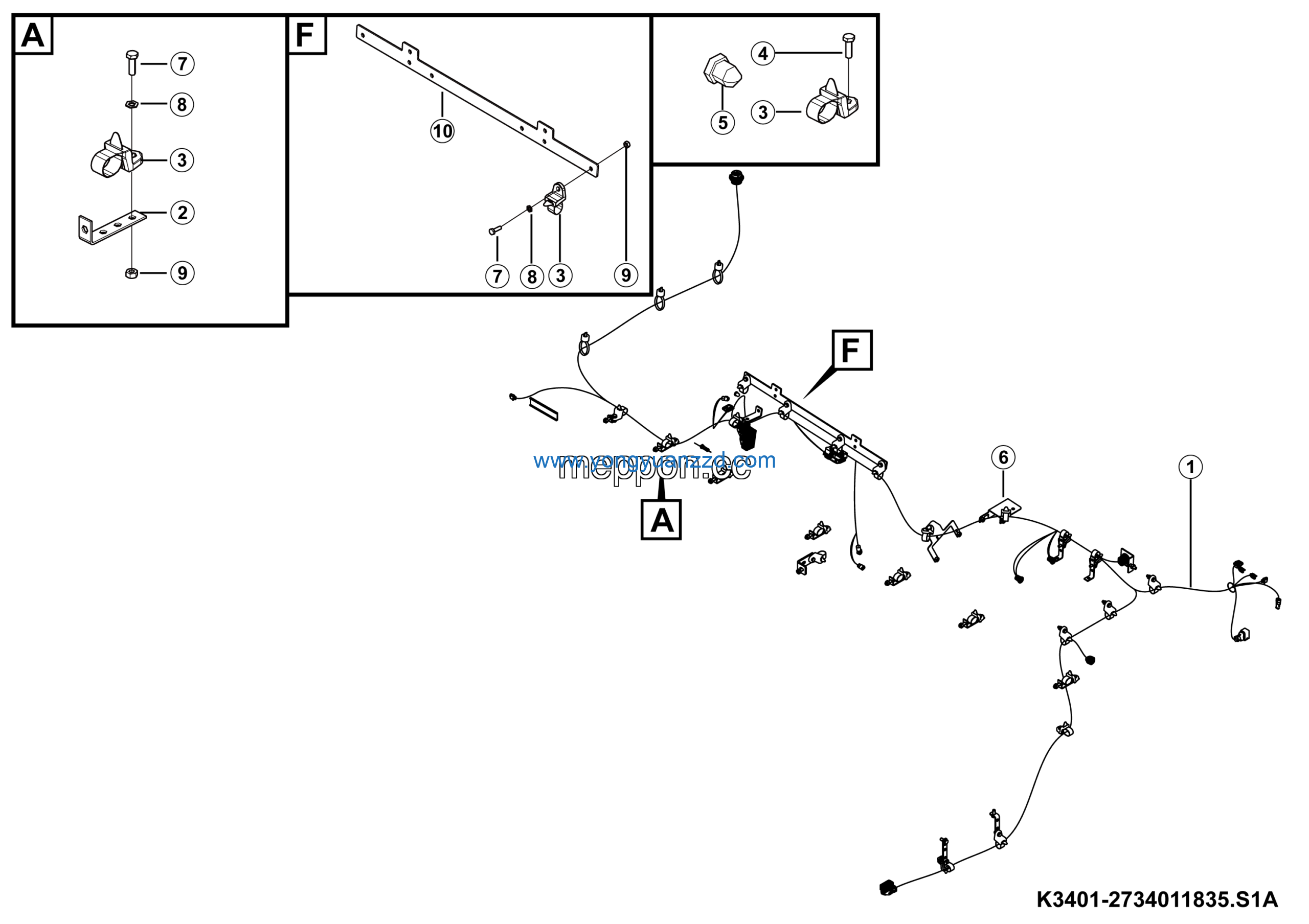

LGMG Off-Highway Dump Truck 2024 – Engine electrical system – K3401-2734011835.S1A
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3E0M003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Holder | 27340103471 | 1 |
| 2 | Engine wiring harness | 27340118341 | 1 |
| 3 | Bracket 1 | 27100103561 | 2 |
| 4 | Cable tie 14400342 | 4130703098 | 8 |
| 5 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 6 | Nylon cap nut M8 | 4130705735 | 1 |
| 7 | Engine stationary assembly (151 upgrade) | 27340118331 | 1 |
| 8 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 6 |
| 9 | Washer GB97.1-8EpZn-300HV | 4015000072 | 9 |
| 10 | Nut GB6170-M8EpZn-8 | 4013000033 | 5 |
