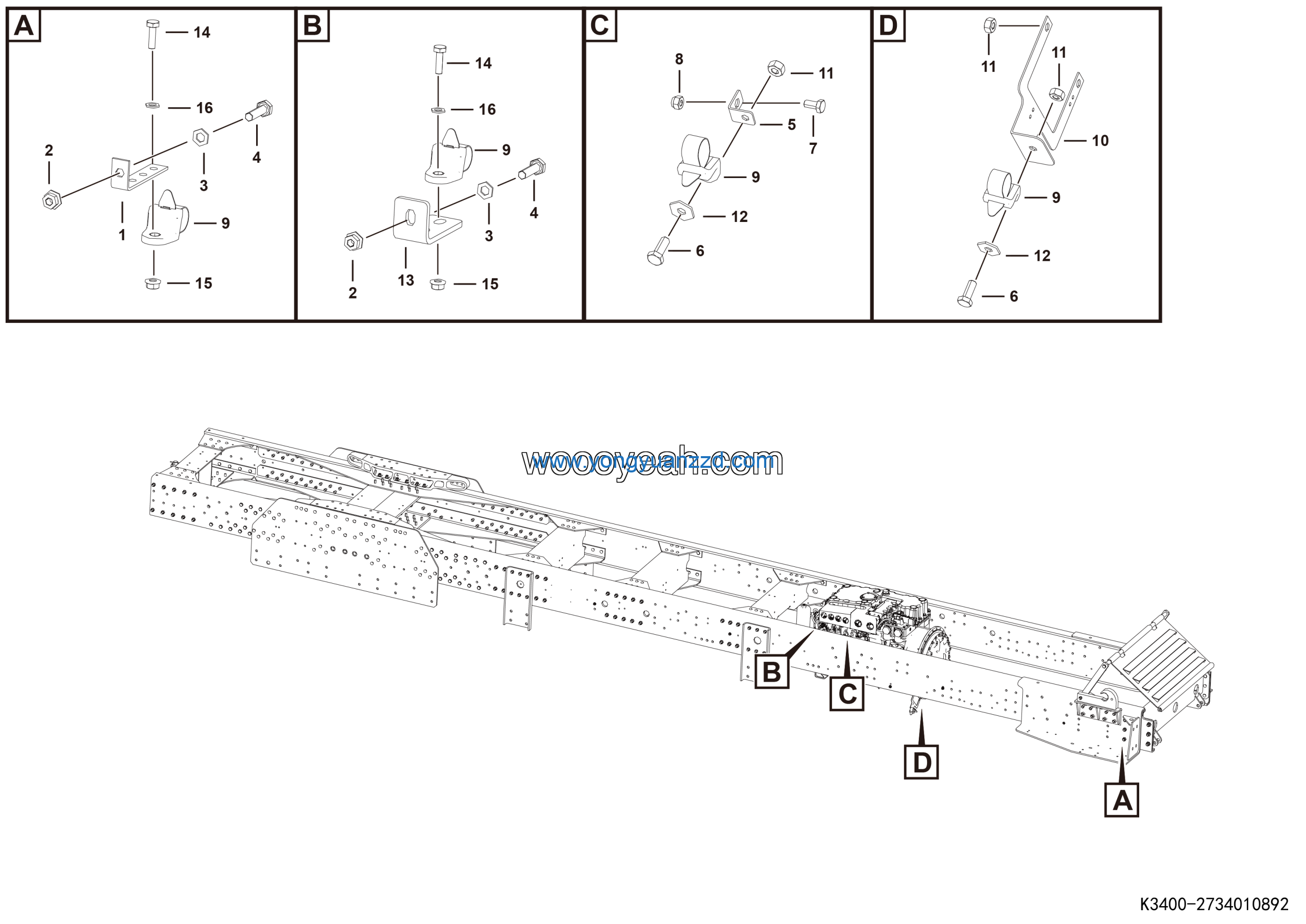

LGMG Off-Highway Dump Truck 2024 – Engine harness fixed system – K3400-2734010892
Category: 2024 > Off-Highway Dump Truck > CMT66A > C066AW3E0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27340101581 | 1 |
| 2 | Nut GB6170-M10EpZn-10 | 4013000005 | 5 |
| 3 | Washer GB96.1-10EpZn-300HV | 4015000197 | 3 |
| 4 | Bracket | 27100105951 | 1 |
| 5 | Bolt GB5783-M8*25flznyc-8.8-480 | 4011010743 | 7 |
| 6 | Nut GB6177.1-M8flZnyc-8-480 | 4013010386 | 7 |
| 7 | Washer GB97.1-8EpZn-300HV | 4015000072 | 7 |
| 8 | Bracket 1 | 27100103561 | 6 |
| 9 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 7 |
| 10 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 7 |
| 11 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 7 |
| 12 | Bracket | 27200139241 | 2 |
| 13 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 14 | Bolt GB5783-M8*16flznyc-8.8-480 | 4011010970 | 1 |
| 15 | Nut GB889.1-M8flznyc-8-480 | 4013010297 | 1 |
| 16 | Cable tie HS-J117 | 4130704969 | 10 |
