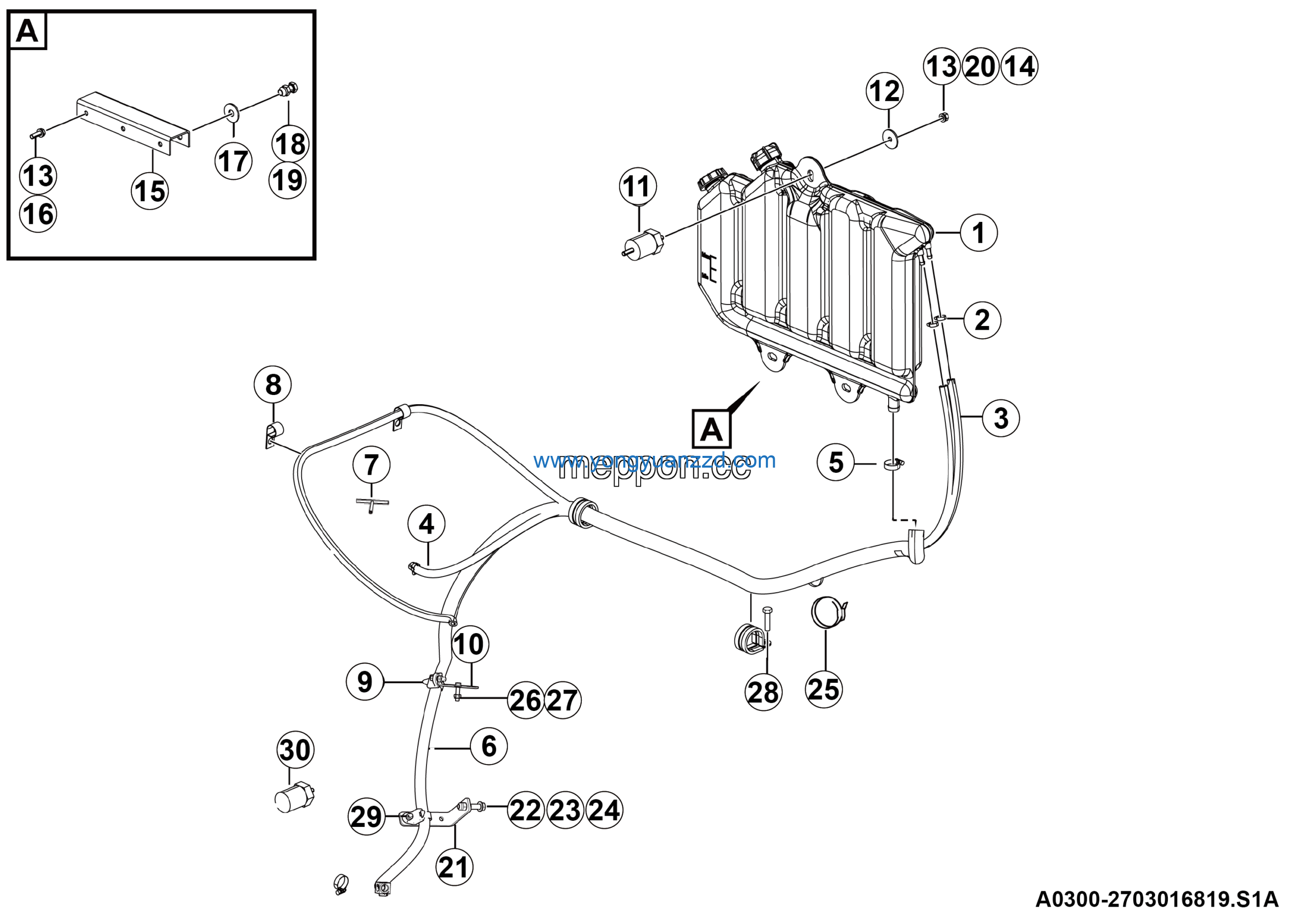

LGMG Off-Highway Dump Truck 2024 – Expansion tank assy – A0300-2703016819.S1A
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HY3A0M035
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27010113352 | 3 |
| 2 | Rubber shock block | 4110000211 | 1 |
| 3 | washer | 27030102011 | 1 |
| 4 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 5 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 6 | E*PANSION TANK BRACKET | 27030102221 | 1 |
| 7 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 3 |
| 8 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 9 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 10 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 11 | Expansion water tank | 4110000439 | 1 |
| 12 | Washer GB93-8-65Mn | 4015000036 | 1 |
| 13 | Plate | 27240108821 | 1 |
| 14 | Bolt GB5782-M14*65EpZn-10.9 | 4011010437 | 1 |
| 15 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 1 |
| 16 | Washer GB97.1-14EpZn-300HV | 4015000177 | 1 |
| 17 | Nylon large tie strap HS-J118 | 4130705870 | 3 |
| 18 | Bolt GB16674.1-M10*40EpZn-8.8 | 4011000163 | 1 |
| 19 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 5 |
| 20 | Bolt GB16674.1-M10*25EpZn-8.8 | 4011000474 | 3 |
| 21 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 3 |
| 22 | Hose clamp JB8870-D16 | 4017010173 | 8 |
| 23 | Plug 28*4 | 27030164971 | 1 |
| 24 | Breath tube ii | 27030139991 | 1 |
| 25 | Breath tube i | 27030139982 | 1 |
| 26 | Hose clamp JB8870-D32 | 4017000011 | 3 |
| 27 | Pipe | 27030111321 | 1 |
| 28 | Joint | 27030129621 | 1 |
| 29 | Pipe clamp R-D24-M10 | 4190707970 | 1 |
| 30 | Cable tie HS-J117 | 4130704969 | 2 |
