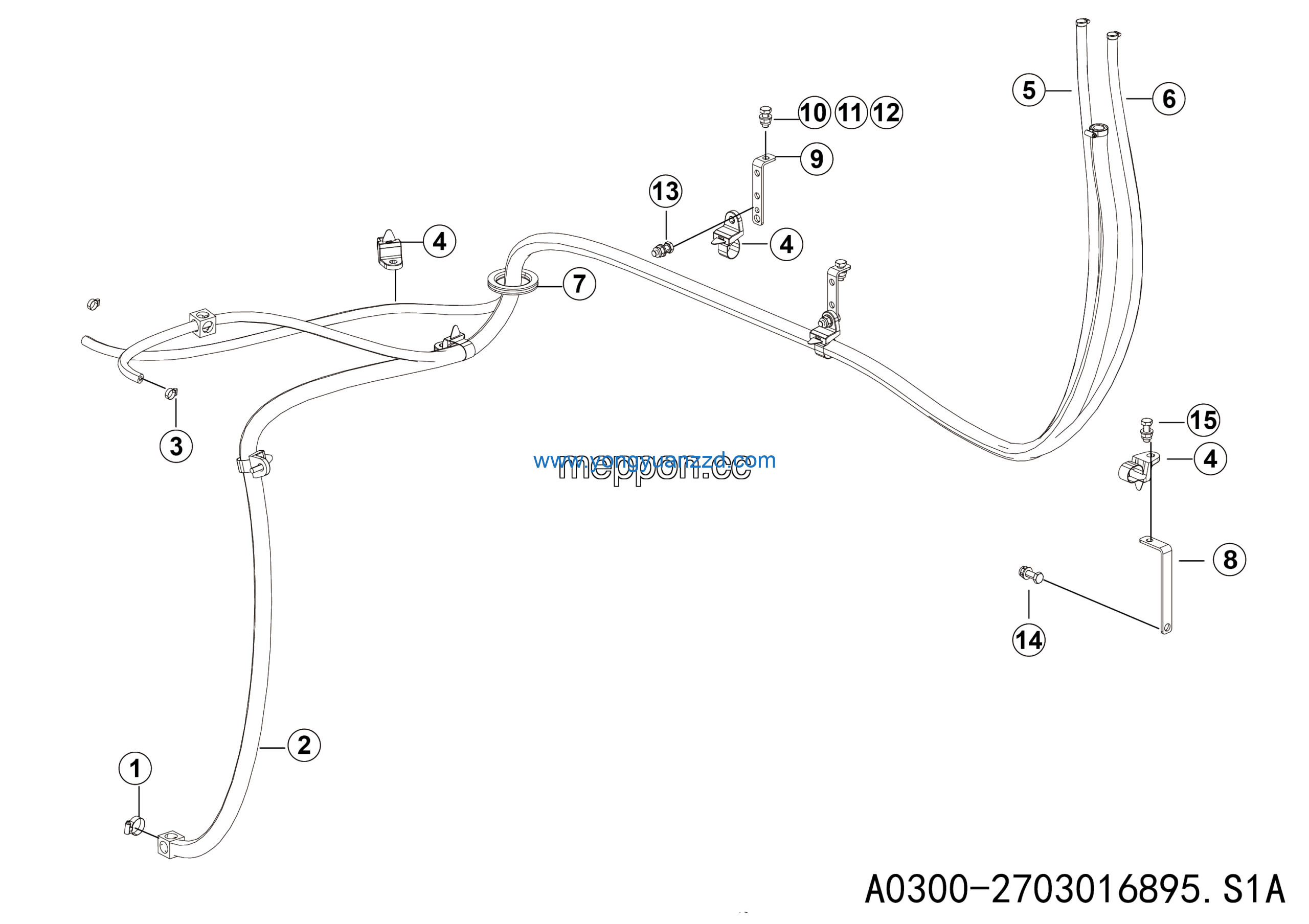

LGMG Off-Highway Dump Truck 2024 – Expansion tank assy – A0300-2703016895.S1A
Category: 2024 > Off-Highway Dump Truck > MT106 > M106HW3A0M380
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 3 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 6 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 5 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 6 | Bolt GB16674.1-M8*25EpZn-8.8 | 4011000455 | 1 |
| 7 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 8 | Expansion tank water filling hose 35*5*3600 | 2703016735-002 | 1 |
| 9 | Hose clamp JB8870-D16 | 4017010173 | 4 |
| 10 | Cable tie HS-J117 | 4130704969 | 6 |
| 11 | Breather hose | 2703010895-002 | 1 |
| 12 | RADIATOR CANNULATION | 2703010949-017 | 1 |
| 13 | Grommet 60*3 | 27030161451 | 1 |
| 14 | Plate | 27010130871 | 1 |
| 15 | Plate | 27010113352 | 2 |
