LGMG Off-Highway Dump Truck 2024 – Expansion water tank assy – A0300-2703011941.S
Category: 2024 > Off-Highway Dump Truck > CMT66 > C0660W3E0A207

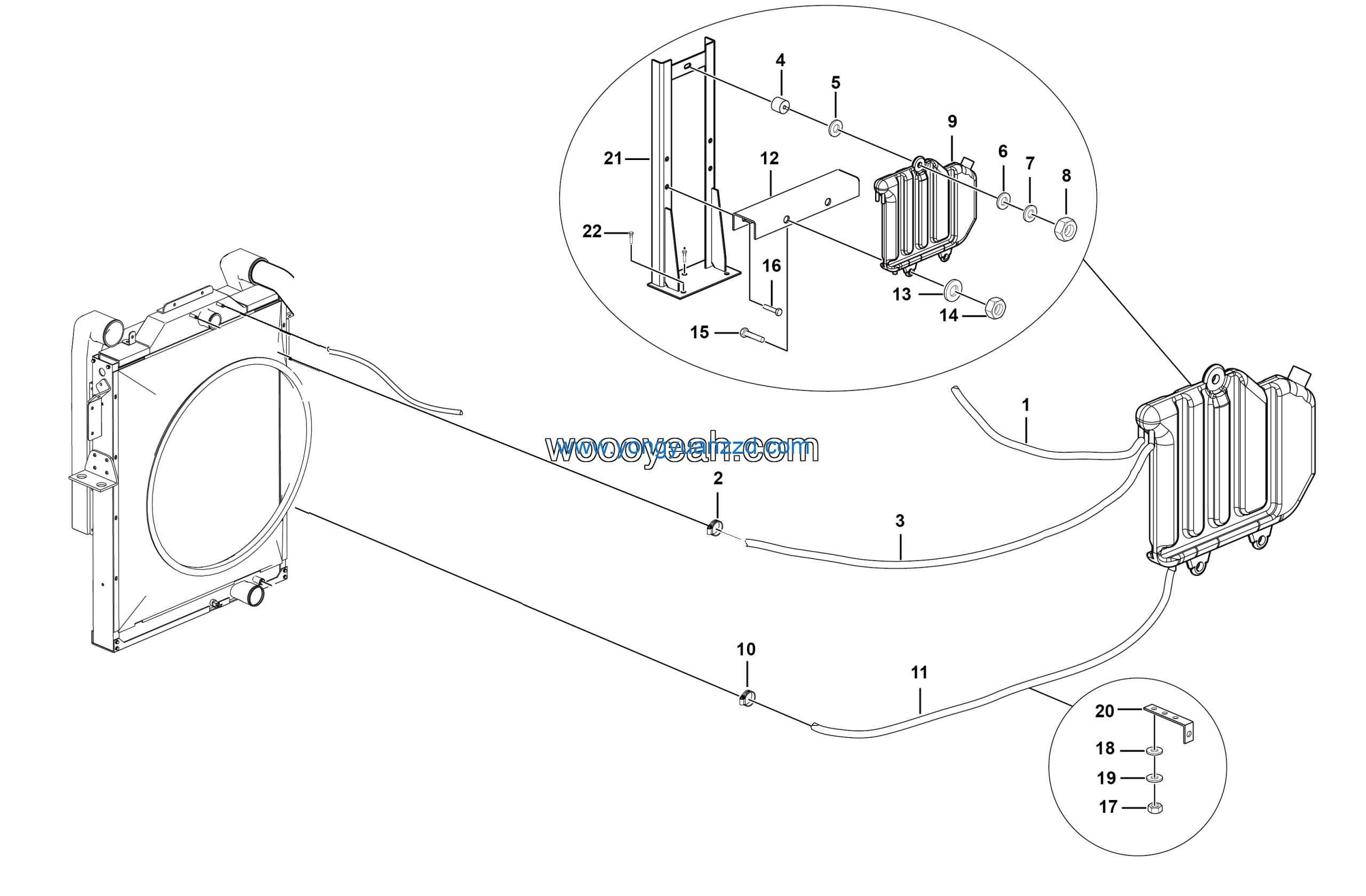

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 2 | plate Ⅱ | 27030112651 | 1 |
| 3 | E*PANSION TANK BRACKET | 27030102221 | 1 |
| 4 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 5 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 5 |
| 6 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 7 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 8 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 9 | Washer GB93-6-65Mn | 4015000035 | 3 |
| 10 | Washer GB97.1-6EpZn-300HV | 4015000207 | 3 |
| 11 | Pipe ⅰ | 27030107561 | 1 |
| 12 | Bracket 1 | 27100103561 | 4 |
| 13 | Support plate assemble | 27030111262 | 1 |
| 14 | Bolt GB5782-M12*80EpZn-8.8 | 4011000334 | 3 |
| 15 | No longer used | 4190000343 | 4 |
| 16 | Pipe | 27030111311 | 1 |
| 17 | Rubber shock block | 4110000211 | 1 |
| 18 | washer | 27030102011 | 1 |
| 19 | Washer GB93-8-65Mn | 4015000036 | 5 |
| 20 | Washer GB97.1-8EpZn-300HV | 4015000072 | 5 |
| 21 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 22 | Expansion water tank | 4110000439 | 1 |
