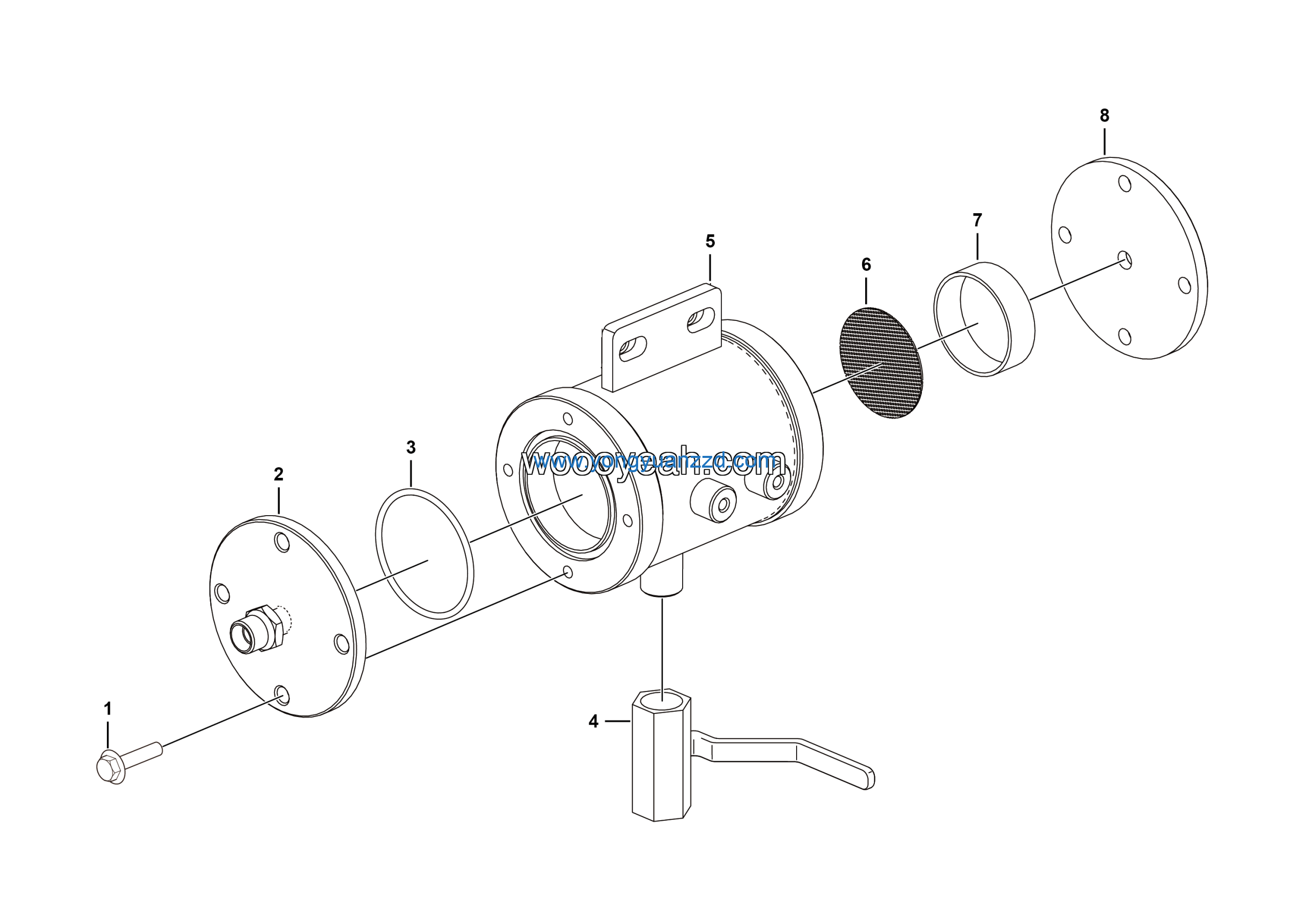

LGMG Off-Highway Dump Truck 2024 – Filter assy – J3801-2738010632
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M346
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB16674.1-M8*20EpZn-8.8 | 4011000458 | 8 |
| 2 | Flange assembly | 27380100561 | 1 |
| 3 | O-ring GB3452.1-65.0*3.55G | 4030000233 | 2 |
| 4 | Two-way brass ball valve-G1/2 | 4120000863 | 1 |
| 5 | Fifter shell | 27380106311 | 1 |
| 6 | Strainer | 27380100581 | 1 |
| 7 | Spacer ring | 27380100571 | 1 |
| 8 | Flange | 27380100701 | 1 |
