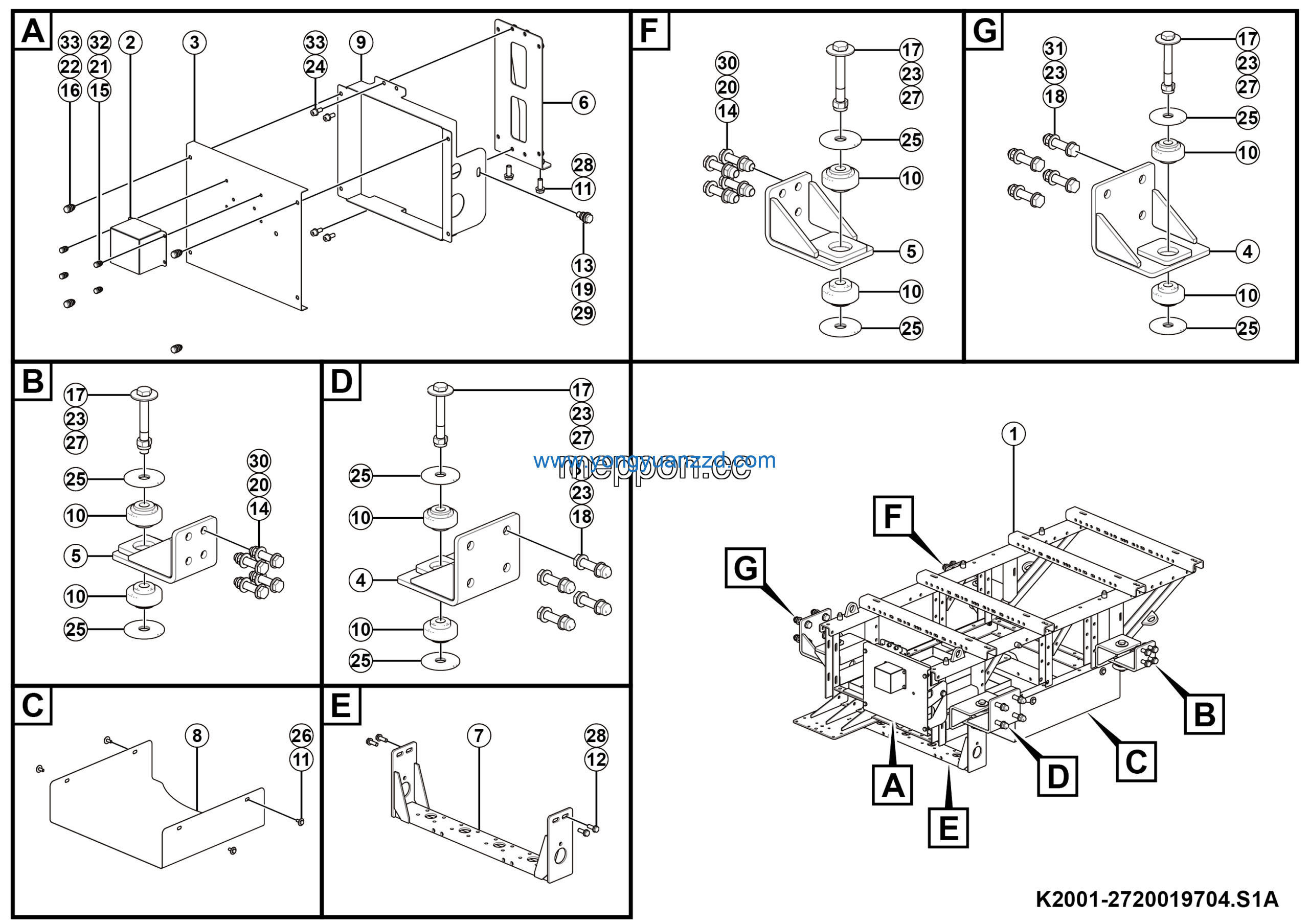

LGMG Off-Highway Dump Truck 2024 – Five-in-one controller holder installation – K2001-2720019704.S1A
Category: 2024 > Off-Highway Dump Truck > MTE106H > C106HE0A0A504
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Shock absorber MDS66-65 | 4110703154 | 8 |
| 2 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 6 |
| 3 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 4 |
| 4 | Bolt GB5783-M12*30flznyc-8.8-480 | 4011010978 | 1 |
| 5 | BOLT GB5783-M14*65flZnyc-12.9-480 | 4011010546 | 8 |
| 6 | Bolt GB5783-M6*16flZnyc-8.8-480 | 4011010747 | 4 |
| 7 | Bolt GB5783-M8*20flznyc-8.8-480 | 4011010711 | 4 |
| 8 | Bolt GB5785-M16*1.5*120EpZn-10.9 | 4011010274 | 4 |
| 9 | Bolt GB5785-M16*1.5*75flZnyc-12.9-480 | 4011010587 | 8 |
| 10 | Nut GB6185.1-M12flZnyc-8-480 | 4013010358 | 1 |
| 11 | Five-in-one controller holder wldmt | 27200197051 | 1 |
| 12 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
| 13 | Nut GB6185.1-M6flZnyc-8-480 | 4013010414 | 4 |
| 14 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 4 |
| 15 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 12 |
| 16 | Screw GB70.1-M8*20flZnyc-8.8-480 | 4014010246 | 4 |
| 17 | Washer 75*19*5 | 27200163981 | 8 |
| 18 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 4 |
| 19 | Washer GB96.1-16flZnyc-300HV-480 | 4015010334 | 4 |
| 20 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 6 |
| 21 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 2 |
| 22 | Fuse box shield | 27200165071 | 1 |
| 23 | Washer GB97.1-14flZnyc-300HV-480 | 4015010341 | 16 |
| 24 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 16 |
| 25 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 8 |
| 26 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 12 |
| 27 | Splitter cover plate | 27200165061 | 1 |
| 28 | Front support weldment | 27200156161 | 2 |
| 29 | Rear support weldment | 27200156521 | 2 |
| 30 | Junction box bracket weldment | 27200160091 | 1 |
| 31 | Bracket wldmt | 27200180151 | 1 |
| 32 | Guard 600*181.5*1.5 | 27200197071 | 1 |
| 33 | Shield 306*285*140 | 27200181841 | 1 |
