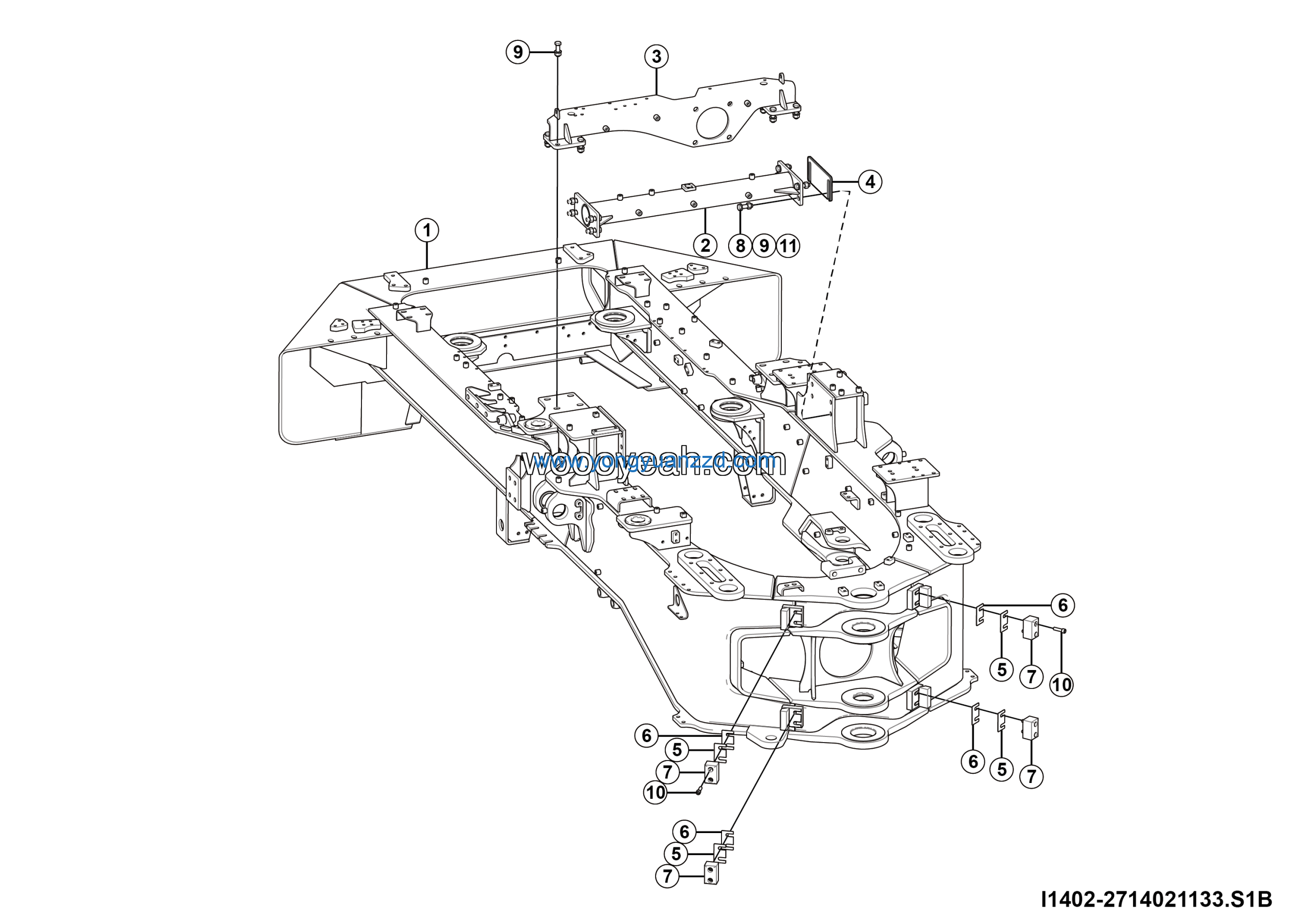

LGMG Off-Highway Dump Truck 2024 – Fr frame assy – I1402-2714021133.S1B
Category: 2024 > Off-Highway Dump Truck > AT40 > A0400W3M0A102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Screw GB70.1-M12*45flZnyc-12.9-480 | 4014010344 | 8 |
| 2 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 16 |
| 3 | Fr frame wldmt | 27140208521 | 1 |
| 4 | Mid support beam wldmt | 27140208541 | 1 |
| 5 | Hyd pump support beam wldmt | 27140208551 | 1 |
| 6 | Shim 260*115*1 | 27140210241 | 10 |
| 7 | Shim 88*53*2 | 27140230001 | 12 |
| 8 | Shim 88*53*1 | 27140230011 | 8 |
| 9 | Steering limit block 86*53*50 | 27140230021 | 4 |
| 10 | Bolt GB5783-M16*55flZnyc-10.9-480 | 4011010865 | 16 |
| 11 | Nut GB6170-M16flZnyc-10-480 | 4013010235 | 16 |
