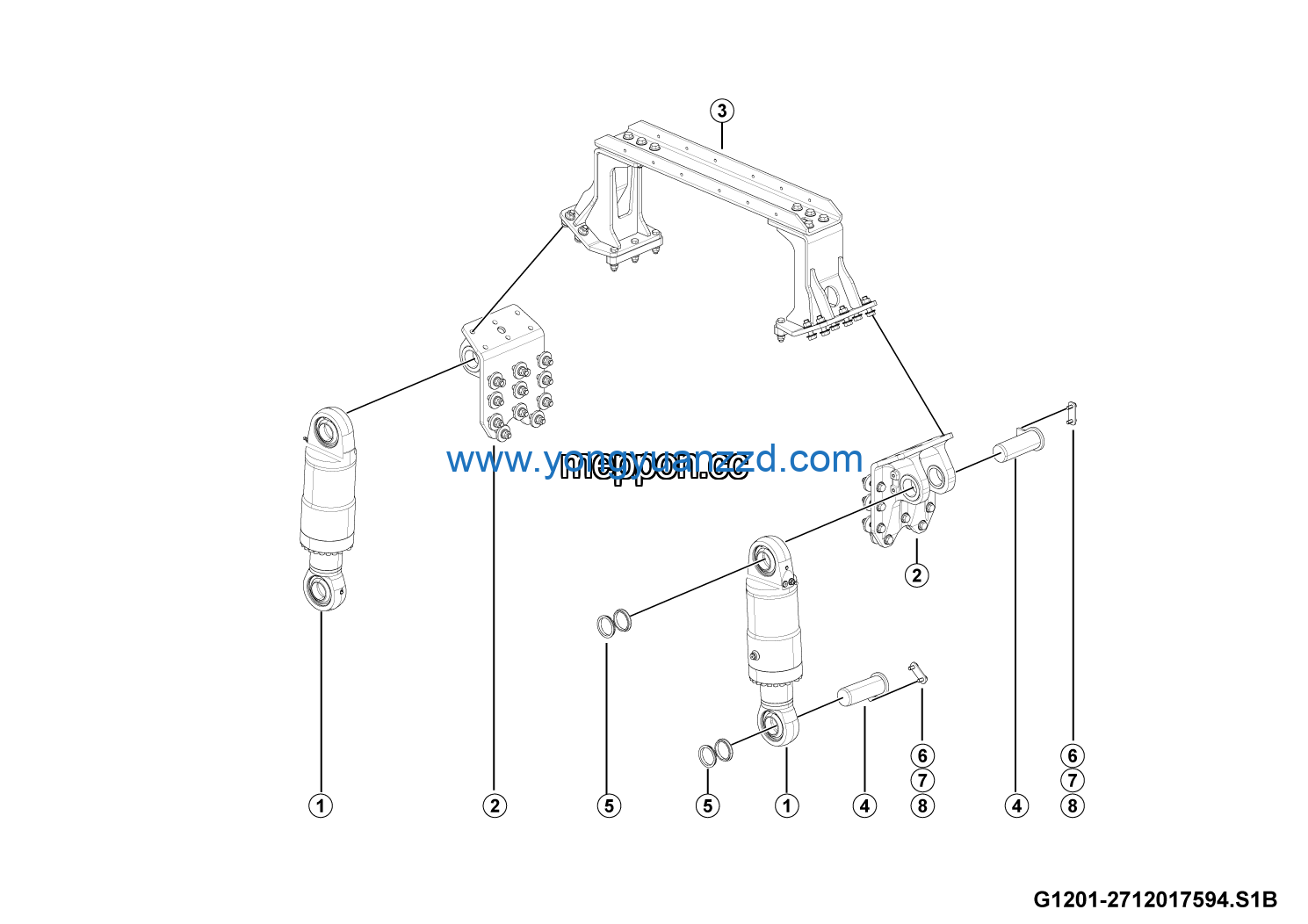

LGMG Off-Highway Dump Truck 2024 – FR hydro-pnenumatic spring installation – G1201-2712017594.S1B
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HW3A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hydro-pneumatic spring | 4110707723 | 2 |
| 2 | Hydro-pneumatic spring fr mounting assembly | 27120172971 | 2 |
| 3 | Hydro-pnenumatic spring crossbeam assy | 27120175971 | 1 |
| 4 | Pin70*185 | 27120170611 | 4 |
| 5 | Sleeve | 27120170631 | 8 |
| 6 | Palte | 27120170641 | 4 |
| 7 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 8 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
