LGMG Off-Highway Dump Truck 2024 – Front drive shaft assy LG09-QCDZ-520 – F1000-4110702878
Category: 2024 > Off-Highway Dump Truck > CMT106 > C1060W3E0A112

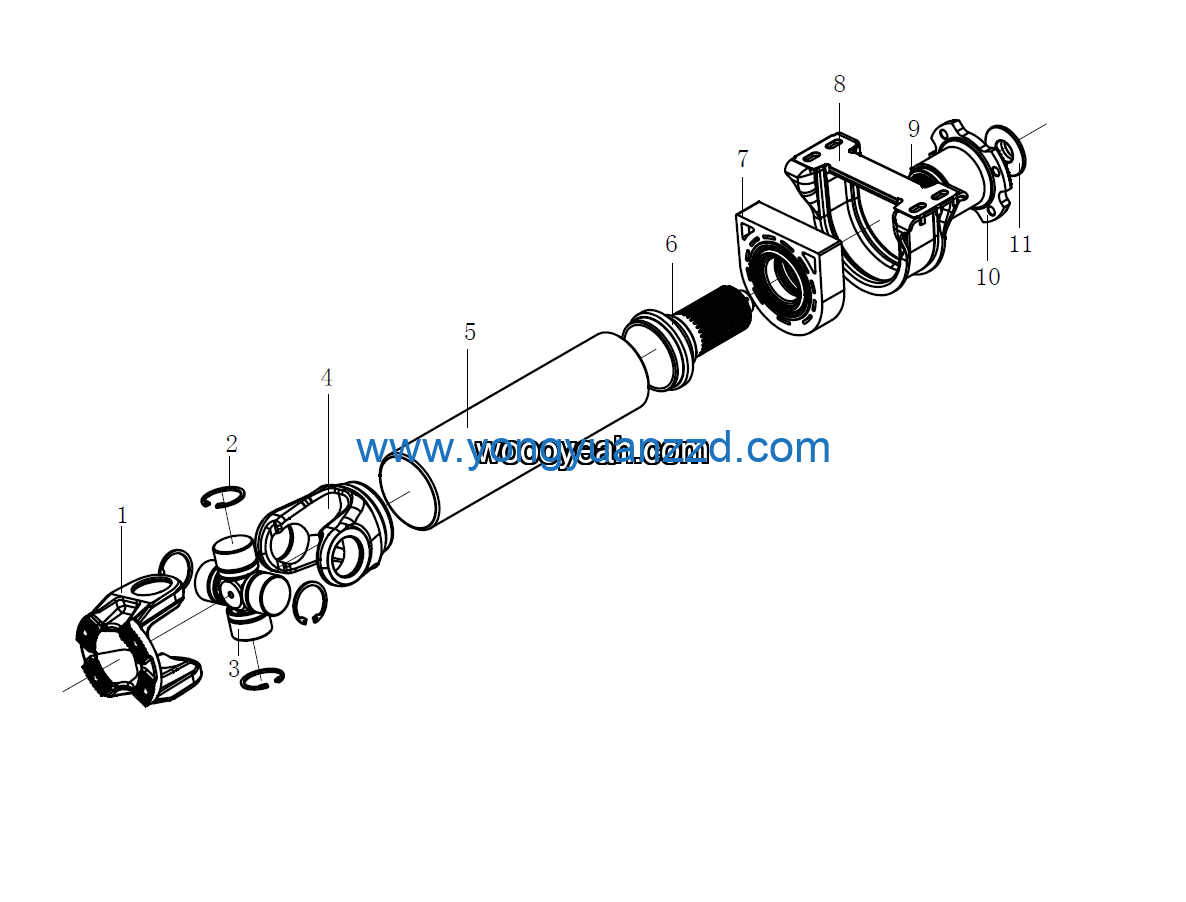

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Splines connecting disk | 4110703033010 | 1 |
| 2 | Nut 5680-2204052-A | 4110703033011 | 1 |
| 3 | Connecting fork 5680-225062-A | 4110703033001 | 1 |
| 4 | Snap ring 5680-2205063 | 4110703033002 | 4 |
| 5 | Cardan assy 5680-2205080 | 4110703033003 | 1 |
| 6 | Cardan fork 5680-2205096-A | 4110703033004 | 1 |
| 7 | Shaft tube φ140*5 | 4110703033005 | 1 |
| 8 | Mid splines shaft 5680-2204116-B2 | 4110703033006 | 1 |
| 9 | Mid support connecting plate assy 5680-2204038-A | 4110703033007 | 1 |
| 10 | Mid support connecting plate 5680-2204036-A | 4110703033008 | 1 |
| 11 | Grease nipple M6 GB1152 | 4110703033009 | 1 |
