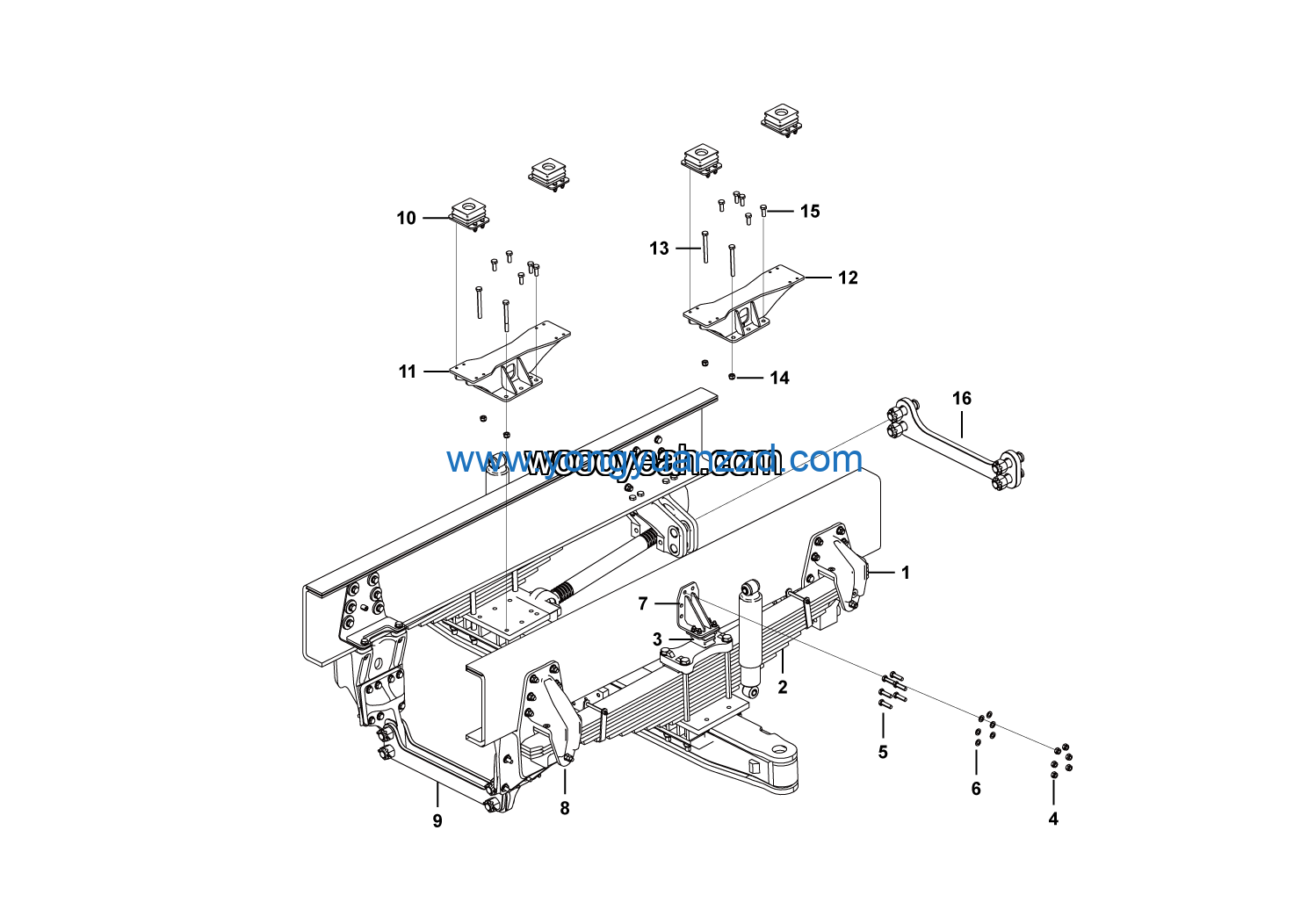

LGMG Off-Highway Dump Truck 2024 – Front Leaf Spring Assembly – G1201-2712017656
Category: 2024 > Off-Highway Dump Truck > CMT96 > C0960WG21
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assembly | 27120171671 | 4 |
| 2 | Left limit bracket assembly of axle | 27120123321 | 1 |
| 3 | Right limit bracket assembly of axle | 27120123331 | 1 |
| 4 | Bolt GB5785-M16*1.5*145flZnyc-12.9-480 | 4011010593 | 4 |
| 5 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 4 |
| 6 | BOLT GB5786-M16*1.5*40flZnyc-12.9-480 | 4011010582 | 10 |
| 7 | Front suspension crossbeam installation assembly | 27120175821 | 1 |
| 8 | Front suspension front mount installation assembly | 27120175801 | 2 |
| 9 | Pfront leaf-spring assembly | 27120174641 | 1 |
| 10 | Palte | 27120171661 | 2 |
| 11 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 12 | Bolt GB5783-M16*55flZnyc-12.9-480 | 4011010617 | 12 |
| 13 | Washer GB97.1-16EpZn-300HV | 4015000181 | 30 |
| 14 | Limit bracket assembly | 27120114401 | 2 |
| 15 | Palte | 27120171591 | 2 |
| 16 | Palte | 27120171651 | 1 |
