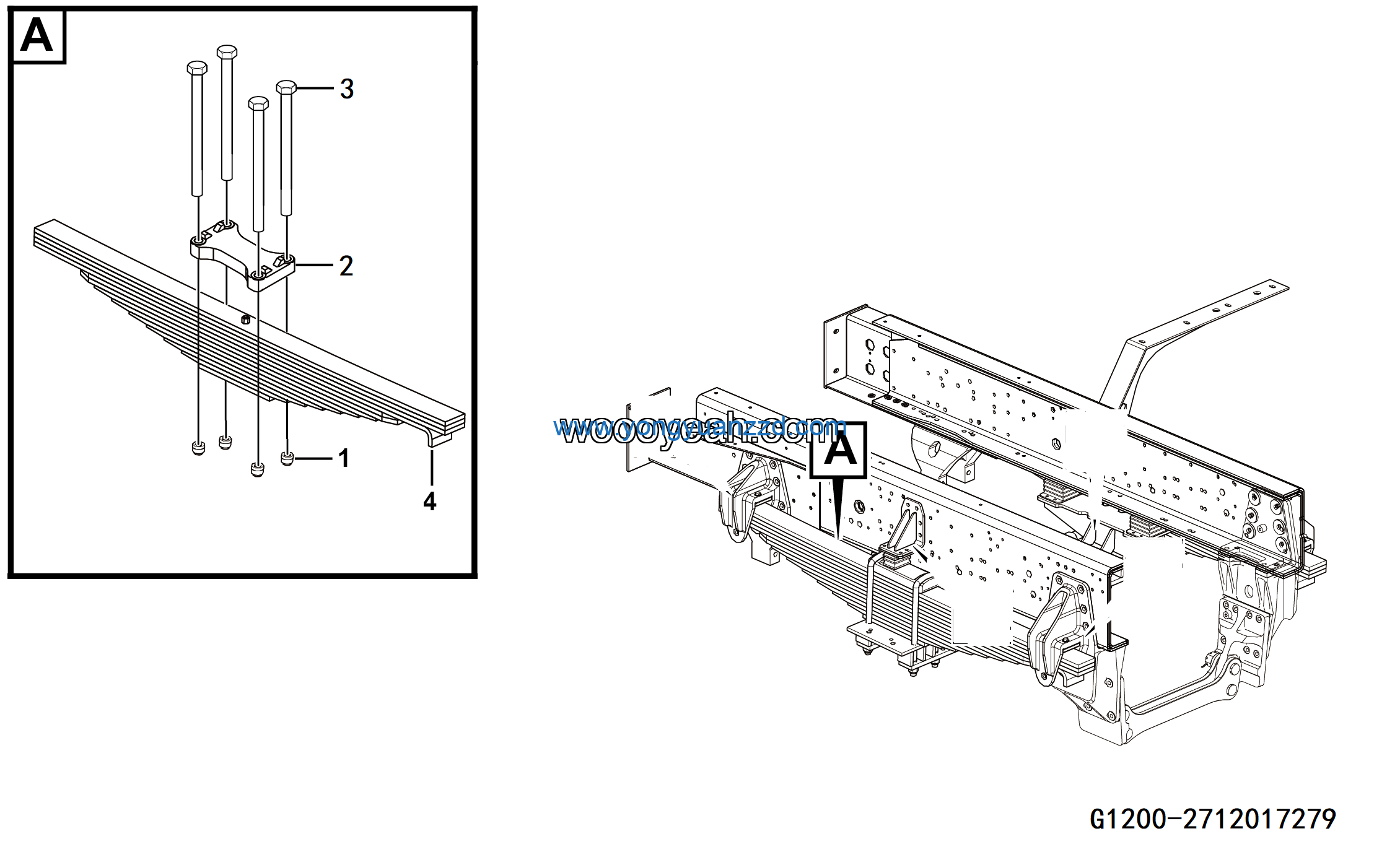

LGMG Off-Highway Dump Truck 2024 – Front leaf spring installation assy 6152-MT106 – G1200-2712017279
Category: 2024 > Off-Highway Dump Truck > CMS50F > CS500W4E0A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Self-locking nut with the shoulder | 27120103611 | 8 |
| 2 | Spring pressing block | 27120115601 | 2 |
| 3 | Bolt | 27120171941 | 8 |
| 4 | FR leaf spring assy LG12-4N13B100H18/20 | 4110706152 | 2 |
