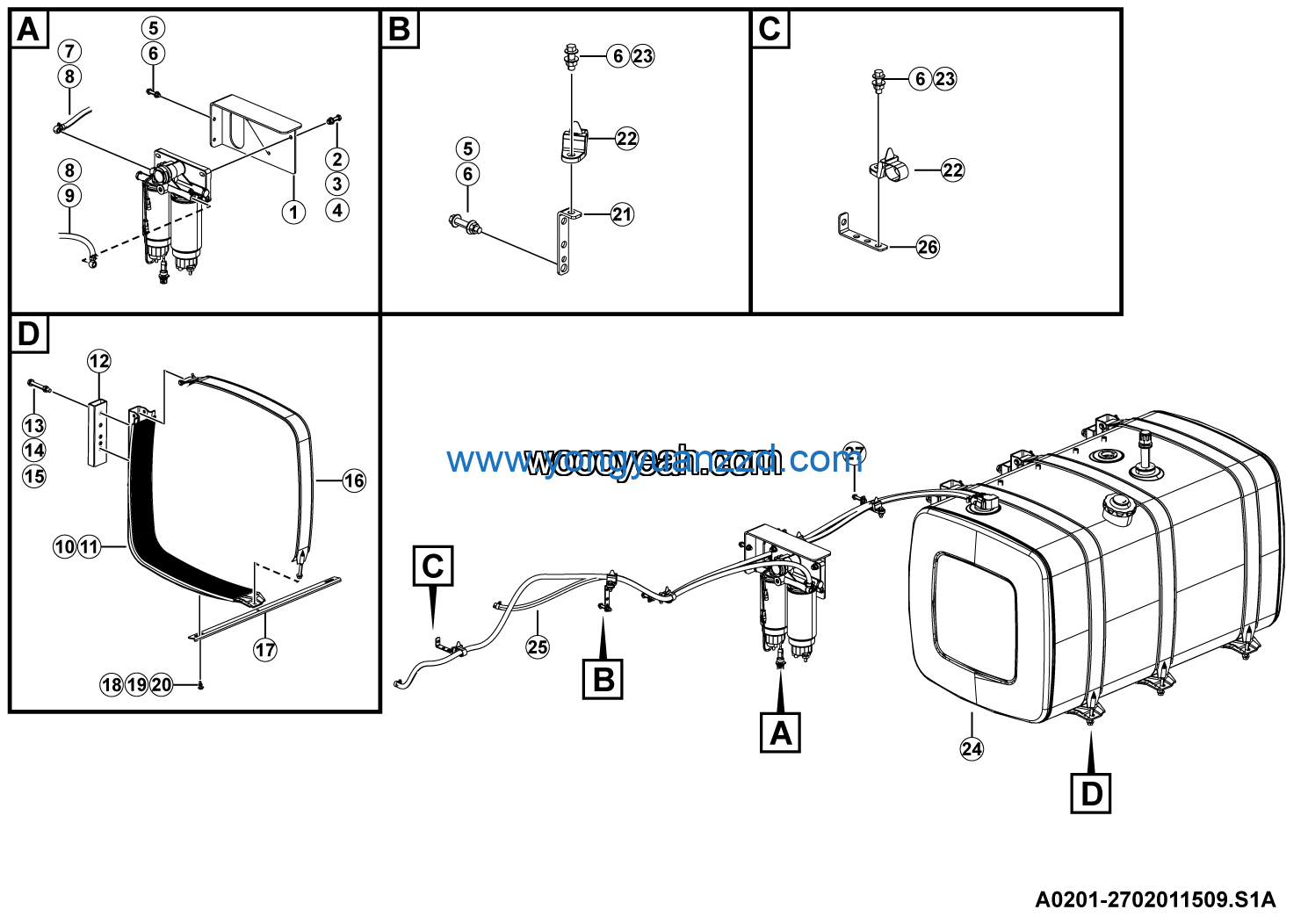

LGMG Off-Highway Dump Truck 2024 – Fuel tank assy – A0201-2702011509.S1A
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3E0M003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket LG02-TJ-02 | 4190708648 | 3 |
| 2 | Bracket pad belt LG02-TJ-04 | 4190708653 | 3 |
| 3 | Bracket backing plate LG02-TJ-03 | 4190708649 | 3 |
| 4 | Bolt GB5782-M16*120EpZn-10.9 | 4011000622 | 6 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 6 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 7 | Cable tie assy LG02-ZD-02 | 4190708650 | 3 |
| 8 | Tie rod LG02-RYX-023（630L fuel tank） | 4110706685 | 1 |
| 9 | Bolt GB5782-M8*30EpZn-8.8 | 4011010172 | 3 |
| 10 | Washer GB96.1-8EpZn-300HV | 4015000256 | 3 |
| 11 | Water cold treasure bracket welding | 27020110921 | 1 |
| 12 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 3 |
| 13 | Plate | 27010113352 | 4 |
| 14 | Cable tie HS-J117 | 4130704969 | 5 |
| 15 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 5 |
| 16 | 630L single-chamber fuel tank LG02-RYX-033 | 4190710492 | 1 |
| 17 | Tube LZB103-14*2400-P | 4049010290-006 | 1 |
| 18 | Holder | 27200147051 | 1 |
| 19 | Bolt GB16674.1-M10*55EpZn-8.8 | 4011000473 | 1 |
| 20 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 3 |
| 21 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 22 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 3 |
| 23 | Bolt GB16674.1-M10*50EpZn-8.8 | 4011000309 | 7 |
| 24 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 13 |
| 25 | Tube LZB103-14*1200-P | 4049010299-002 | 1 |
| 26 | Hose clamp JB8870-D20 | 4017000010 | 6 |
| 27 | Fuel hose LZB103-14*2200-P | 4049010230-013 | 1 |
