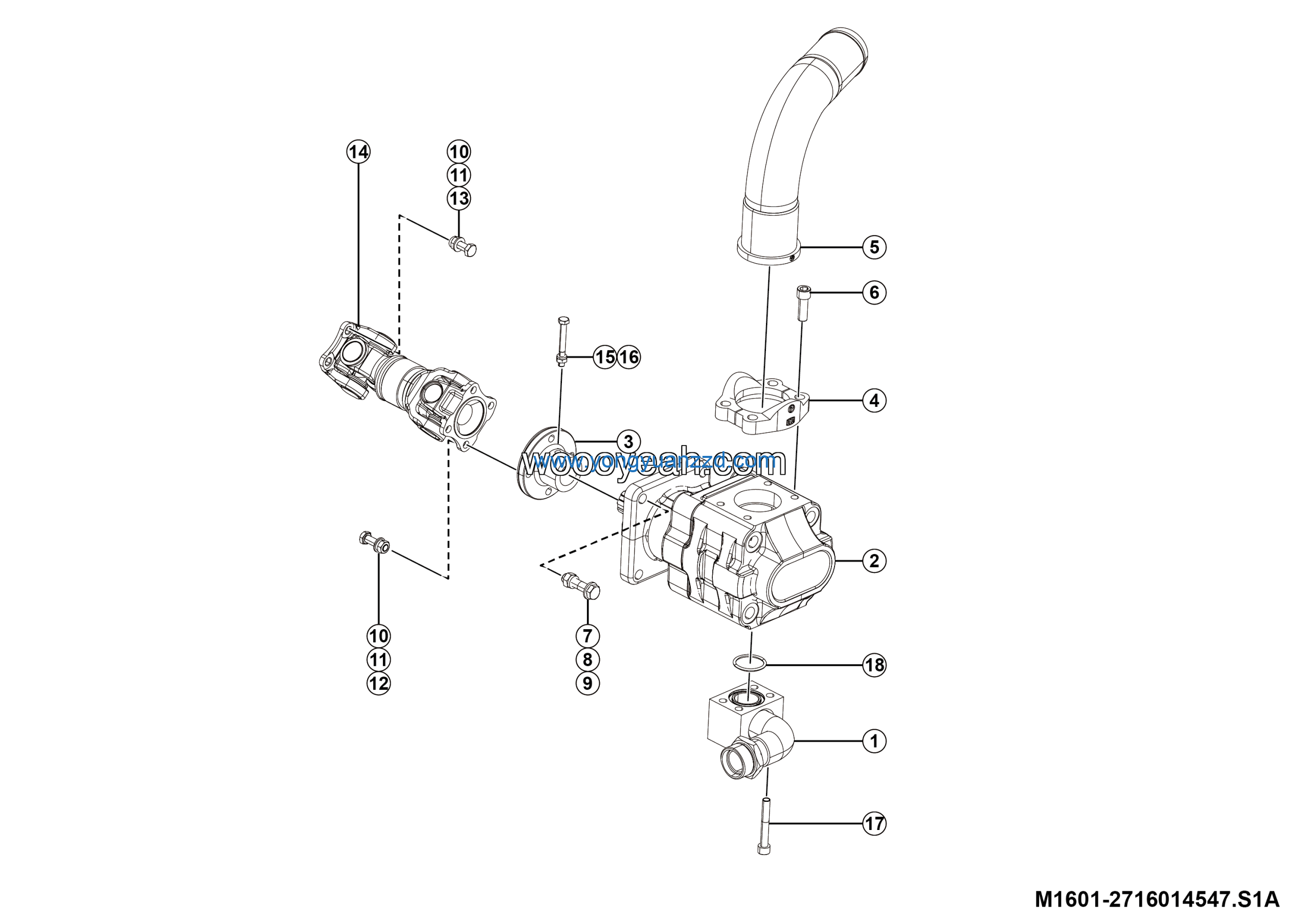

LGMG Off-Highway Dump Truck 2024 – Gear pump assy – M1601-2716014547.S1A
Category: 2024 > Off-Highway Dump Truck > MTH116M > M116MY3A2AU003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M10flZnyc-10-480 | 4013010520 | 8 |
| 2 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 8 |
| 3 | Bolt GB5783-M10*35flZnyc-10.9-480 | 4011010783 | 4 |
| 4 | Bolt GB5783-M10*30flZnyc-10.9-480 | 4011010879 | 4 |
| 5 | Power takeoff transmisson shaft LG16-CDZ01-235 | 4110706565 | 1 |
| 6 | Bolt GB5782-M8*65flZnyc-8.8-480 | 4011011175 | 1 |
| 7 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 1 |
| 8 | Screw GB70.1-M10*70flZnyc-10.9-480 | 4014010461 | 4 |
| 9 | O-ring GB3452.1-37.5*3.55G | 4030000029 | 1 |
| 10 | Oil outlet flange wldmt 01 | 27160144061 | 1 |
| 11 | Gear pump cbgje-f3160-bf3h | 4120715855 | 1 |
| 12 | Pump coupling | 4120001055 | 1 |
| 13 | Split flange sae fhs310cfx | 4120715835 | 2 |
| 14 | Pipe wldmt 001 | 27160145361 | 1 |
| 15 | Screw GB70.1-M12*35flZnyc-10.9-480 | 4014010282 | 4 |
| 16 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 4 |
| 17 | Bolt GB5782-M12*50flZnyc-10.9-480 | 4011011025 | 4 |
| 18 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
