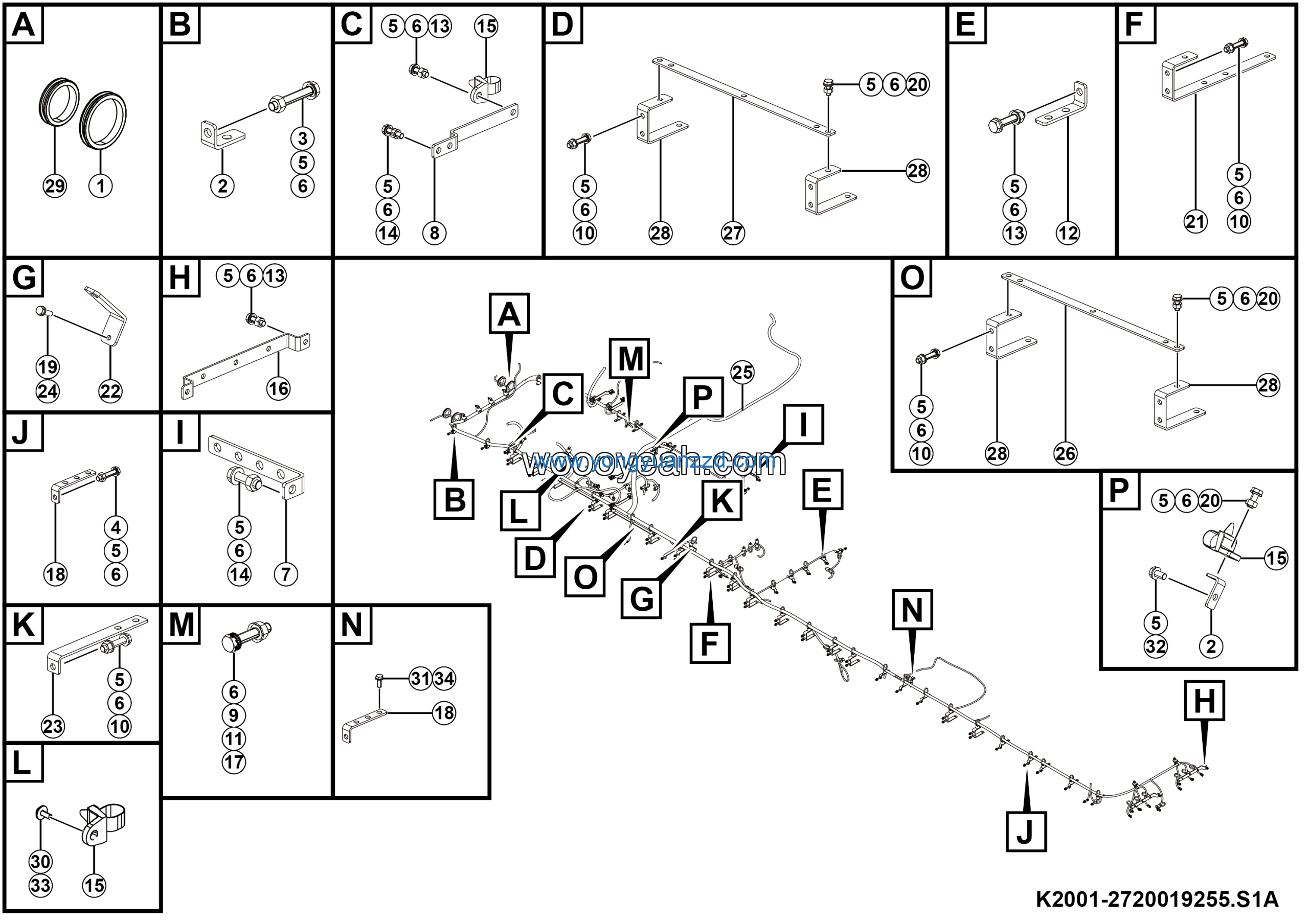

LGMG Off-Highway Dump Truck 2024 – Harness assy – K2001-2720019255.S1A
Category: 2024 > Off-Highway Dump Truck > MTE106H > C106HE0A0A504
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*50flZnyc-8.8-480 | 4011010976 | 33 |
| 2 | Double sack wedge lock washer HF10 | 4190708409 | 3 |
| 3 | Low voltage cable bracket 80*35*20 | 27200155291 | 12 |
| 4 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 16 |
| 5 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 17 |
| 6 | Cable tie 14400342 | 4130703098 | 18 |
| 7 | Bracket 364*30*34 | 27200155181 | 2 |
| 8 | Washer GB862.2-10-65Mn | 4015010586 | 3 |
| 9 | Holder | 27200141551 | 11 |
| 10 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 7 |
| 11 | Jacket | 27200154061 | 2 |
| 12 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 9 |
| 13 | C-bracket (extended) 300*30*80 | 27200163711 | 1 |
| 14 | Bracket | 27200184101 | 1 |
| 15 | Holder | 27340108491 | 1 |
| 16 | Bolt GB5783-M6*20flznyc-8.8-480 | 4011010744 | 7 |
| 17 | Frame harness | 27200192561 | 1 |
| 18 | Chassis electrical system | 27200160431 | 1 |
| 19 | Bracket | 27200161341 | 1 |
| 20 | C bracket 120*30*80 | 27200159971 | 15 |
| 21 | Jacket | 27200154051 | 2 |
| 22 | Holder | 27200142321 | 13 |
| 23 | Washer GB96.1-5flZnyc-300HV-480 | 4015010345 | 1 |
| 24 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 1 |
| 25 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 1 |
| 26 | Bolt GB5783-M5*16flZnyc-8.8-480 | 4011010958 | 1 |
| 27 | Bolt GB5783-M8*35flZnyc-8.8-480 | 4011010972 | 1 |
| 28 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 2 |
| 29 | Bolt GB5783-M10*60flZnyc-8.8-480 | 4011010977 | 19 |
| 30 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 153 |
| 31 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 99 |
| 32 | Bracket 150*30*20 | 27200166451 | 1 |
| 33 | Holder | 27200151471 | 6 |
| 34 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 3 |
