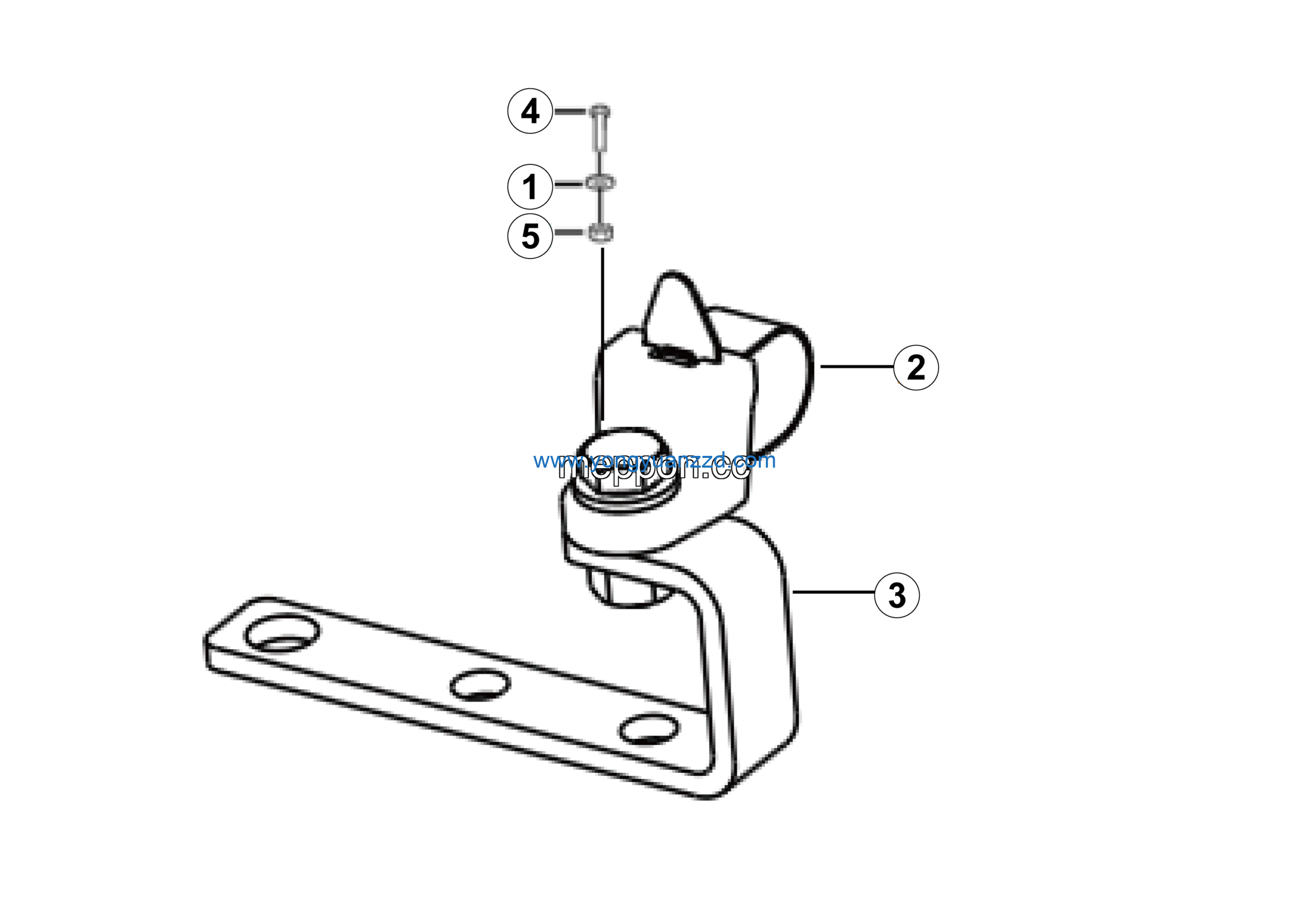

LGMG Off-Highway Dump Truck 2024 – Harness fixing assy (temporary) – L2000-2720016309
Category: 2024 > Off-Highway Dump Truck > MT86H > M086HWG23
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 2 | Cable tie 14400342 | 4130703098 | 1 |
| 3 | Bracket 150*50*25 | 27020112821 | 1 |
| 4 | Bolt GB5782-M12*30EpZn-8.8 | 4011000770 | 1 |
| 5 | Nut GB6170-M12EpZn-10 | 4013000150 | 1 |
