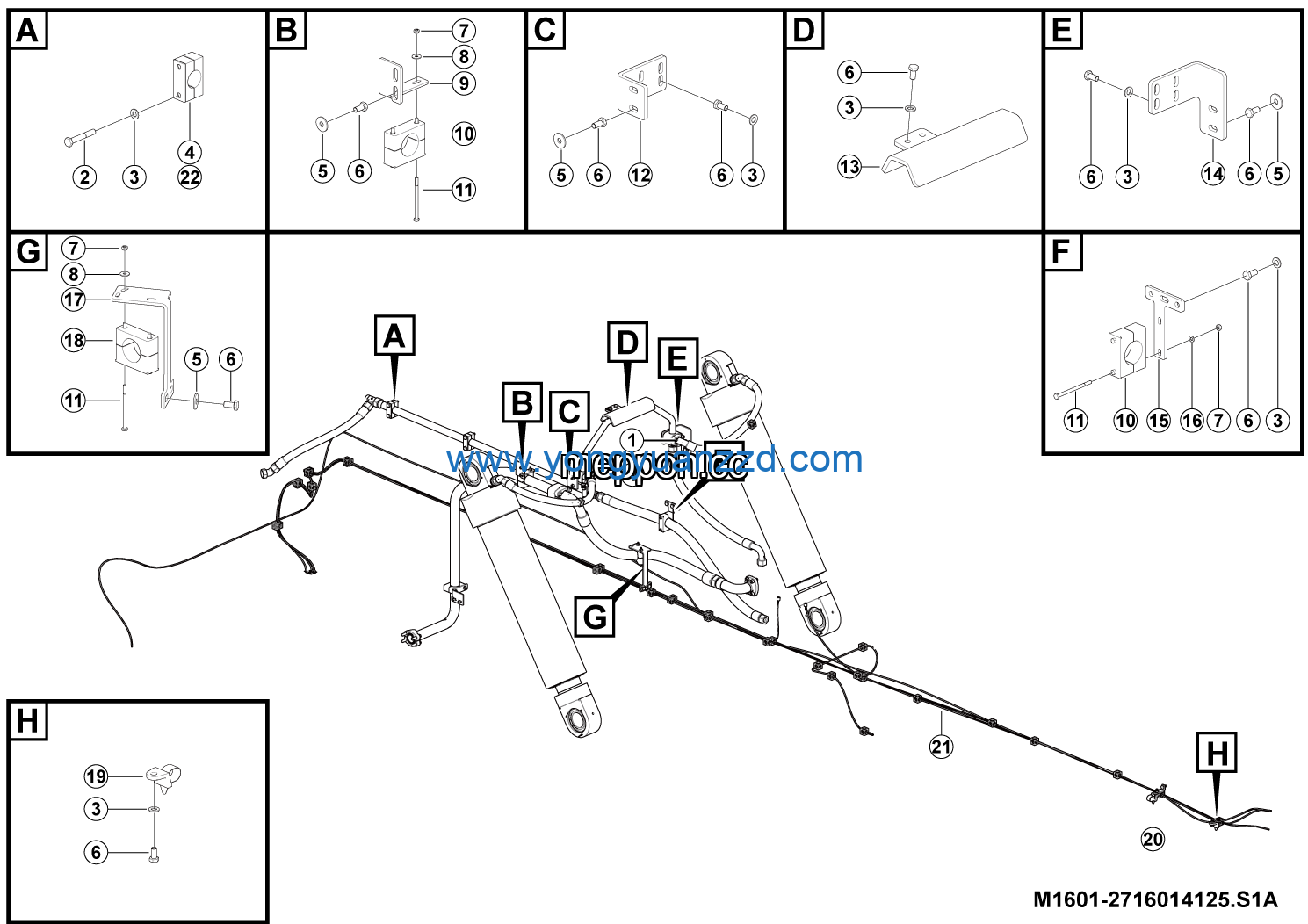

LGMG Off-Highway Dump Truck 2024 – Hoist accessories assy – M1601-2716014125.S1A
Category: 2024 > Off-Highway Dump Truck > RT100 > R1000W3A2A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Tube clamp TLPG16-648 | 4120710534 | 2 |
| 2 | Bolt GB5782-M6*90EpZn-8.8 | 4011000871 | 6 |
| 3 | L-bracket 130*80*8 | 27160135551 | 1 |
| 4 | Protective plate | 27160135561 | 1 |
| 5 | Left fixing plate | 27160136221 | 1 |
| 6 | Bracket | 27160137161 | 1 |
| 7 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 8 | Bracket130*116*80 | 27160136411 | 1 |
| 9 | Single-pipe clamp TLPG6-648 | 4120712865 | 1 |
| 10 | Cable tie HS-J117 | 4130704969 | 1 |
| 11 | Screw GB70.1-M10*35EpZn-8.8 | 4014000227 | 8 |
| 12 | Air hose bracket assy | 27160135951 | 1 |
| 13 | Hoist lines assy | 27160141261 | 1 |
| 14 | Pipe clamp cover plate 80*30*3 | 27160137811 | 1 |
| 15 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 6 |
| 16 | Washer GB97.1-10EpZn-300HV | 4015000162 | 21 |
| 17 | Single-pipe clamp 36 | 27160136501 | 3 |
| 18 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 19 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 23 |
| 20 | Nut GB6170-M6EpZn-8 | 4013000028 | 6 |
| 21 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 22 | Bracket | 27160137151 | 1 |
