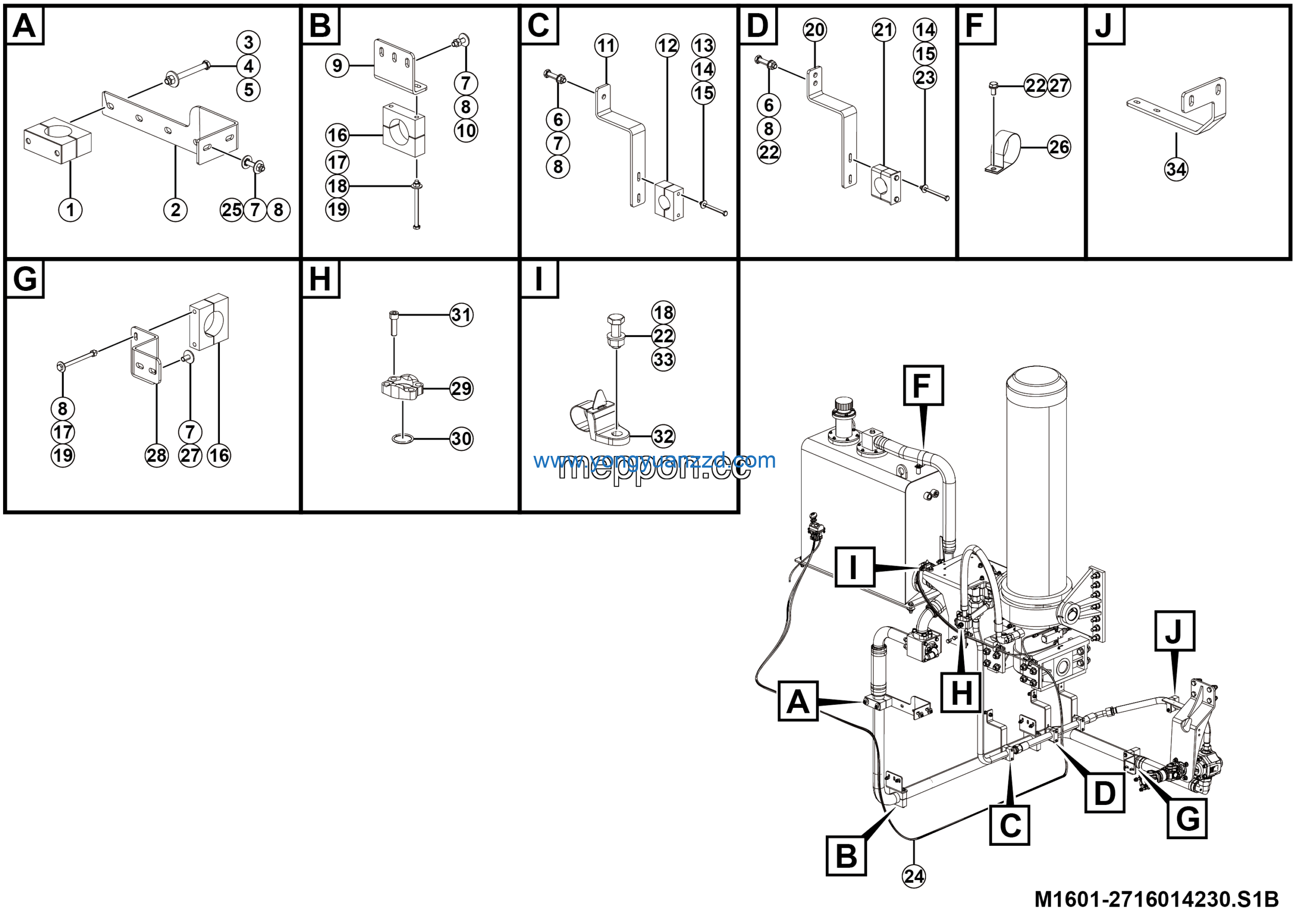

LGMG Off-Highway Dump Truck 2024 – Hoist accessories assy – M1601-2716014230.S1B
Category: 2024 > Off-Highway Dump Truck > MTE106H > C106HE0A0A901
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 2 | Bracket | 27160138131 | 1 |
| 3 | Clamp-34 | 27160134361 | 2 |
| 4 | Bolt GB5782-M6*75flZnyc-8.8-480 | 4011011080 | 4 |
| 5 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 6 |
| 6 | Nut GB6170-M6flZnyc-8-480 | 4013010293 | 6 |
| 7 | Single-hole pipe clamp-60 | 27160134371 | 3 |
| 8 | Bolt GB5782-M8*110EpZn-8.8 | 4011000588 | 6 |
| 9 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 10 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 11 | Clamp THPG16-460.3 | 4120710338 | 1 |
| 12 | Bracket 250*115*6 | 27160143621 | 1 |
| 13 | Tube clamp TLPG12-538 | 4120709343 | 1 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 15 | Bolt GB5782-M6*80flZnyc-8.8-480 | 4011011081 | 2 |
| 16 | Hoist lines assy | 27160142311 | 1 |
| 17 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 18 | Reinforced clamp R1-D70-M10 | 4190707985 | 1 |
| 19 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 20 | Bracket 244*120*6 | 27160142431 | 1 |
| 21 | Split flange LGB117-310491 | 4041000026 | 1 |
| 22 | Bracket | 27160142421 | 1 |
| 23 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 1 |
| 24 | Screw GB70.1-M10*35EpZn-8.8 | 4014000227 | 4 |
| 25 | Cable tie 14400342 | 4130703098 | 4 |
| 26 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 27 | Bracket | 27160138921 | 1 |
| 28 | Bolt GB5782-M12*120EpZn-8.8 | 4011000054 | 2 |
| 29 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 30 | Nut GB6170-M12EpZn-8 | 4013000011 | 2 |
| 31 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
| 32 | Washer GB96.1-10EpZn-300HV | 4015000197 | 10 |
| 33 | Nut GB6170-M10EpZn-8 | 4013000007 | 11 |
| 34 | Bracket 120*50*6 | 27160142441 | 2 |
