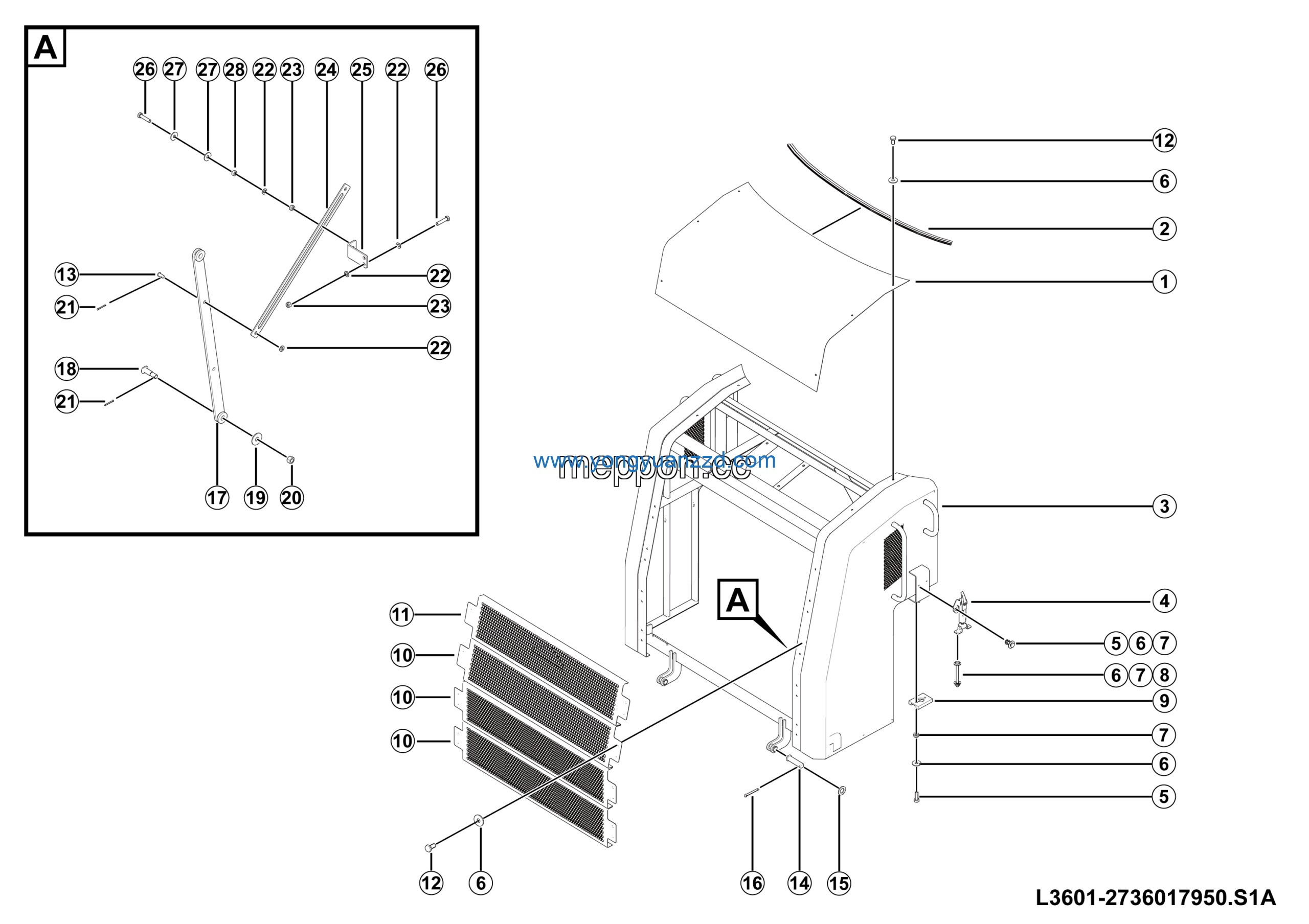

LGMG Off-Highway Dump Truck 2024 – Hood installation – L3601-2736017950.S1A
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A304
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | FIRST CROSSWISE BEAM RIGHT CONNECT PLATE | 27360117161 | 3 |
| 2 | Plate | 27360117171 | 1 |
| 3 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 22 |
| 4 | Pin GB882-B10*20EpZn-35 | 4016000128 | 1 |
| 5 | Pin GB882-B24*90EpZn-35 | 4016010151 | 2 |
| 6 | Washer GB97.1-24EpZn-300HV | 4015000167 | 2 |
| 7 | Pin GB91-5*40EpZn-Q235A | 4016000127 | 2 |
| 8 | Engine hood limiting rod weldment | 27360167751 | 1 |
| 9 | Pin 43.5*16*7 | 27360166591 | 2 |
| 10 | Washer GB96.1-14EpZn-300HV | 4015000188 | 2 |
| 11 | Cover plate | 27360179511 | 1 |
| 12 | Nut GB6170-M14flZnyc-8-480 | 4013010366 | 2 |
| 13 | Pin GB91-3.2*26EpZn-Q235A | 4016000179 | 3 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 3 |
| 16 | Side tie rod 600*35*4 | 27360167771 | 1 |
| 17 | Bent plate 97*50*5 | 27360167741 | 1 |
| 18 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 3 |
| 19 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 20 | Nut GB6171-M10*1.5LEpZn-8 | 4013000238 | 1 |
| 21 | PLATE | 27360117151 | 1 |
| 22 | Hood weldment | 27360170552 | 1 |
| 23 | Lock chain DK636-1（ShengJiu） | 4190704689 | 2 |
| 24 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 8 |
| 25 | Washer GB96.1-8EpZn-300HV | 4015000256 | 38 |
| 26 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 27 | Bolt GB5782-M8*85EpZn-8.8 | 4011000303 | 4 |
| 28 | Plate | 27360131911 | 2 |
