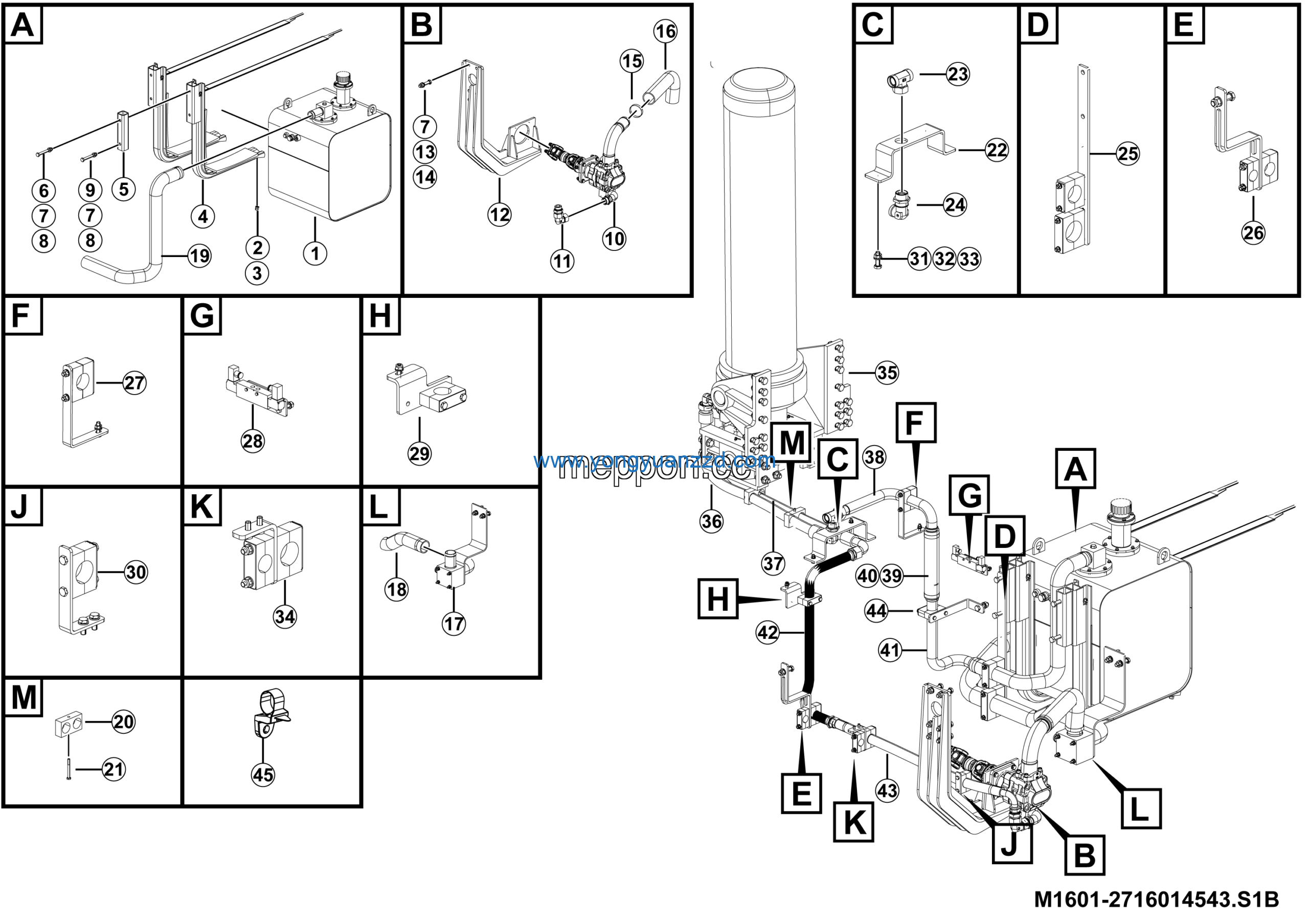

LGMG Off-Highway Dump Truck 2024 – Hyd hoist assy – M1601-2716014543.S1B
Category: 2024 > Off-Highway Dump Truck > MTH116M > M116MY3A2AU004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Gear pump assy | 27160145471 | 1 |
| 2 | 90° fitting ew30somdcf | 4120716153 | 1 |
| 3 | Bracket assy 001 | 27160144341 | 1 |
| 4 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 6 |
| 5 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 6 |
| 6 | Butterfly spring clamp φ70-φ92 | 4190708164 | 4 |
| 7 | Oil suction hose 02 | 27160144001 | 1 |
| 8 | Oil suction block assy | 27160145571 | 1 |
| 9 | Oil suction hose 70*6 | 27160143991 | 1 |
| 10 | Oil return hose 56*6 | 27160144011 | 1 |
| 11 | Hyd oil tank assy | 27160143901 | 1 |
| 12 | Clamp ttpg1-540 | 4120716137 | 3 |
| 13 | Bolt GB5782-M8*75flZnyc-8.8-480 | 4011010995 | 3 |
| 14 | Bracket 393*80*107 | 27160146181 | 1 |
| 15 | Tee et35lomdcf | 4120716129 | 1 |
| 16 | Bulkhead fitting wsv35lomdcf | 4120716128 | 1 |
| 17 | Bracket assy 07 | 27160145621 | 1 |
| 18 | Bracket assy 04 | 27160145511 | 1 |
| 19 | Bracket assy 05 | 27160145521 | 1 |
| 20 | Air-operated solenoid valve assy | 27160145461 | 1 |
| 21 | Bracket assy 02 | 27160145491 | 1 |
| 22 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 2 |
| 23 | Bracket assy 06 | 27160145531 | 1 |
| 24 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 3 |
| 25 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 3 |
| 26 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 3 |
| 27 | Bracket assy 01 | 27160145481 | 1 |
| 28 | Hoist cylinder assy | 27160145671 | 1 |
| 29 | Hose assy f481caca353520-1140 | 4120716158 | 1 |
| 30 | Hose f731c91c303020-1380 | 4120716747-001 | 1 |
| 31 | Oil return pipe wldmt 01 | 27160144031 | 1 |
| 32 | Oil return hose 68*6*340 | 27160144021 | 1 |
| 33 | Nut GB6170-M12flZnyc-8-480 | 4013010295 | 4 |
| 34 | Butterfly spring clamp φ57-φ79 | 4190708163 | 4 |
| 35 | Pipe wldmt 03 | 27160144121 | 1 |
| 36 | Pipe wldmt 01 | 27160144041 | 1 |
| 37 | Hose assy f731c91c303020-1140 | 4120716156 | 1 |
| 38 | Bracket assy 03 | 27160145501 | 1 |
| 39 | Cable tie HS-J117 | 4130704969 | 1 |
| 40 | Hydraulic oil tank bracket assembly | 27160108901 | 2 |
| 41 | Tube | 27160109731 | 2 |
| 42 | Bolt GB5782-M16*130flZnyc-10.9-480 | 4011011526 | 2 |
| 43 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 10 |
| 44 | Nut GB6185.1-M16flZnyc-10-480 | 4013010236 | 4 |
| 45 | Bolt GB5782-M16*140flZnyc-10.9-480 | 4011010901 | 2 |
