LGMG Off-Highway Dump Truck 2024 – Hyd-pneumatic spring assy lg12-d130d160l190m800 – G0700-4110707525
Category: 2024 > Off-Highway Dump Truck > MTH116M > M116MY3A2AU004

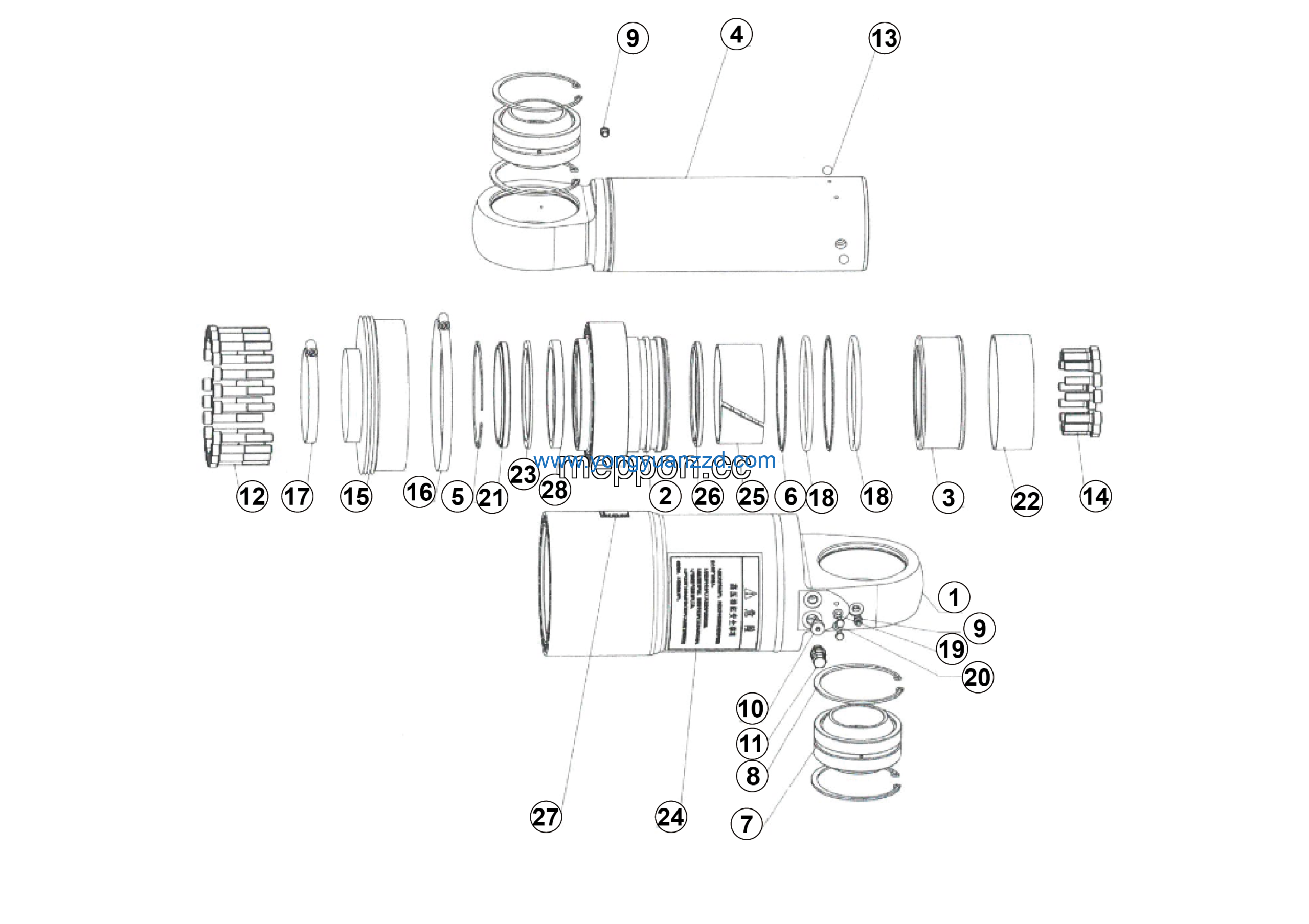

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Threaded plug 210000204232 | 4120712520005 | 1 |
| 2 | Air filling valve 210000408138 | 4120712520026 | 1 |
| 3 | Screw | 4110707723010 | 22 |
| 4 | Ball 210000207469 | 4120712520014 | 2 |
| 5 | Screw 210000205885 | 4120712520011 | 14 |
| 6 | Dust cover | 4110707723020 | 1 |
| 7 | Hose clamp 210000207448 | 4120712520024 | 1 |
| 8 | Hose clamp 210000207455 | 4120712520018 | 1 |
| 9 | O-ring 110000000068 | 4120712520019 | 2 |
| 10 | Washer 210000209700 | 4120712520013 | 2 |
| 11 | Cylinder barrel | 4110707525201 | 1 |
| 12 | Bolt 210000319246 | 4120712520015 | 2 |
| 13 | Wiperseal | 4110707723025 | 1 |
| 14 | Guide ring | 4110707723017 | 1 |
| 15 | Scarf cut backup ring | 4110707723019 | 1 |
| 16 | Suspenison cylinder nameplate | 4120709389005 | 1 |
| 17 | Guide ring | 4110707723016 | 1 |
| 18 | Buffer ring | 4110707723023 | 1 |
| 19 | Lgmg nameplate | 4110705630027 | 1 |
| 20 | Sealing ring | 4110707525206 | 1 |
| 21 | Guide sleeve | 4110707525202 | 1 |
| 22 | Piston | 4110707525203 | 1 |
| 23 | Piston rod | 4110707525204 | 1 |
| 24 | Wiper seal backup ring | 4110707723026 | 1 |
| 25 | O-ring backup ring 110000000192 | 4120712520006 | 2 |
| 26 | Bearing 210000191937 | 4120712520016 | 2 |
| 27 | Snap ring 210000208424 | 4120712520009 | 4 |
| 28 | Grease nipple 210000209180 | 4120712520010 | 2 |
