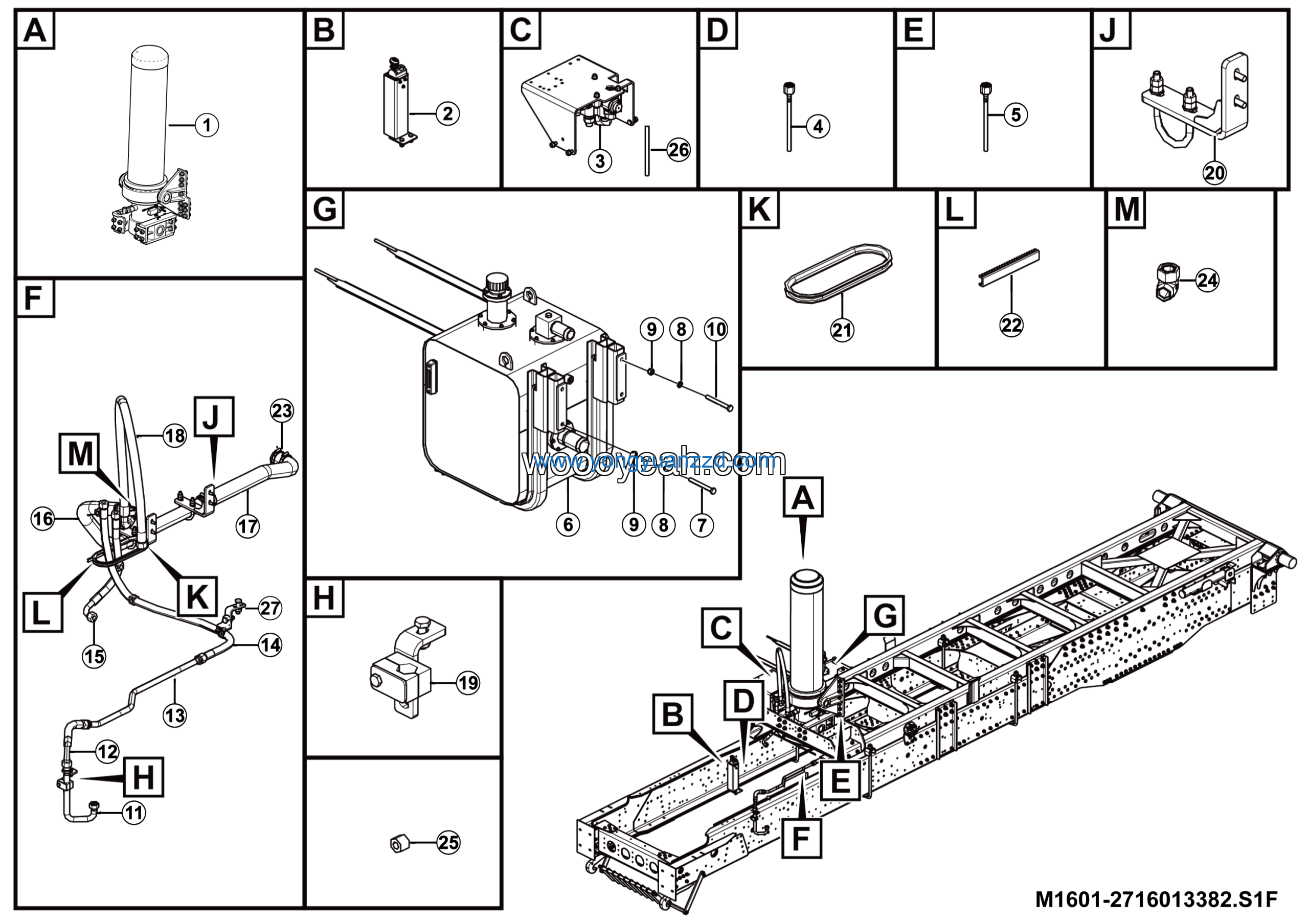

LGMG Off-Highway Dump Truck 2024 – Hydraulic lift assembly – M1601-2716013382.S1F
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M358
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M16*130EpZn-10.9 | 4011010363 | 2 |
| 2 | Pipe | 27100124891 | 1 |
| 3 | Hose F351TCCACF222212-500-FS | 4120712736-004 | 1 |
| 4 | Weld-pipe | 27150130681 | 1 |
| 5 | Hose F351TCCACA222212-1450 | 4120712115-005 | 1 |
| 6 | Hose F351TCCACF222212-550 | 4120711553 | 1 |
| 7 | Pipe welding | 27160132131 | 1 |
| 8 | Oil return hose | 27160133591 | 1 |
| 9 | HOSE | 2716011254-016 | 1 |
| 10 | Priority valve steel pipe fixing support | 27160133601 | 1 |
| 11 | Asm-202 super oil cylinder | 27160133831 | 1 |
| 12 | Steel pipe support assembly | 27160133611 | 2 |
| 13 | PIPE | 27400104391 | 1 |
| 14 | Guard | 27160106272 | 1 |
| 15 | Hose clamp JB8870-D70 | 4017000017 | 4 |
| 16 | JOINT LGB143-03625 | 4041001211 | 1 |
| 17 | Plug 4MN-18WD | 4120703163 | 1 |
| 18 | Air hose 2000 | 27160137791 | 1 |
| 19 | Bracket assy | 27160138781 | 1 |
| 20 | Plate | 27160127751 | 1 |
| 21 | Mounting gp-lift valve | 27160132081 | 1 |
| 22 | Pipe | 27160115692 | 1 |
| 23 | Pipe | 27160113252 | 2 |
| 24 | Hydraulic mailbox mounting assembly | 27160133951 | 1 |
| 25 | Bolt GB5782-M16*140EpZn-10.9 | 4011010495 | 2 |
| 26 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 27 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 4 |
