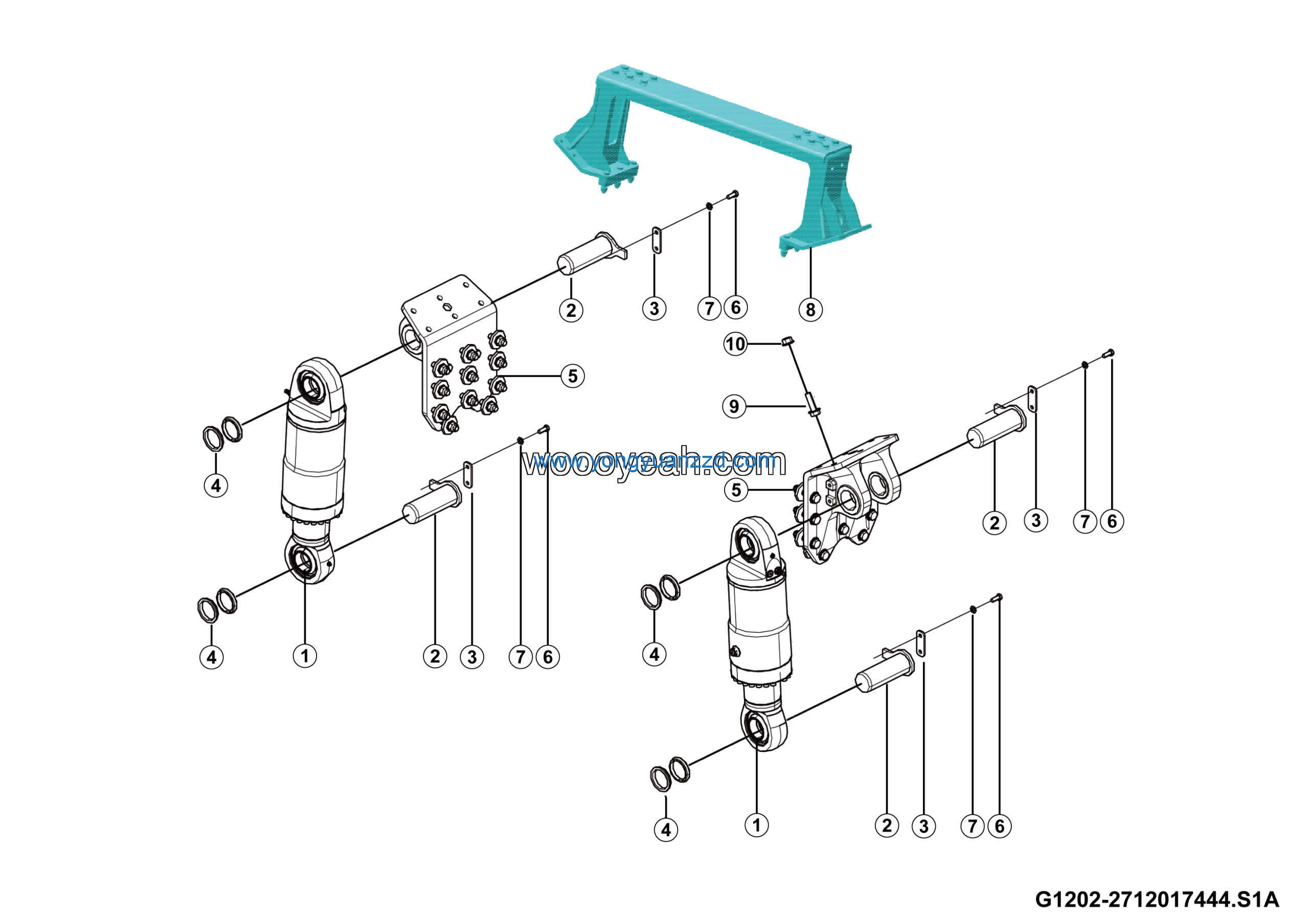

LGMG Off-Highway Dump Truck 2024 – Hydro-pneumatic spring fr mounting assembly – G1202-2712017444.S1A
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M344
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6177.2-RLM18*1.5flZnyc-12 | 4013010562 | 12 |
| 2 | FR oil & gas spring assy HL-160/120*170 | 4120709389 | 2 |
| 3 | Pin70*185 | 27120170611 | 4 |
| 4 | Palte | 27120170641 | 4 |
| 5 | Sleeve | 27120170631 | 8 |
| 6 | Hydro-pneumatic spring fr mounting assembly | 27120172971 | 2 |
| 7 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 8 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 9 | Frame | 27140189451 | 1 |
| 10 | Bolt QC340-M18*1.5*60flZnyc-12.9 | 4011011698 | 12 |
