LGMG Off-Highway Dump Truck 2024 – Oil pipe bracket assy 01 – H1501-2715013174.S1A
Category: 2024 > Off-Highway Dump Truck > MT96L > M096LW3A0M312

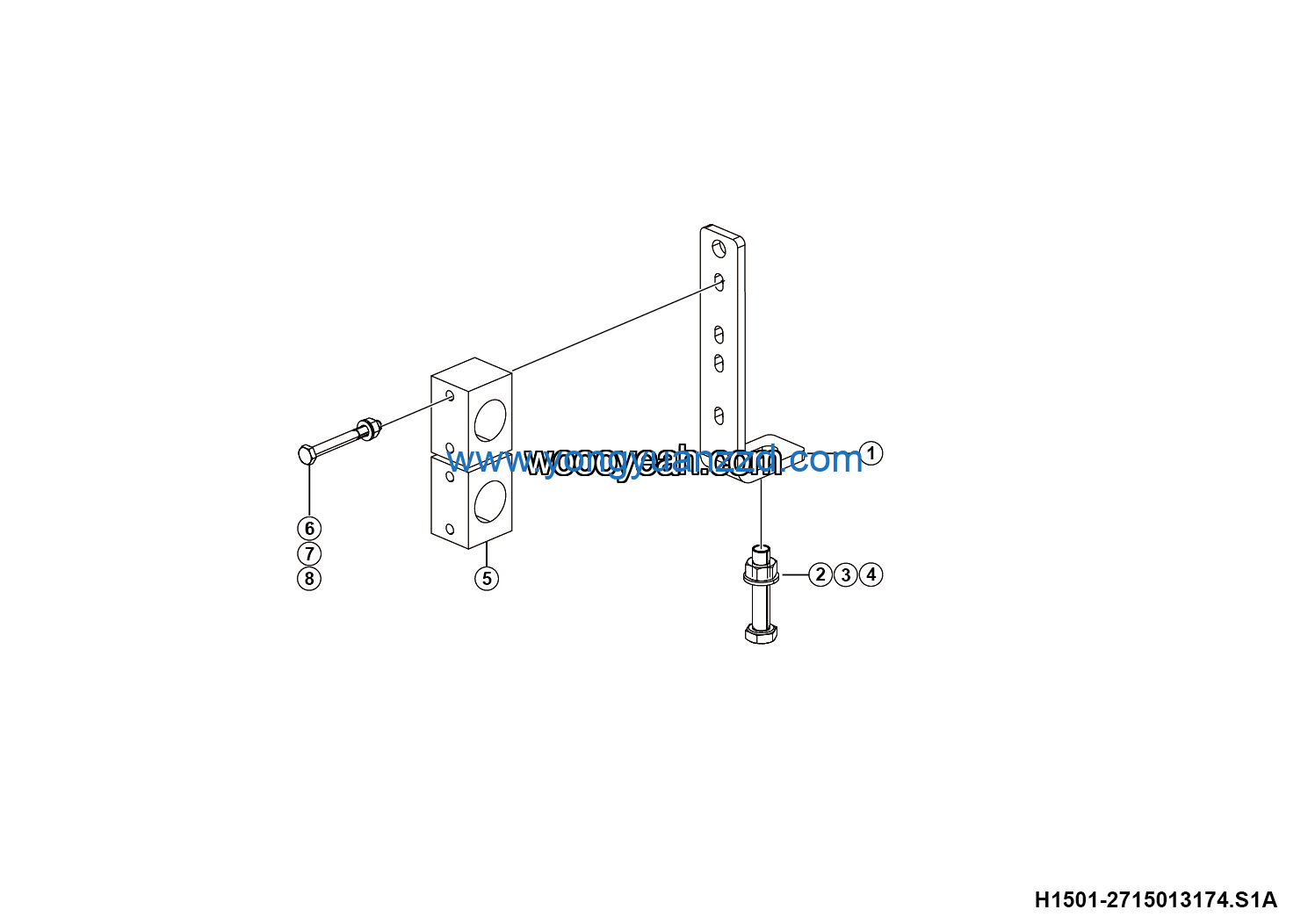

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | L-bracket 155*30*56 | 27150131721 | 1 |
| 2 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 5 | Tube clamp TLPG12-325 | 4120712119 | 2 |
| 6 | Bolt GB5782-M6*55EpZn-8.8 | 4011010517 | 4 |
| 7 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 8 | Nut GB6170-M6EpZn-8 | 4013000028 | 4 |
