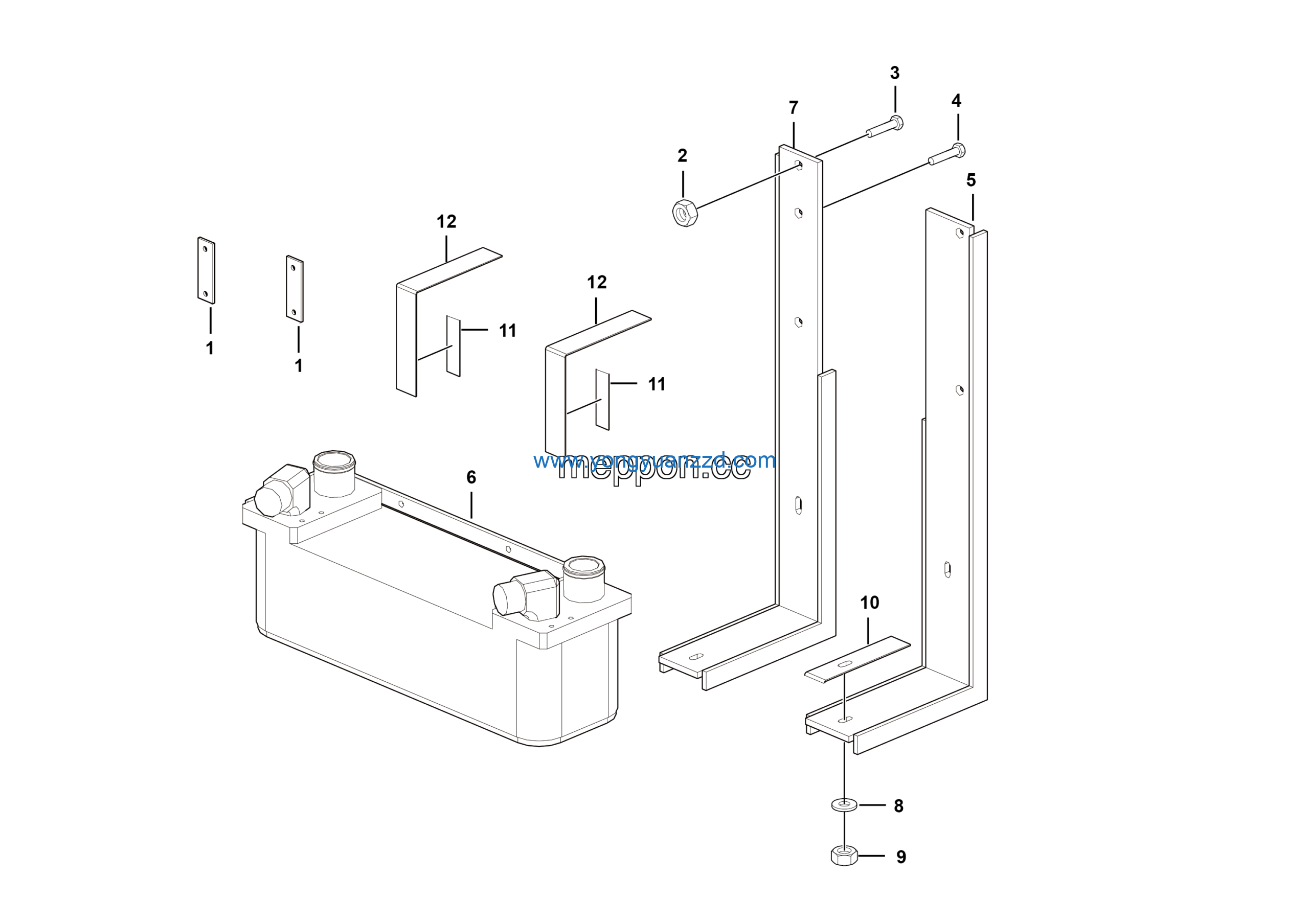

LGMG Off-Highway Dump Truck 2024 – Oil Radiator installation assy – A0300-2703014613
Category: 2024 > Off-Highway Dump Truck > CMT106 > C1060W3E0A117
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27030138261 | 2 |
| 2 | Plate | 27050106212 | 2 |
| 3 | Strap | 27030123171 | 2 |
| 4 | Backing plate | 27020101971 | 2 |
| 5 | Nut GB6170-M16EpZn-10 | 4013000205 | 2 |
| 6 | Bolt GB5783-M16*50-10.9 | 4011010364 | 2 |
| 7 | Bolt GB5783-M16*70EpZn-10.9 | 4011010204 | 6 |
| 8 | Right support | 27030123151 | 1 |
| 9 | Oil cooler | 4110704893 | 1 |
| 10 | 乐福 support | 27030123121 | 1 |
| 11 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
