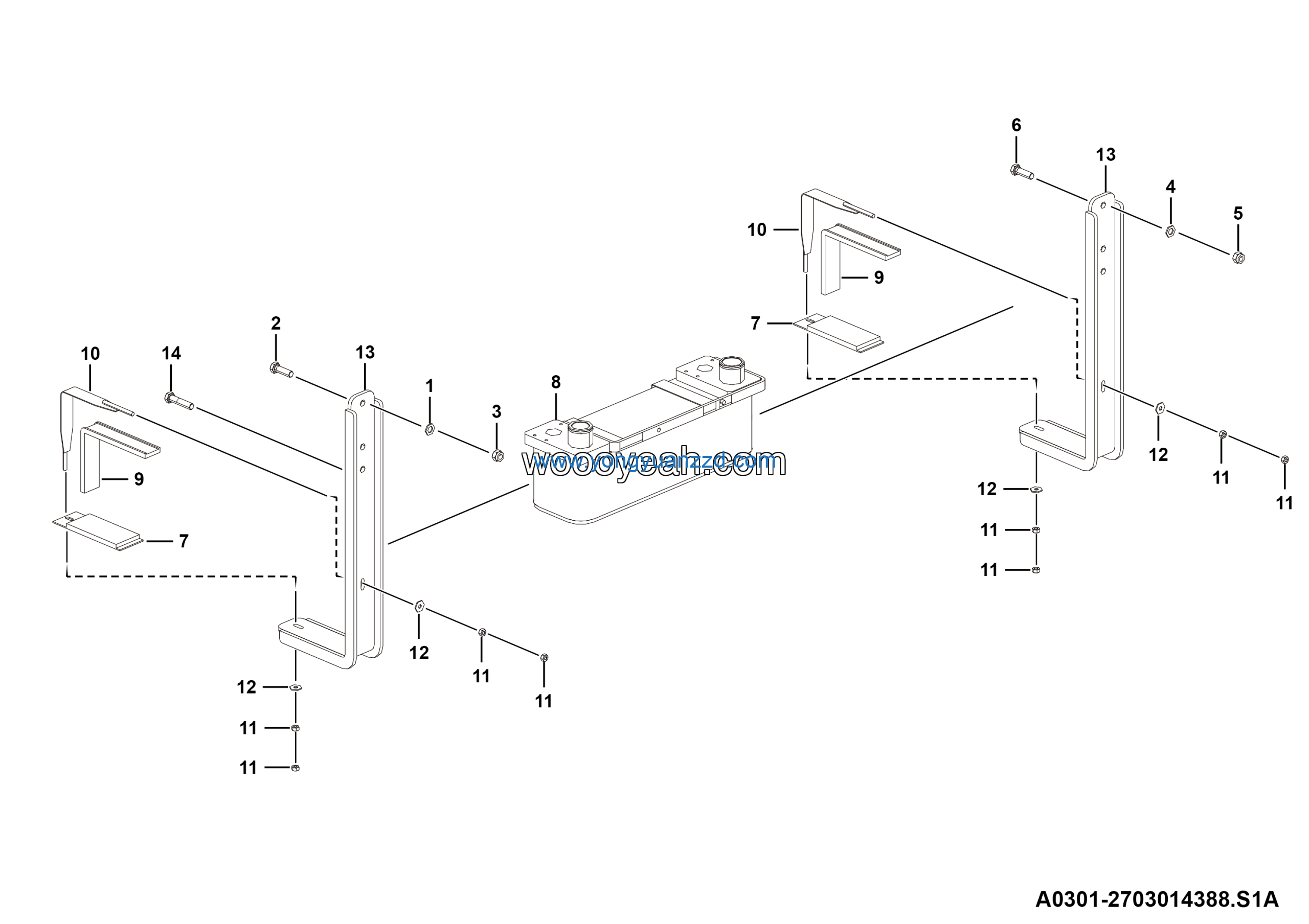

LGMG Off-Highway Dump Truck 2024 – Oil Radiator installation assy – A0301-2703014388.S1A
Category: 2024 > Off-Highway Dump Truck > CMT66A > C066AW3E0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Strap | 27030107251 | 2 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 3 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 4 | Support | 27030143891 | 2 |
| 5 | Bolt GB5782-M16*70EpZn-8.8 | 4011000231 | 2 |
| 6 | Washer GB97.1-16EpZn-300HV | 4015000181 | 1 |
| 7 | Bolt GB5782-M16*50EpZn-8.8 | 4011000510 | 1 |
| 8 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 1 |
| 9 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 2 |
| 10 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 2 |
| 11 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 2 |
| 12 | Plate | 27050106201 | 2 |
| 13 | Oil cooler | 4110001236 | 1 |
| 14 | Plate | 27050106212 | 2 |
