LGMG Off-Highway Dump Truck 2024 – Parking brake assy – J1101-2711011668.S1A
Category: 2024 > Off-Highway Dump Truck > RTH100 > R1000Y3A0A110

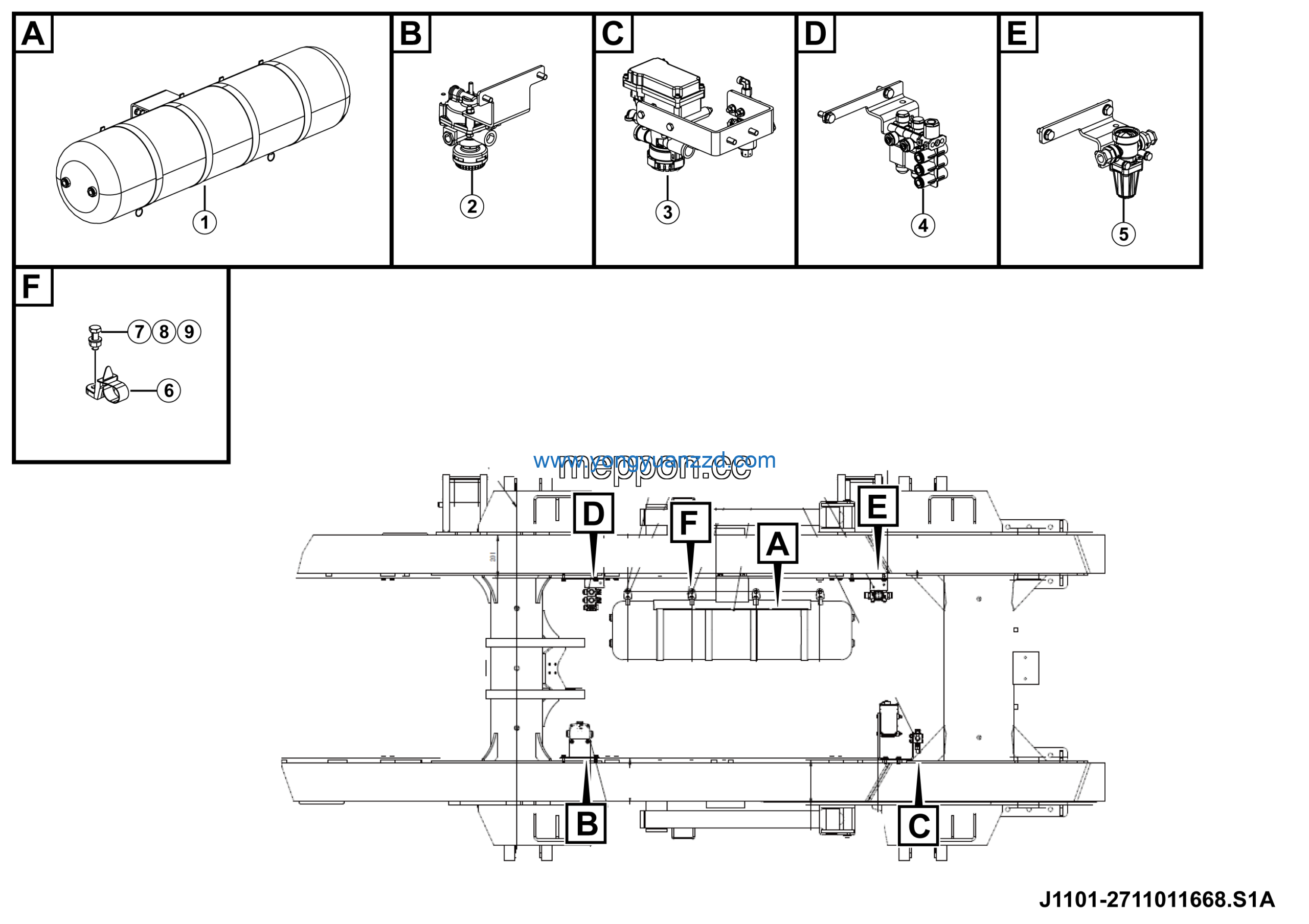

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 60l air reservoir and mounting assy | 27110116591 | 1 |
| 2 | Relay valve assy | 27110116631 | 1 |
| 3 | Epb module assy | 27110116691 | 1 |
| 4 | Two solenoid valves assy | 27110116621 | 1 |
| 5 | Pressure limiting valve assy | 27110116601 | 1 |
| 6 | Cable tie 14400342 | 4130703098 | 4 |
| 7 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 4 |
| 8 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 4 |
| 9 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 4 |
