LGMG Off-Highway Dump Truck 2024 – Plate – J1101-2711011300.S1A
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M359

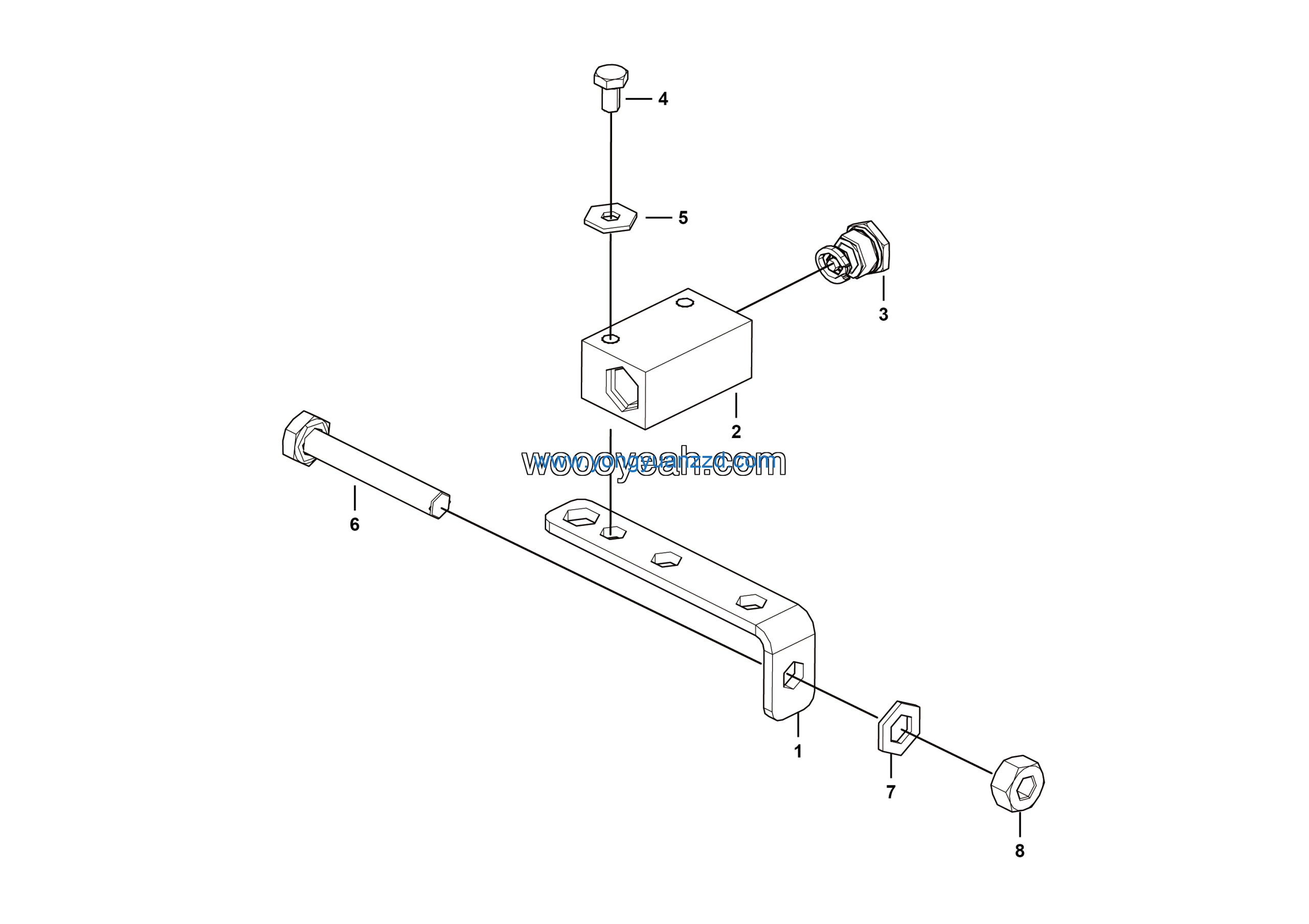

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27010113352 | 1 |
| 2 | Plate | 27110112991 | 1 |
| 3 | Nut seat | 27110107611 | 2 |
| 4 | Bolt GB5783-M6*10EpZn-8.8 | 4011000866 | 1 |
| 5 | Washer GB96.1-6EpZn-300HV | 4015000198 | 1 |
| 6 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 1 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
