LGMG Off-Highway Dump Truck 2024 – Preheat electrical system – K3500-2735010106
Category: 2024 > Off-Highway Dump Truck > MT96L > M096LW3A0M317

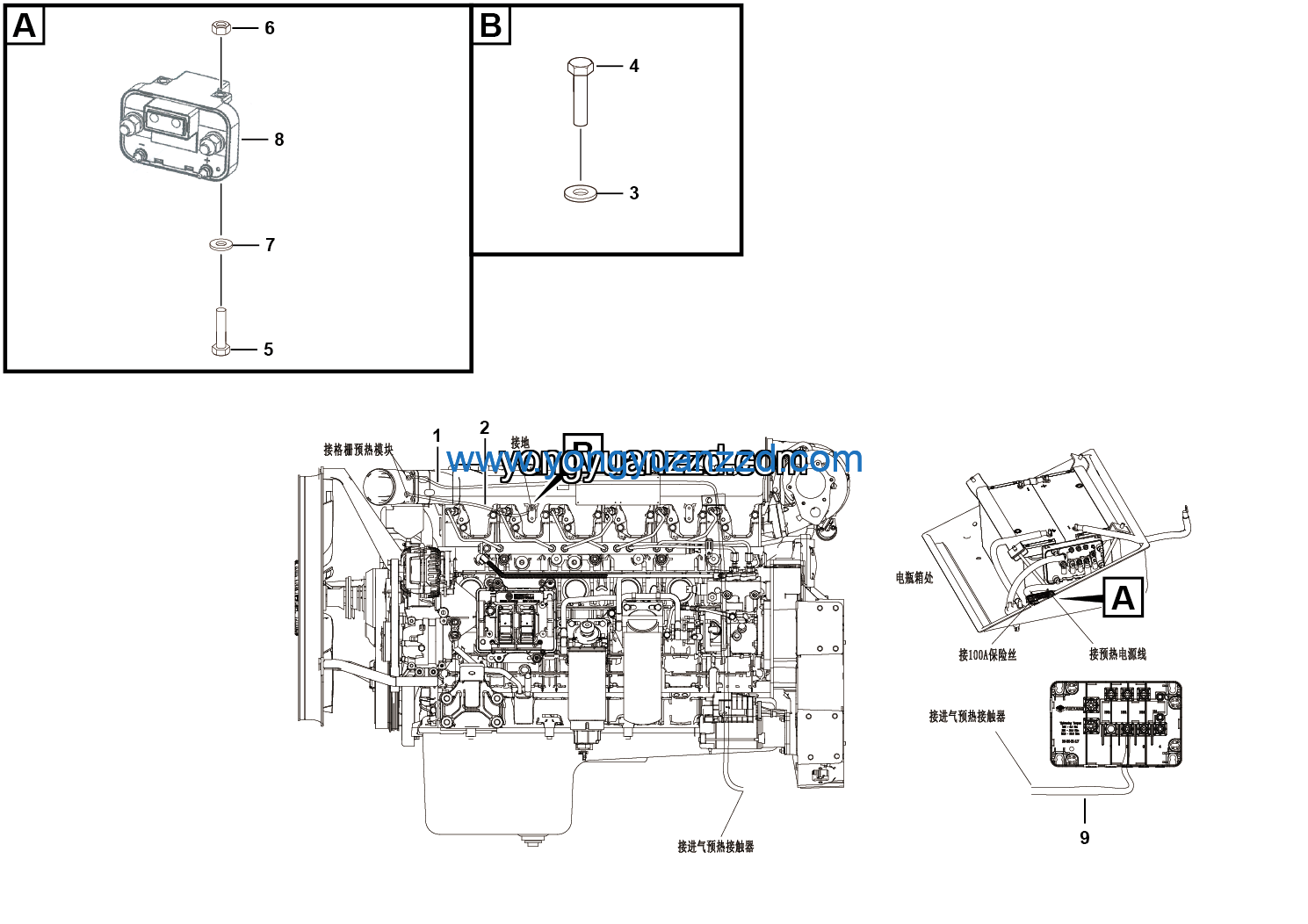

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Power wire p16*5500 | 27350101051 | 1 |
| 2 | Power wire p35*350 | 27350101081 | 1 |
| 3 | Washer GB96.1-8EpZn-300HV | 4015000256 | 1 |
| 4 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 1 |
| 5 | Bolt GB5783-M5*16EpZn-8.8 | 4011010096 | 2 |
| 6 | Nut GB6170-M5EpZn-8 | 4013010029 | 2 |
| 7 | Washer GB97.1-5EpZn-300HV | 4015000110 | 2 |
| 8 | Preheating relay HHZ H20-2-24R | 4130704101 | 1 |
| 9 | Power wire p35*350 | 27350101071 | 1 |
