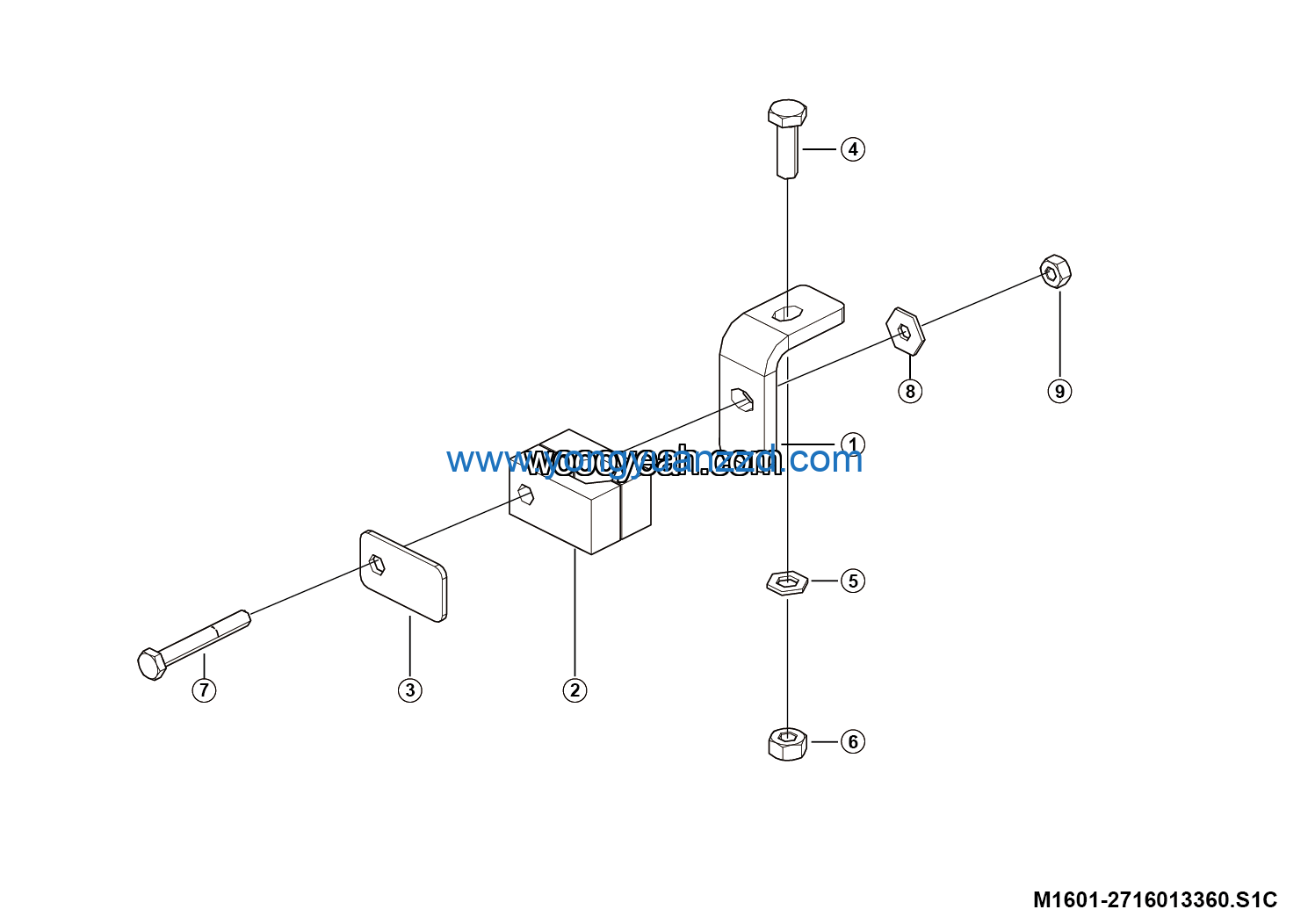

LGMG Off-Highway Dump Truck 2024 – Priority valve steel pipe fixing support – M1601-2716013360.S1C
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HY3A0M006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket 60*30*56 | 27160137531 | 1 |
| 2 | Single hole pipe clamp | 27160133691 | 1 |
| 3 | 1 | 27160134011 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 7 | Bolt GB5782-M8*60EpZn-8.8 | 4011000718 | 1 |
| 8 | Washer GB96.1-8EpZn-300HV | 4015000256 | 1 |
| 9 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
